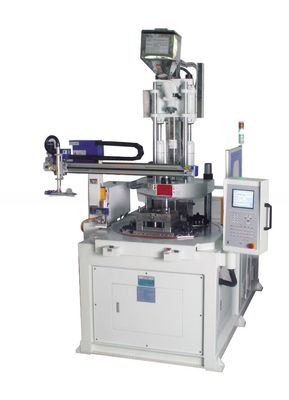

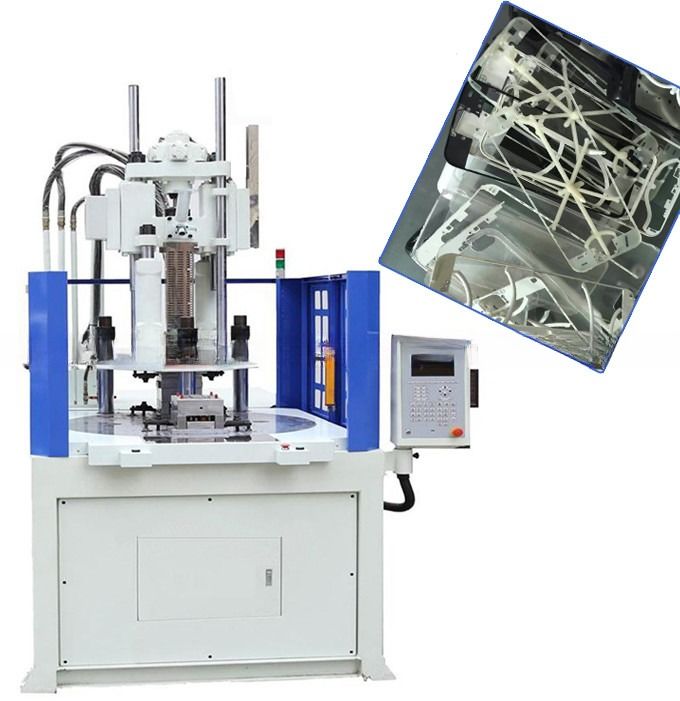

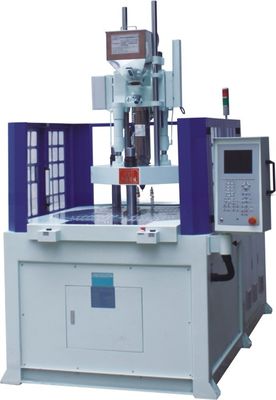

High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
Product Details:
| Place of Origin: | China |
| Brand Name: | JINTONG |
| Certification: | ISO9001 CE |
| Model Number: | JTT-2000R |
Payment & Shipping Terms:
| Price: | $62,000.00 - $66,000.00/pieces |
|---|---|
| Packaging Details: | plastic film packing for rotary vertical injection moulding machine |
| Supply Ability: | 400 Piece/Pieces per Month rotary vertical injection moulding machine |
|
Detail Information |
|||
| Plastic Processed: | PP, ABS, TPE | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Ejector Stroke(mm): | 75 Mm |
| Ejector Force(kN): | 48 KN | Theoretical Shot Volume(cm³): | 678 Cm³ |
| Injection Rate (g/s): | 212 G/s | Machine Type: | Hydraulic |
| Injection Weight (g): | 610 G | Screw Diameter (mm): | 60 Mm |
| Distance Between Tie Bars: | 760mm | Weight (KG): | 12000 |
| Type: | Screw Injection | Open Stroke(mm): | 600 Mm |
| Power (kW): | 44.3 KW | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | None | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Motor, PLC, Pressure Vessel | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support |
| Screw Diameter: | 50mm 55mm 60mm | Screw Stroke: | 260mm |
| Product Name: | Rotary Table Vertical Injection Moulding Machine JTT-2000R | Opening Force: | 22.4T |
| Rotary Table Diameter: | 1500mm | Max Daylight: | 700/760mm |
| Min Old Height: | 300/360mm | Ejector Force: | 3.4T |
| Machine Dimension(L*W*H): | 3.0*2.2*3.6m | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Local Service Location: | United States, Italy, France, Germany, Viet Nam, Brazil, Peru, Indonesia, Mexico, Russia, Thailand, Malaysia, Australia, Argentina, Colombia, Bangladesh, South Africa, Ukraine | Marketing Type: | Ordinary Product |
| Port: | SHENZHEN | ||
| Highlight: | Rotary Table Vertical Plastic Injection Moulding Machine,Vertical Plastic Injection Moulding Machine 200T |
||
Product Description
High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
Rotary table vertical plastic injection moulding machine 200T JTT-2000R
Clamping Force: 200T
Injection Weight: 456-662g
Vertical clamping, vertical injection
Easy to set torque , speed, deceleration distance and stand number segmentation
Computer programme control rotary table direction , forward-rotating, reverse-rotating, forward and reverse alternative rotating.
Optional energy-saving motor
Main Features
1) vertical clamping, vertical injection,
2) clamping force, injection weight and shot speed can be changed according to actual demand.
3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
