55T Vertical Plastic Injection Molding Machine 40mm Screw Diameter For 1.8T Ejector Force
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-550R |
Payment & Shipping Terms:
| Price: | $28,500.00/pieces 1-1 pieces |
|---|---|
| Packaging Details: | plastic film packing for good quality and high effiency rotary vertical injection molding machine |
| Supply Ability: | 600 Piece/Pieces per Month good quality rotary vertical injection molding machine |
|
Detail Information |
|||
| Plastic Processed: | PC, PA | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Ejector Stroke(mm): | 45 Mm |
| Ejector Force(kN): | 13 KN | Theoretical Shot Volume(cm³): | 160 Cm³ |
| Injection Rate (g/s): | 113 G/s | Machine Type: | Hydraulic |
| Injection Weight (g): | 140 G | Screw Diameter (mm): | 40 Mm |
| Distance Between Tie Bars: | 510mm | Weight (KG): | 2400 Kg |
| Type: | Other | Open Stroke(mm): | 400 Mm |
| Power (kW): | 12.8 KW | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | None | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Motor, Pump, PLC, Pressure Vessel | Opening Stroke: | 250MM |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Screw Diameter: | 30mm 35mm 40mm |
| Screw Stroke: | 135mm | Product Name: | Rotary Table Vertical Injection Molding Machine JTT-550R |
| Opening Force: | 8.9T | Rotary Table Diameter: | 1080mm |
| Max Daylight: | 450/510mm | Min Old Height: | 200/260 |
| Ejector Force: | 1.8T | Port: | SHENZHEN |
| Highlight: | 55T Vertical Plastic Injection Molding Machine,Vertical Plastic Injection Molding Machine 40mm |
||
Product Description
40mm Screw Diameter 55T Vertical Plastic Injection Molding Machine For 1.8T Ejector Force

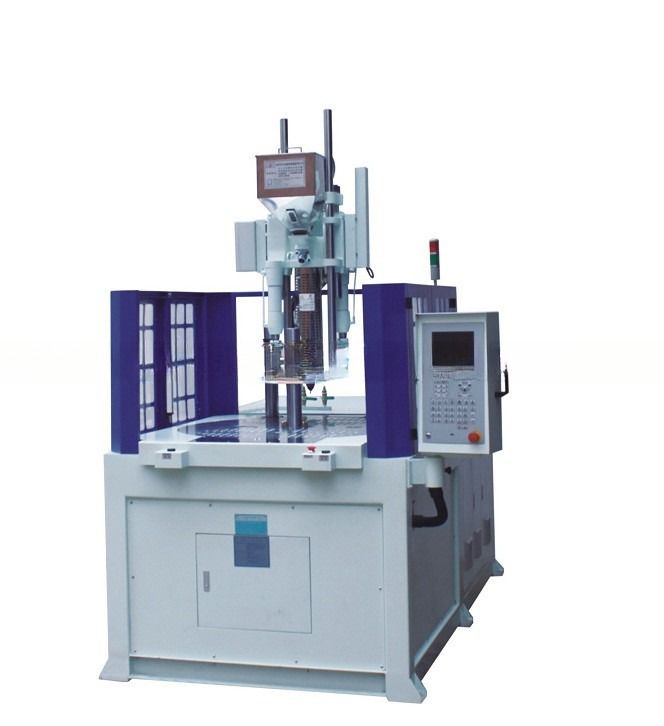

High efficiency vertical rotary injection molding machine JTT-550R
Clamping Force: 55T
Injection Weight: 80-141g
Vertical clamping, vertical injection
Easy to set torque , speed, deceleration distance and stand number segmentation
Computer programme control rotary table direction , forward-rotating, reverse-rotating, forward and reverse alternative rotating.
Optional energy-saving motor
Main Features
1) vertical clamping, vertical injection,
2) clamping force, injection weight and shot speed can be changed according to actual demand.
3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
