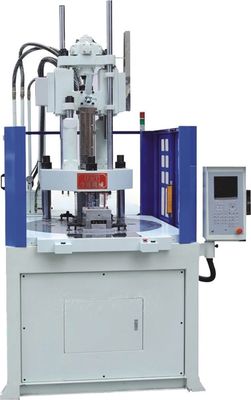

55T Rotary Vertical Injection Molding Machine Manufacturers With 35mm Screw Diameter
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-550R |
Payment & Shipping Terms:
| Price: | $19,000.00 - $21,000.00/pieces |
|---|---|
| Packaging Details: | plastic film packing for best seller rotary table plastic injection molding machine JTT-550R |
| Supply Ability: | 60 Piece/Pieces per Month best seller rotary injection molding machine JTT-550R |
|
Detail Information |
|||
| Plastic Processed: | PP, PC, ABS, PVC, PA | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 150 |
| Mold Height(mm): | 160 - 300 Mm | Ejector Number: | 2 |
| Ejector Stroke(mm): | 60 Mm | Ejector Force(kN): | 1.8 KN |
| Theoretical Shot Volume(cm³): | 170 Cm³ | Injection Rate (g/s): | 113 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 141 G |
| Screw Speed (rpm): | 0 - 215 Rpm | Screw Diameter (mm): | 40 Mm |
| Screw L/D Ratio: | 22 | Distance Between Tie Bars: | 510mm |
| Weight (KG): | 2400 Kg | Type: | Other |
| Open Stroke(mm): | 540 Mm | Power (kW): | 12.8 KW |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, PLC, Pressure Vessel |
| Screw Diameter: | 30mm 35mm 40mm | Screw Stroke: | 135mm |
| Product Name: | Best Seller Rotary Table Plastic Injection Molding Machine JTT-550R | Opening Force: | 8.9T |
| Rotary Table Diameter: | 1080mm | Max Daylight: | 450/510mm |
| Min Old Height: | 200/260 | Ejector Force: | 1.8T |
| Machine Dimension(L*W*H): | 1.8*1.8*2.85m | After-sales Service Provided: | Free Spare Parts |
| Port: | SHENZHEN | ||
| Highlight: | 55T Rotary Vertical Injection Molding Machine,Rotary Vertical Injection Molding Machine Manufacturers |
||
Product Description

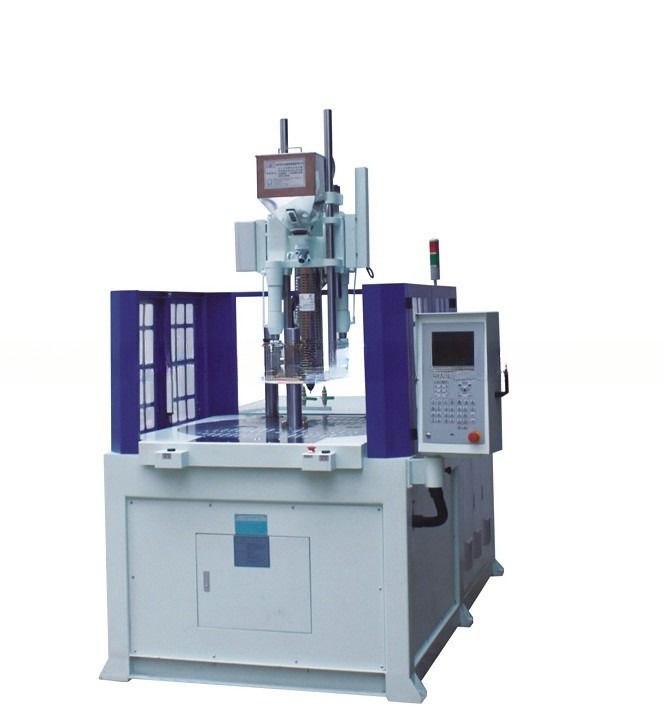

55T VERTICAL Rotary Table Plastic Injection Molding Machine With 35mm Screw Diameter
Best seller rotary table plastic injection molding machine JTT-550R
Clamping Force: 55T
Injection Weight: 80-141g
Vertical clamping, vertical injection
Easy to set torque , speed, deceleration distance and stand number segmentation
Computer programme control rotary table direction , forward-rotating, reverse-rotating, forward and reverse alternative rotating.
Optional energy-saving motor
Main Features
1) vertical clamping, vertical injection,
2) clamping force, injection weight and shot speed can be changed according to actual demand.
3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
