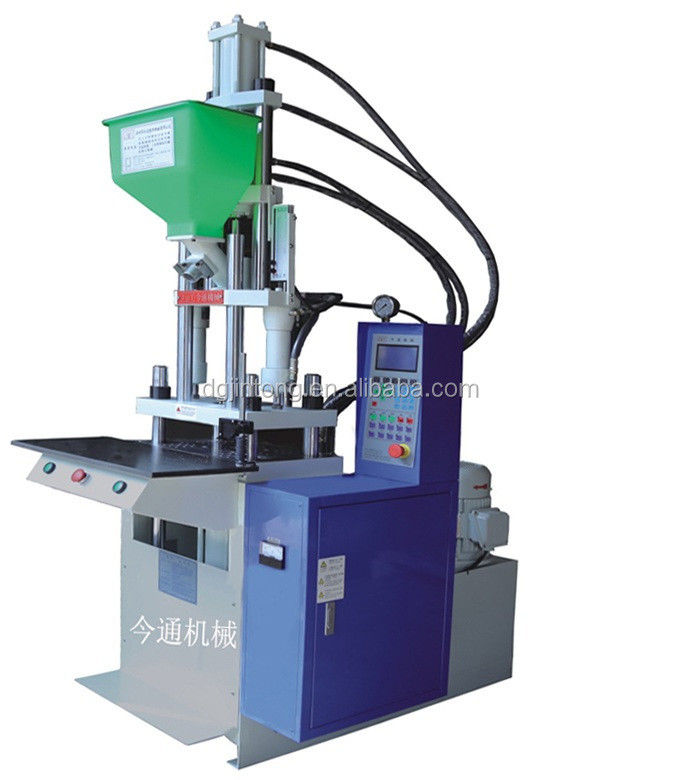

Small Mini Plastic Vertical Injection Moulding Machine 30 Ton 25mm Screw Diameter
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JT-250 |
Payment & Shipping Terms:
| Price: | $5,750.00/pieces 1-4 pieces |
|---|---|
| Packaging Details: | plastic film packing for Vertical Small mini Metal Injection Molding Machine price |
| Supply Ability: | 60 Piece/Pieces per Month Vertical Small mini Metal Injection Molding Machine price |
|
Detail Information |
|||
| Plastic Processed: | PP, PC, ABS, PVC | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Ejector Stroke(mm): | 35 Mm |
| Ejector Force(kN): | 13 KN | Theoretical Shot Volume(cm³): | 85 Cm³ |
| Injection Rate (g/s): | 80 G/s | Machine Type: | Hydraulic |
| Injection Weight (g): | 72 G | Screw Diameter (mm): | 32 Mm |
| Distance Between Tie Bars: | 340mm | Weight (KG): | 1100 Kg |
| Type: | Other | Open Stroke(mm): | 300 Mm |
| Power (kW): | 6.7kW | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | None | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Pump, PLC, Pressure Vessel | Injection Weight: | 29-72G |
| Injection Rate: | 30-80CM3/S | Opening Stroke: | 100MM |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Screw Diameter: | 20mm 25mm 30mm 32mm |
| Screw Stroke: | 100mm | Product Name: | Vertical Small Mini Metal Injection Molding Machine Price JT-250 |
| Opening Force: | 6.5T | Platen Size: | 520*370mm |
| Max Daylight: | 340/280mm | Port: | SHENZHEN |
| Highlight: | Mini Plastic Vertical Injection Moulding Machine,Plastic Vertical Injection Moulding Machine 30 Ton |
||
Product Description
25mm Screw Diameter Vertical Small Mini Metal Injection Molding Machine At Affordable
Vertical Small mini Metal Injection Molding Machine price JT-250
Clamping Force: 30T
Injection Weight: 29-72g
Vertical clamping, vertical injection
Small volum, suitablefor small and medium insert parts molding;
High shot pressure, fast shot rate, best choice for insert goods molding. Use famous brand accessories for electrical control and hydraulic system, low noise, precise, durable. Vertical screw injection system, multi-stage temperature control, multi-stage injection pressure and rate, back pressure adjustment, suitable for accurate plastic fittings molding.
Automatically display fault, easy to repair. Optional energy-saving motor; infrared safty device, automatic thermostatic device, leakproof spring nozzle, computer display, double proportion hydraulic controller.
|
|
Model
|
|
JT-150
|
|
injection system
|
Screw Diameter
|
mm
|
20 25
|
|
|
Injection Pressure
|
kg/cm2
|
1715 1098
|
|
|
Theoretical Shot Volume
|
cm3
|
31 49
|
|
|
Injection Rate
|
cm3/sec
|
20 30
|
|
|
Screw Stroke
|
mm
|
100
|
|
|
Screw Speed
|
rpm
|
0-215
|
|
|
Nozzle Contact Force
|
tons
|
-
|
|
|
Nozzle Stroke
|
mm
|
-
|
|
|
Number of Temperature Control
|
-
|
1+2
|
|
|
Hopper Capacity
|
L
|
15
|
|
clamping system
|
Clamping Force
|
tons
|
15
|
|
|
Opening Force
|
tons
|
7
|
|
|
Platen Size
|
mm
|
450x280
|
|
|
Distance Between Tie Bar
|
mm
|
265
|
|
|
Min Mold Height
|
mm
|
100/40
|
|
|
Opening Stroke
|
mm
|
160
|
|
|
Max Open Daylight
|
mm
|
260/200
|
|
|
Ejector Force
|
tons
|
1.3
|
|
|
Ejector Stroke
|
mm
|
35
|
|
oil pressure system
|
Max Hydraulic Pressure
|
kg/cm2
|
140
|
|
|
Pump Output
|
L/min
|
19.3
|
|
|
Oil Reservior Capacity
|
L
|
80
|
|
|
Cooling Water Consumption
|
/hr
|
400-600
|
|
|
Pump Moter Power
|
KW
|
4
|
|
|
Barrel Heating Power
|
kw
|
2
|
|
|
Total Power
|
kw
|
6
|
|
other
|
Machine Weight
|
tons
|
0.55
|
|
|
Machine Dimension
|
mm
|
1380*850*2100
|
Main Features
1) Vertical clamping, vertical injection, small volume, precise molding, available to small and medium hardware insert molding.
2)Vertical clamping,even pressure,accurate low-voltage protection,smooth injection and molding
3) Scalable computer programs, automatically removing, embedded devices, and other connections allow fully automatic operation of the whole machine.
4) Optional energy-saving motor
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
