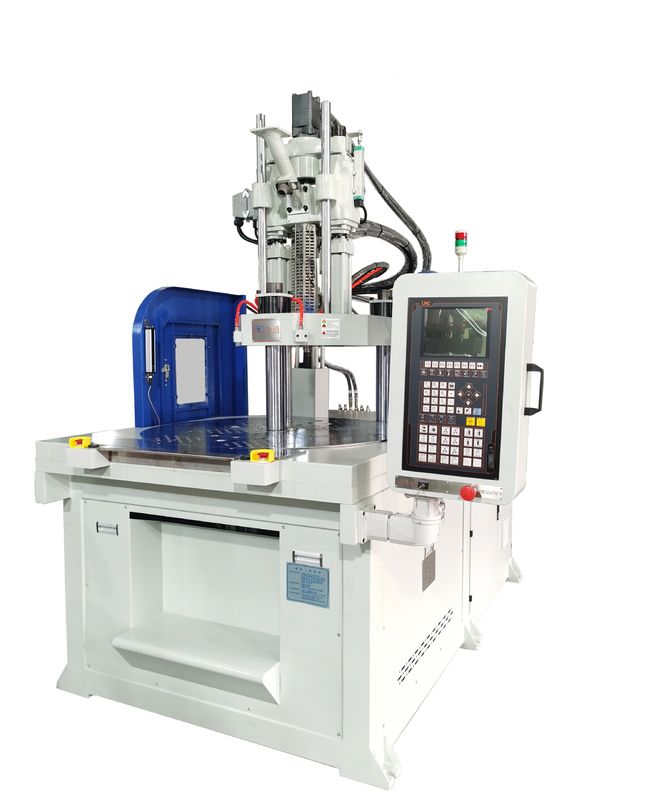

55T Rotary Vertical Injection Moulding Machine Plastic Processed
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-550R |
Payment & Shipping Terms:
| Price: | $28,500.00/pieces 1-2 pieces |
|---|---|
| Packaging Details: | plywood for rotary vertical injection molding machine in Guangdong factory |
| Supply Ability: | 600 Piece/Pieces per Month rotary vertical injection molding machine in Guangdong |
|
Detail Information |
|||
| Plastic Processed: | PVC, PE | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 100 |
| Mold Height(mm): | 110 - 400 Mm | Ejector Number: | 2 |
| Ejector Stroke(mm): | 45 Mm | Ejector Force(kN): | 13 KN |
| Theoretical Shot Volume(cm³): | 156 Cm³ | Injection Rate (g/s): | 113 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 141 G |
| Screw Speed (rpm): | 1 - 200 Rpm | Screw Diameter (mm): | 40 Mm |
| Screw L/D Ratio: | 23 | Distance Between Tie Bars: | 510mm |
| Weight (KG): | 2300 Kg | Type: | Other |
| Open Stroke(mm): | 400 Mm | Power (kW): | 12.8 KW |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, PLC, Pressure Vessel, Engine |
| After-sales Service Provided: | Free Spare Parts | After Warranty Service: | Video Technical Support |
| Product Name: | 55T Rotary Table Injection Molding Machine | Applicable Area: | Electrical Spare Parts |
| Port: | SHENZHEN | ||
| Highlight: | Rotary Vertical Injection Moulding Machine Plastic,55T Rotary Vertical Injection Moulding Machine |
||
Product Description
55T Vertical Plastic Injection Molding Machine With Rotary Table Offered By Guangdong
Product Description
Vertical rotary injection molding machine JTT-550R in Guangdong factory
Clamping Force: 55T
Injection Weight: 80-141g
Vertical clamping, vertical injection
Easy to set torque , speed, deceleration distance and stand number segmentation
Computer programme control rotary table direction , forward-rotating, reverse-rotating, forward and reverse alternative rotating.
Optional energy-saving motor
|
|
Model
|
|
JTT-550R
|
|
Injection system
|
Screw Diameter
|
mm
|
40
|
|
|
Injection Pressure
|
kg/cm2
|
1260
|
|
|
Theoretical Shot Volume
|
cm3
|
170
|
|
|
Injection Rate
|
cm3/sec
|
113
|
|
|
Screw Stroke
|
mm
|
140
|
|
|
Screw Speed
|
rpm
|
150
|
|
|
Heating Capacity
|
kw
|
5.3
|
|
Clamping system
|
Clamping Force
|
tons
|
55
|
|
|
Opening Force
|
tons
|
8.9
|
|
|
Min Mold Height
|
mm
|
200
|
|
|
Opening Stroke
|
mm
|
200
|
|
|
Max Open Daylight
|
mm
|
400
|
|
|
Mold Dimension
|
mm
|
370*450
|
|
|
Rotary Table Diameter
|
|
1080
|
|
|
Ejector Force
|
tons
|
1.8
|
|
|
Ejector Stroke
|
mm
|
60
|
|
Other
|
Motor Power
|
kw
|
7.5
|
|
|
Sliding Table Stroke
|
mm
|
—
|
|
|
Machine Dimension
|
m
|
2.6*1.8*2.85
|
|
|
Machine Weight
|
tons
|
3
|
Main Features
1) vertical clamping, vertical injection,
2) clamping force, injection weight and shot speed can be changed according to actual demand.
3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity
Certifications

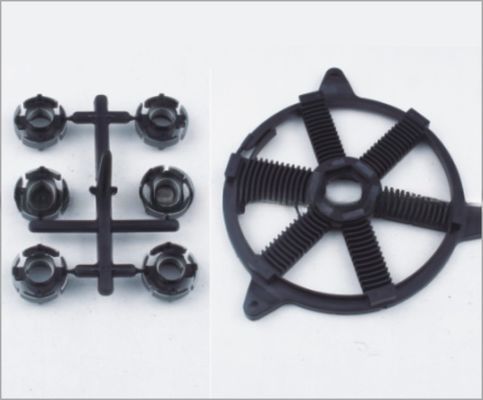

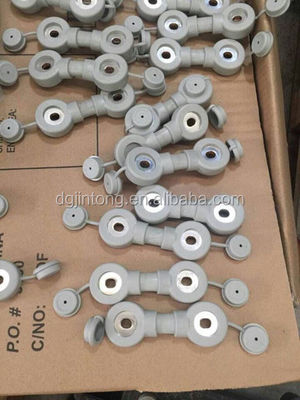

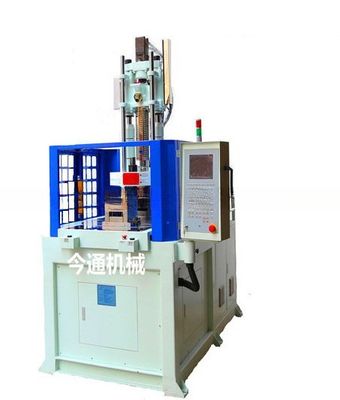

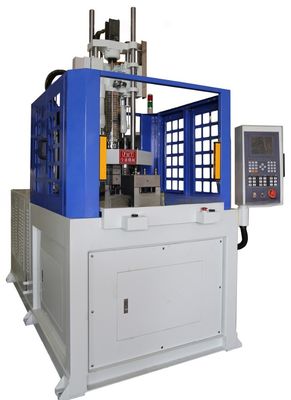

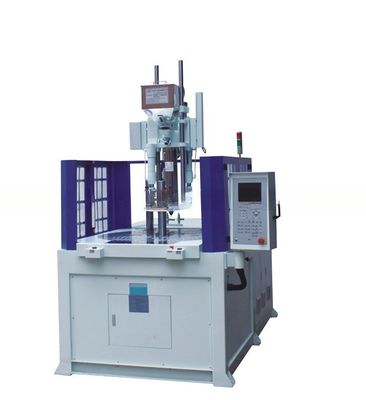

Detailed Images
Our Service
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
