Rotary Table Vertical 160 Ton Injection Moulding Machine JTT-1600R
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-1600R |
Payment & Shipping Terms:
| Price: | $56,000.00/pieces 1-4 pieces |
|---|---|
| Packaging Details: | plastic film packing for rotary vertical injection molding machine 160T |
| Supply Ability: | 400 Piece/Pieces per Month rotary vertical injection molding machine |
|
Detail Information |
|||
| Plastic Processed: | PC, PVC, PA | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Mold Height(mm): | 260 - 530 Mm |
| Ejector Stroke(mm): | 75 Mm | Ejector Force(kN): | 34 KN |
| Theoretical Shot Volume(cm³): | 570 Cm³ | Injection Rate (g/s): | 202 G/s |
| Plasticizing Capacity(g/s): | 400 | Machine Type: | Hydraulic |
| Injection Weight (g): | 513 G | Screw Speed (rpm): | 1 - 155 Rpm |
| Screw Diameter (mm): | 55 Mm | Screw L/D Ratio: | 28 |
| Distance Between Tie Bars: | 660mm | Weight (KG): | 7000 Kg |
| Type: | Screw Injection | Open Stroke(mm): | 500 Mm |
| Power (kW): | 22 KW | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | None | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Pump, PLC, Pressure Vessel | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Screw Diameter: | 45cm 50cm 55cm | Screw Stroke: | 240mm |
| Product Name: | Rotary Table Vertical Injection Molding Machine JTT-1600R | Opening Force: | 16.5T |
| Rotary Table Diameter: | 1400mm | Max Daylight: | 600/660mm |
| Min Old Height: | 250/310mm | Ejector Force: | 3.4T |
| Machine Dimension(L*W*H): | 2.8*2.1*3.4m | Port: | SHENZHEN |
| Highlight: | Rotary Table 160 Ton Injection Moulding Machine,Vertical 160 Ton Injection Moulding Machine |
||
Product Description

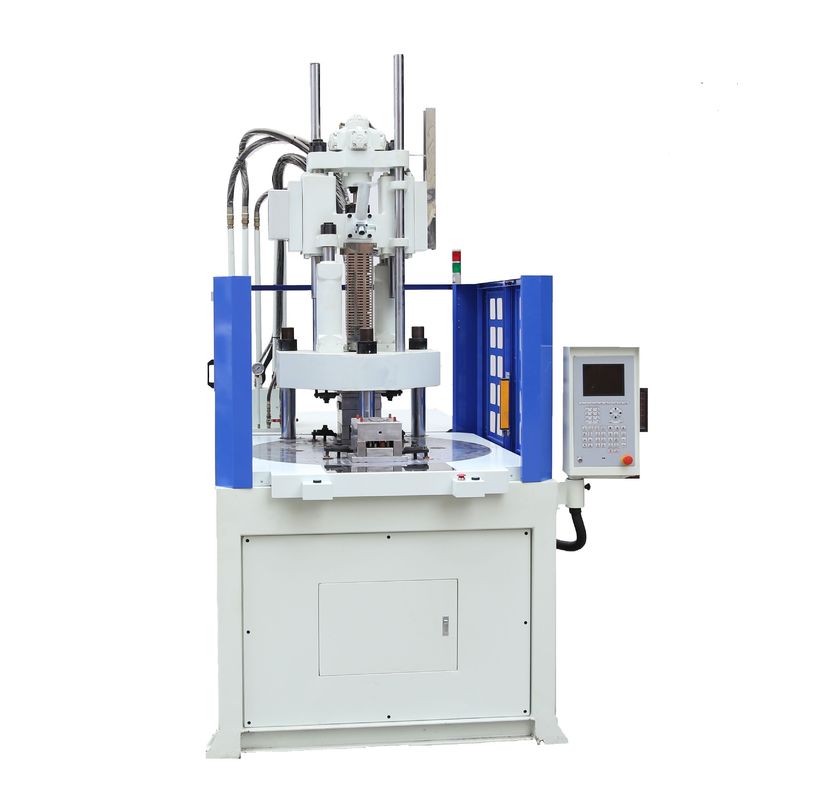

Vertical rotary injection molding machine JTT-1600R
Clamping Force: 160T
Injection Weight: 344-513g
Vertical clamping, vertical injection
Easy to set torque , speed, deceleration distance and stand number segmentation
Computer programme control rotary table direction , forward-rotating, reverse-rotating, forward and reverse alternative rotating.
Optional energy-saving motor
Main Features
1) vertical clamping, vertical injection,
2) clamping force, injection weight and shot speed can be changed according to actual demand.
3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity
PRODUCT ADVANTAGE

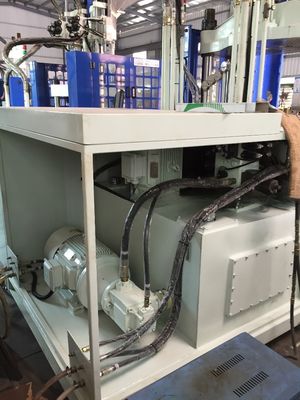

Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
