55T Hydraulic Plastic Vertical Moulding Machine Manufacturers
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-550D |
Payment & Shipping Terms:
| Price: | $15,500.00/pieces 1-2 pieces |
|---|---|
| Packaging Details: | plastic film packing for moving table vertical plastic injection molding machine 55T |
| Supply Ability: | 600 Piece/Pieces per Month moving table vertical plastic injection molding machine 55T |
|
Detail Information |
|||
| Plastic Processed: | PC, LCP | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Ejector Stroke(mm): | 75 Mm |
| Ejector Force(kN): | 33 KN | Theoretical Shot Volume(cm³): | 175 Cm³ |
| Injection Rate (g/s): | 90 G/s | Machine Type: | Hydraulic |
| Injection Weight (g): | 160 G | Screw Diameter (mm): | 40 Mm |
| Distance Between Tie Bars: | 460mm | Weight (KG): | 18000 Kg |
| Type: | Other | Open Stroke(mm): | 500 Mm |
| Power (kW): | 12kW | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | None | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Motor, Pump, PLC, Pressure Vessel, Engine | Opening Stroke: | 200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Screw Diameter: | 30mm 35mm 40mm |
| Screw Stroke: | 140mm | Product Name: | Moving Table Vertical Plastic Injection Molding Machine 55T JTT-550D |
| Opening Force: | 13.5T | Platen Size: | 650*490mm |
| Max Daylight: | 460/400mm | Min Old Height: | 260/200mm |
| Ejector Force: | 1.3T | Port: | SHENZHEN |
| Highlight: | 55T Vertical Moulding Machine Manufacturers,ISO Vertical Hydraulic Injection Moulding Machine,Plastic Vertical Moulding Machine Manufacturers |
||
Product Description
55T Vertical Plastic Injection Molding Machine For Manufacturing Plant At Competitive
Product Description

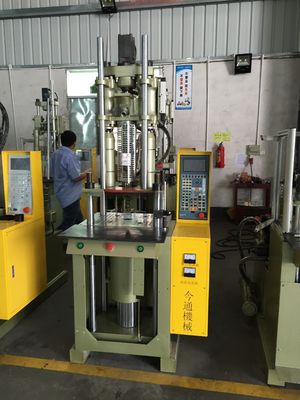

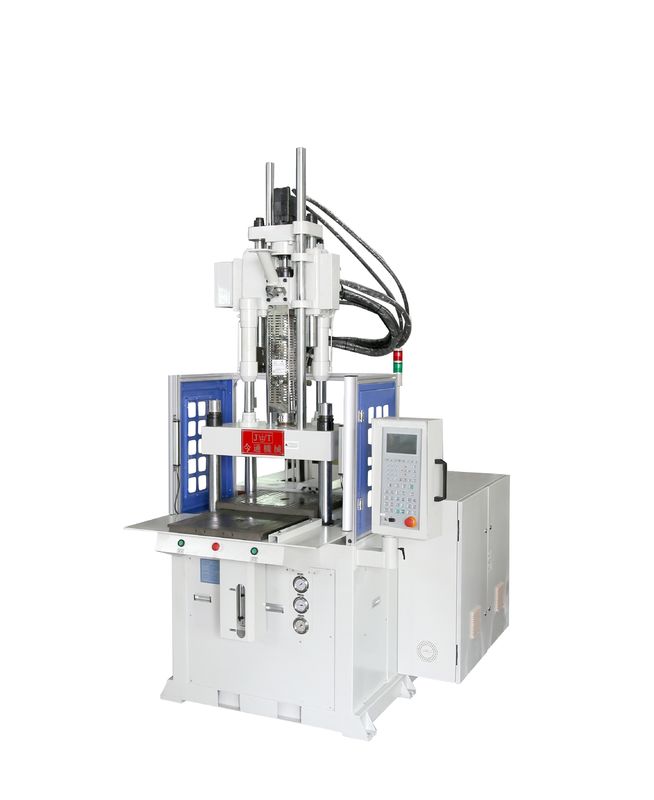

Moving table vertical plastic injection molding machine 55T JTT-550D
Clamping Force: 55T
Injection Weight: 90-160g
Vertical clamping, vertical injection
D—single slide table(one up die and one low die)
Single slide table offer operation convenience
Optional saving energy motor
Fixed low die and movable up die to avoid insert part shift; oil hydraulic unit under low die to ejector finshed products; ejector speed and stroke adjusted by actual demand
Combined with conveyor system used on production line
|
|
Model
|
|
JTT-550 D
|
|
injection system
|
Screw Diameter
|
mm
|
30 35 40
|
|
|
Injection Pressure
|
kg/cm2
|
2170 1594 1220
|
|
|
Theoretical Shot Volume
|
cm3
|
99 135 176
|
|
|
Injection Rate
|
cm3/sec
|
51 69 90
|
|
|
Screw Stroke
|
mm
|
140
|
|
|
Screw Speed
|
rpm
|
0-175
|
|
|
Nozzle Contact Force
|
tons
|
2.6
|
|
|
Nozzle Stroke
|
mm
|
200
|
|
|
Number of Temperature Control
|
-
|
3
|
|
|
Hopper Capacity
|
L
|
30
|
|
clamping system
|
Clamping Force
|
tons
|
55
|
|
|
Opening Force
|
tons
|
13.5
|
|
|
Platen Size
|
mm
|
650x490
|
|
|
Distance Between Tie Bar
|
mm
|
500x340
|
|
|
Min Mold Height
|
mm
|
260
|
|
|
Opening Stroke
|
mm
|
200
|
|
|
Max Open Daylight
|
mm
|
460
|
|
|
Ejector Force
|
tons
|
1.3
|
|
|
Ejector Stroke
|
mm
|
45
|
|
sliding system
|
Slide Stroke
|
mm
|
500
|
|
|
Max Mold Weight
|
kg
|
200
|
|
|
Station Clearance
|
mm
|
±0.02
|
|
oil pressure system
|
Max Hydraulic Pressure
|
kg/cm2
|
140
|
|
|
Pump Output
|
L/min
|
47
|
|
|
Oil Reservior Capacity
|
L
|
150
|
|
|
Cooling Water Consumption
|
/hr
|
800-1000
|
|
|
Pump Moter Power
|
KW
|
7.5
|
|
|
Barrel Heating Power
|
kw
|
4.5
|
|
|
Total Power
|
kw
|
12
|
|
|
Machine Weight
|
tons
|
2.4
|
|
|
Machine Dimension
|
mm
|
2.3*1.2*2.7
|
|
|
|
|
|
Main Features
With lower mold can slid out towards operation direction, inserts, placed parts and finished products are all finished outside the clamping unit. It works safely and suits for those inserts that are hard to place.

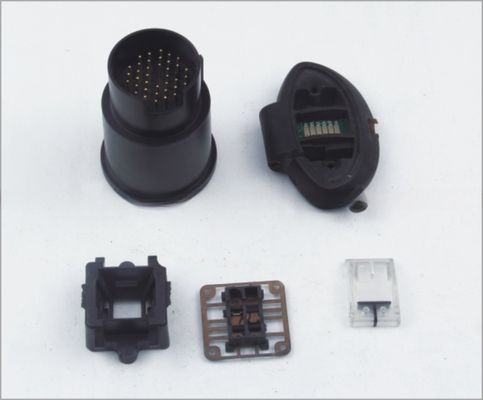

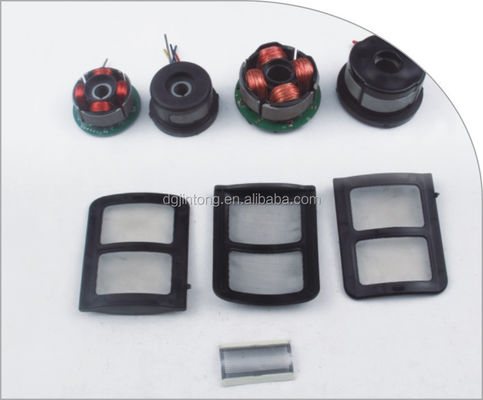

Suitable for all kinds of insert molding.
Nitrided steel screw and barrel, directly driven by high torque motor, with multi stages injection pressure, better plasticization.
Vertical compression clamping system, closing mold with high speed lower pressure as well as multi pressure control and prolong mold using life.
Electric protection device can not happen wrong action and maintain the operators safety.
Auto life injection base, it is easy for replacement of material and mold.
Certifications

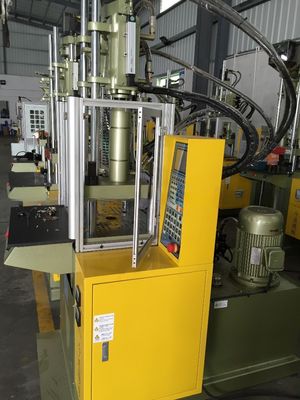

Detailed Images
Our Service
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
Packing & Delivery
