ABS Plastic Processed Hydraulic 120 Ton Injection Moulding Machine Vertical Rotary Table
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-1200R |
Payment & Shipping Terms:
| Price: | $32,000.00 - $40,000.00/pieces |
|---|---|
| Packaging Details: | plastic film packing for rotary table vertical injection molding machine |
| Supply Ability: | 600 Piece/Pieces per Month rotary table vertical injection molding machine |
|
Detail Information |
|||
| Plastic Processed: | PP, ABS | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 250 |
| Mold Height(mm): | 150 - 520 Mm | Ejector Number: | 2 |
| Ejector Stroke(mm): | 75 Mm | Ejector Force(kN): | 27 KN |
| Theoretical Shot Volume(cm³): | 410 Cm³ | Injection Rate (g/s): | 202 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 369 G |
| Screw Speed (rpm): | 1 - 220 Rpm | Screw Diameter (mm): | 50 Mm |
| Screw L/D Ratio: | 25 | Distance Between Tie Bars: | 620mm |
| Weight (KG): | 5500 Kg | Type: | Other |
| Open Stroke(mm): | 600 Mm | Power (kW): | 24.5 KW |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, PLC, Pressure Vessel |
| After-sales Service Provided: | Free Spare Parts | Product Name: | Rotary Table Vertical Injection Molding Machine 120T |
| Machine Color: | Grey Blue | Application: | Spare Parts On New Enery Vehicle |
| Marketing Type: | Ordinary Product | Port: | SHENZHEN |
| Highlight: | Hydraulic 120 Ton Injection Moulding Machine,120 Ton Injection Moulding Machine Vertical |
||
Product Description

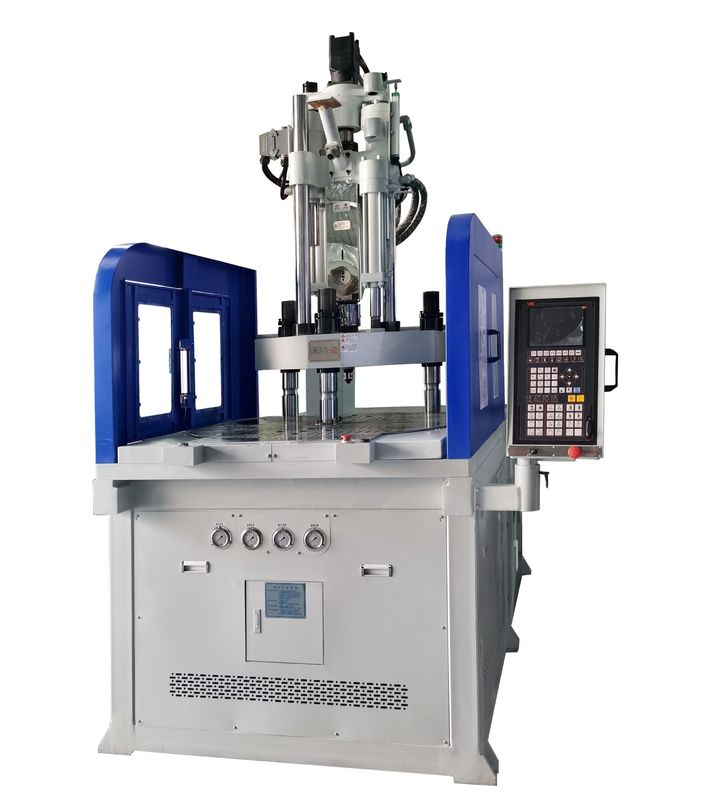

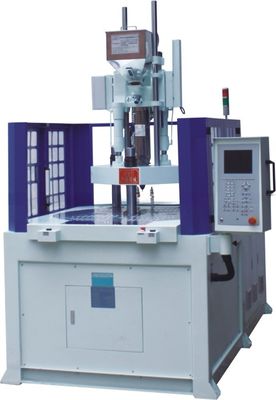

ABS Plastic Processed 120T Hydraulic Rotary Table Vertical Injection Molding Machine
Rotary table vertical injection molding machine JTT-1200R
Clamping Force: 120T
Injection Weight: 237-369g
Vertical clamping, vertical injection
Easy to set torque , speed, deceleration distance and stand number segmentation
Computer programme control rotary table direction , forward-rotating, reverse-rotating, forward and reverse alternative rotating.
Optional energy-saving motor
Main Features
1) vertical clamping, vertical injection,
2) clamping force, injection weight and shot speed can be changed according to actual demand.
3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
