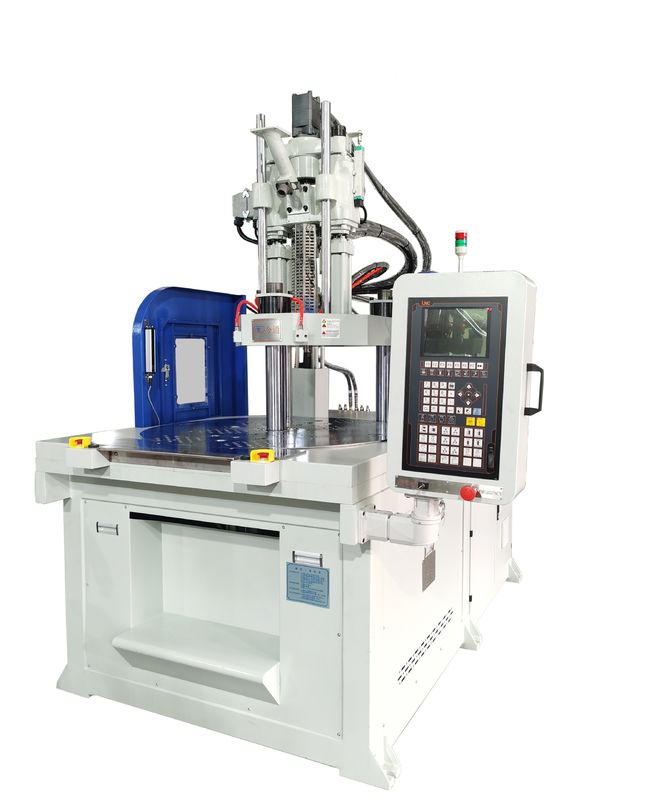

Rotary Table Vertical Plastic Injection Molding Machine 55T Clamping Force
Product Details:
| Place of Origin: | DONGGUAN |
| Brand Name: | JINTONG |
| Model Number: | JTT-550R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD21000--25000/PC |
| Packaging Details: | plywood case |
| Delivery Time: | 35 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100PCS/MONTH |
|
Detail Information |
|||
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support, Video Technical Support |
|---|---|---|---|
| Power(Kw): | 12.8 | Automatic: | Yes, Semi-auto |
| Certification: | CE ISO | Plastic Type: | Termoplastic |
| Clamping Force: | 55T | Warranty: | 1 Year Free Spare Parts, Life-spen Service |
| Keyword: | Rotary Table, 1pc Upper Mold 2pcs Lower Mold | ||
| Highlight: | Rotary Table Vertical Plastic Injection Molding Machine,Rotary Table Injection Molding Machine Vertical |
||
Product Description
Rotary Table Vertical Plastic Injection Molding Machine Made In Guangdong Factory 55T
Clamping Force: 55T
Injection Weight: 80-141g
Vertical clamping, vertical injection
Easy to set torque , speed, deceleration distance and stand number segmentation
Computer programme control rotary table direction , forward-rotating, reverse-rotating, forward and reverse alternative rotating.
Optional energy-saving motor
| Model | JTT-550R | ||
| injection system | Screw Diameter | mm | 40 |
| Injection Pressure | kg/cm2 | 1260 | |
| Theoretical Shot Volume | cm3 | 170 | |
| Injection Rate | cm3/sec | 113 | |
| Screw Stroke | mm | 140 | |
| Screw Speed | rpm | 150 | |
| Heating Capacity | kw | 5.3 | |
| clamping system | Clamping Force | tons | 55 |
| Opening Force | tons | 8.9 | |
| Min Mold Height | mm | 200 | |
| Opening Stroke | mm | 200 | |
| Max Open Daylight | mm | 400 | |
| Mold Dimension | mm | 370*450 | |
| Rotary Table Diameter | 1080 | ||
| Ejector Force | tons | 1.8 | |
| Ejector Stroke | mm | 60 | |
| other | Motor Power | kw | 7.5 |
| Machine Dimension | m | 2.6*1.8*2.85 | |
| Machine Weight | tons | 3 |
