Hotmelt PCB Low Pressure Injection Semi Auto Molding Machine
Product Details:
| Place of Origin: | DONGGUAN |
| Brand Name: | JINTONG |
| Certification: | CE ISO |
| Model Number: | JTT-100DR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD12500--14000/PC |
| Packaging Details: | plywood case |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20PCS/MONTH |
|
Detail Information |
|||
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support, Video Technical Support |
|---|---|---|---|
| Power(Kw): | 5.2 | Automatic: | Yes, Semi-auto |
| Certification: | CE ISO | Plastic Type: | Termoplastic |
| Clamping Force: | 1-5T | Warranty: | 1 Year Free Spare Parts, Life-spen Service |
| Keyword: | PCB Injection | ||
| Highlight: | PCB Low Pressure Injection Molding Machine,Hotmelt Low Pressure Injection Molding Machine,PCB low pressure injection moulding machine |
||
Product Description

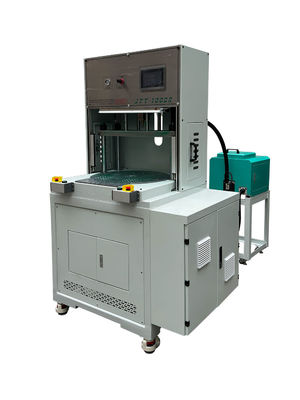

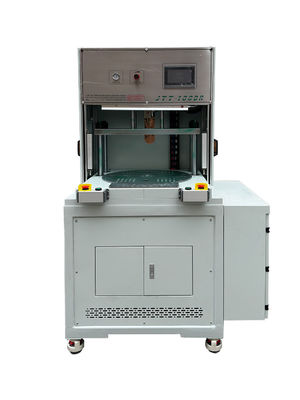

Hotmelt PCB Low Pressure Injection Molding Machine JTT-100DR
Clamping Force: 1-5T
horizontal/vertical injection system, vertical clamping system.
Nozzle connected to gear pump directly
Nozzle connected to melting tank, injection unit back and forward by air.
Melt tank made from aluminum alloy, precision machining then coated with Teflon, heating evenly and rapidly and clean easily.
Equipped with Eject system driven by air cylinder
Two PID thermal temperature control zones (Melting tank and nozzle)
Two tie bar design for molding small parts, operation easily.
380V voltage, Energy saving, low pollution and no oil leakage risk
| Model | JTT-100DR | ||
| injection system | cylinder Diameter/length | mm | Φ8x1500 |
| Injection Pressure | kg/cm2 | 1.5-4 | |
| Max shot weight | g | 2-50 | |
| Nozzle Stroke | mm | 50 | |
| Number of Temperature Control | - | 3 | |
| Hopper Capacity | L | 5 | |
| clamping system | Clamping Force | tons | 1-5 |
| Opening Force | tons | 0.4 | |
| Rotray table diameter | mm | 600 | |
| Max mold size | mm | square225*225 rectangle300*150 | |
| Min Mold Height | mm | 150 | |
| Opening Stroke | mm | 250-330(customized) | |
| Max Open Daylight | mm | 100-180(customized) | |
| Ejector Force | tons | 0.2 | |
| Ejector Stroke | mm | 50 | |
| air pressure electric system | Into the main pressure | kgf/cm2 | 5-7 |
| Voltage | V | 380 | |
| Motor power | kw | 1.7 | |
| Heating Power | kw | 3.5 | |
| Total power | KW | 5.2 | |
| other | Machine Weight | tons | 0.9 |
| Machine Dimension | m | 2.0x1.2x2.0 |
