8mm Screw Diameter Low Pressure Hot Glue Injection Molding Machine JTT-100 DR For PCB
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-100DR |
Payment & Shipping Terms:
| Price: | $13,000.00/pieces 1-2 pieces |
|---|---|
| Packaging Details: | plastic film packing for Low pressure hot glue injection molding machine JTT-100DR |
| Supply Ability: | 100 Piece/Pieces per Month Low pressure hot glue injection molding machine JTT-100DR |
|
Detail Information |
|||
| Plastic Processed: | HOTMELT GLUE | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 50 |
| Mold Height(mm): | 25 - 150 Mm | Ejector Number: | 1 |
| Ejector Stroke(mm): | 10 Mm | Ejector Force(kN): | 1 KN |
| Theoretical Shot Volume(cm³): | 100 Cm³ | Injection Rate (g/s): | 56 G/s |
| Machine Type: | Electric | Injection Weight (g): | 90 G |
| Screw Speed (rpm): | 0 - 100 Rpm | Screw Diameter (mm): | 8 Mm |
| Screw L/D Ratio: | 200 | Distance Between Tie Bars: | 240mm |
| Weight (KG): | 500 Kg | Type: | Screw Injection |
| Open Stroke(mm): | 150 Mm | Power (kW): | 3.4 KW |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Pump, PLC, Pressure Vessel, Engine |
| Cylinder Diameter: | 8*1600 | Injection Pressure: | 1.5-4 Kg/cm2 |
| Product Name: | Low Pressure Hot Glue Injection Molding Machine | Opening Force: | 0.4T |
| Min Old Height: | 20mm | Ejector Force: | 0.1T |
| Machine Dimension(L*W*H): | 0.9*1.6*1.9m | Plastic Type: | Hot Glue |
| After-sales Service Provided: | Free Spare Parts | Port: | SHENZHEN |
| Highlight: | Low Pressure Hot Glue Injection Molding Machine,Hot Glue Injection Molding Machine JTT-100 DR |
||
Product Description
8mm Screw Diameter Low Pressure Hot Glue Injection Molding Machine JTT-100 DR For PCB

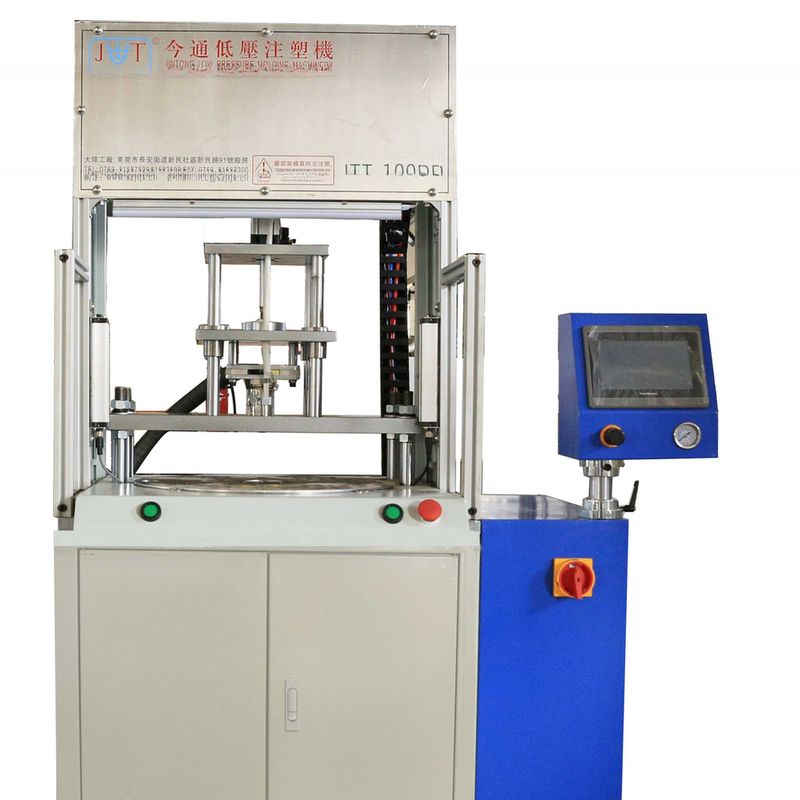

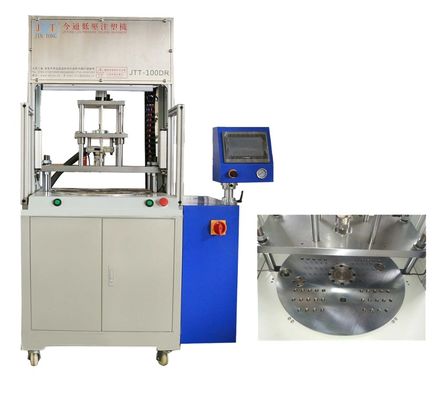

Low pressure hot glue injection molding machine JTT-100DR
Clamping Force: 1-10T
Vertical injection system, vertical clamping system.
Nozzle connected to gear pump directly
Nozzle connected to melting tank, injection unit back and forward by air.
Melt tank made from aluminum alloy, precision machining then coated with Teflon, heating evenly and rapidly and clean easily.
Equipped with Eject system driven by air cylinder
Two PID thermal temperature control zones (Melting tank and nozzle)
Two tie bar design for molding small parts, operation easily.
220V single phase voltage, Energy saving, low pollution and no oil leakage risk
|
|
Model
|
|
JTT-100DR
|
|
Injection system
|
cylinder Diameter/length
|
mm
|
Φ8*1600
|
|
|
Injection Pressure
|
kg/cm2
|
1.5-4
|
|
|
Max shot weight
|
g
|
80
|
|
|
Nozzle Stroke
|
mm
|
50
|
|
|
Gun Model&Tip angle
|
|
LPMS-Q-02 ☓ 1(36.4°)
|
|
|
Number of Temperature Control
|
-
|
1+2
|
|
|
Max Melting Temperature
|
°C
|
230
|
|
|
Hopper Capacity
|
L
|
10
|
|
Clamping system
|
Clamping Force
|
tons
|
1(standard) 10(max)
|
|
|
Clamping Device
|
|
Air over Oil
|
|
|
Opening Force
|
tons
|
0.4
|
|
|
rotary table diameter
|
mm
|
600
|
|
|
Max Mold Size
|
mm
|
300*200*150
|
|
|
Max Injected-part Size
|
mm
|
100*90*18
|
|
|
Min Mold Height
|
mm
|
20
|
|
|
Opening Stroke
|
mm
|
150
|
|
|
Max Open Daylight
|
mm
|
200
|
|
|
Ejector Force
|
tons
|
0.1
|
|
|
Ejector Stroke
|
mm
|
10
|
|
air pressure electric system
|
Into the main pressure
|
kgf/cm2
|
5-7
|
|
|
Voltage
|
V
|
220
|
|
|
Motor power
|
kw
|
1.7
|
|
|
Heating Power
|
kw
|
3.5
|
|
|
Working power
|
KW
|
5.2
|
|
Other
|
Working Station Height
|
m
|
1.13
|
|
|
Machine Weight
|
tons
|
0.8
|
|
|
Machine Dimension
|
m
|
1.6*1.3*1.68
|
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
