240mm Max Open Daylight Low Pressure Injection Moulding Machine JTT-200 Ejector Force 8kN
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-200 |
Payment & Shipping Terms:
| Price: | $14,700.00/pieces 1-2 pieces |
|---|---|
| Packaging Details: | plastic film packing for Low pressure hot glue injection molding machine JTT-200 |
| Supply Ability: | 60 Piece/Pieces per Month Low pressure hot glue injection molding machine JTT-200 |
|
Detail Information |
|||
| Plastic Processed: | HOTMELT GLUE | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 50 |
| Mold Height(mm): | 45 - 200 Mm | Ejector Number: | 1 |
| Ejector Stroke(mm): | 35 Mm | Ejector Force(kN): | 8 KN |
| Theoretical Shot Volume(cm³): | 100 Cm³ | Injection Rate (g/s): | 56 G/s |
| Machine Type: | Electric | Injection Weight (g): | 90 G |
| Screw Speed (rpm): | 0 - 100 Rpm | Screw Diameter (mm): | 8 Mm |
| Screw L/D Ratio: | 200 | Distance Between Tie Bars: | 240mm |
| Weight (KG): | 500 Kg | Type: | Screw Injection |
| Open Stroke(mm): | 300 Mm | Power (kW): | 3.4 KW |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Pressure Vessel, Engine |
| Opening Stroke: | 200MM | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Cylinder Diameter: | 8*1600 | Injection Pressure: | 1.5-4 Kg/cm2 |
| Product Name: | Low Pressure Hot Glue Injection Molding Machine | Opening Force: | 0.4T |
| Platen Size: | 240*360mm | Max Open Daylight: | 240mm |
| Min Old Height: | 20mm | Plastic Type: | Hot Glue |
| Port: | SHENZHEN | ||
| Highlight: | Low Pressure Injection Moulding Machine 8kN,Low Pressure Injection Moulding Machine JTT-200 |
||
Product Description
240mm Max Open Daylight Low Pressure Hot Glue Injection Molding Machine JTT-200 Ejector Force 8kN

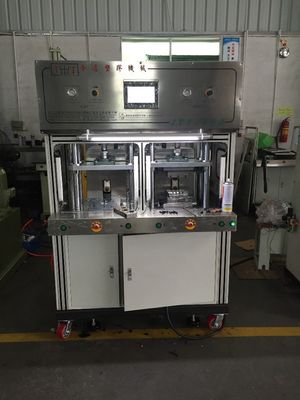

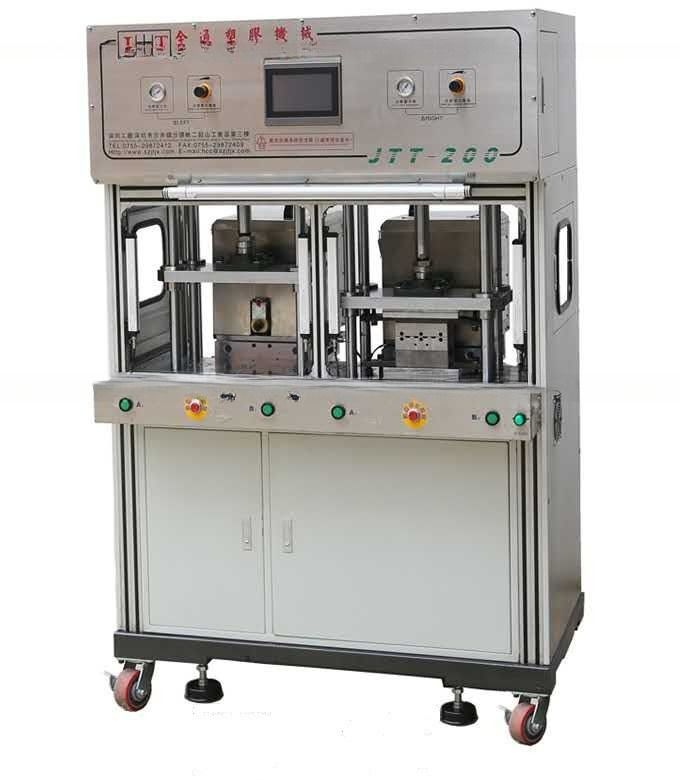

Low pressure hot glue injection molding machine JTT-200
Clamping Force: 1-10T
Vertical injection system, vertical clamping system.
Nozzle connected to gear pump directly
Nozzle connected to melting tank, injection unit back and forward by air.
Melt tank made from aluminum alloy, precision machining then coated with Teflon, heating evenly and rapidly and clean easily.
Equipped with Eject system driven by air cylinder
Two PID thermal temperature control zones (Melting tank and nozzle)

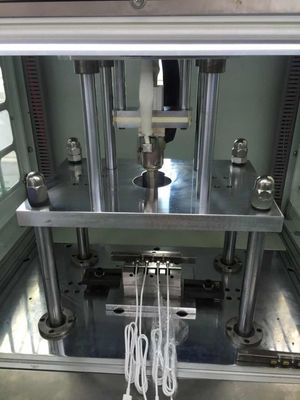

Two tie bar design for molding small parts, operation easily.
220V single phase voltage, Energy saving, low pollution and no oil leakage risk
|
|
Model
|
|
JTT-200
|
|
injection system
|
cylinder Diameter/length
|
mm
|
Φ8*1600
|
|
|
Injection Pressure
|
kg/cm2
|
1.5-4
|
|
|
Max shot weight
|
g
|
80
|
|
|
Nozzle Stroke
|
mm
|
100
|
|
|
Gun Model&Tip angle
|
|
LPMS-Q-02 ☓ 1(36.4°)
|
|
|
Number of Temperature Control
|
-
|
1+2
|
|
|
Max Melting Temperature
|
°C
|
230
|
|
|
Hopper Capacity
|
L
|
10
|
|
clamping system
|
Clamping Force
|
tons
|
1(standard) 10(max)
|
|
|
Clamping Device
|
|
Air over Oil
|
|
|
Opening Force
|
tons
|
0.4
|
|
|
rotary table diameter
|
mm
|
|
|
|
Max Mold Size
|
mm
|
300*200*150
|
|
|
Max Injected-part Size
|
mm
|
100*90*18
|
|
|
Min Mold Height
|
mm
|
20
|
|
|
Opening Stroke
|
mm
|
150
|
|
|
Max Open Daylight
|
mm
|
200
|
|
|
Ejector Force
|
tons
|
0.1
|
|
|
Ejector Stroke
|
mm
|
10
|
|
air pressure electric system
|
Into the main pressure
|
kgf/cm2
|
5-7
|
|
|
Voltage
|
V
|
220
|
|
|
Motor power
|
kw
|
0.4
|
|
|
Heating Power
|
kw
|
7
|
|
|
Working power
|
KW
|
7.4
|
|
other
|
Working Station Height
|
m
|
1.13
|
|
|
Machine Weight
|
tons
|
0.9
|
|
|
Machine Dimension
|
m
|
1.32*0.86*1.82 0.7*0.9*1.35
|
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
