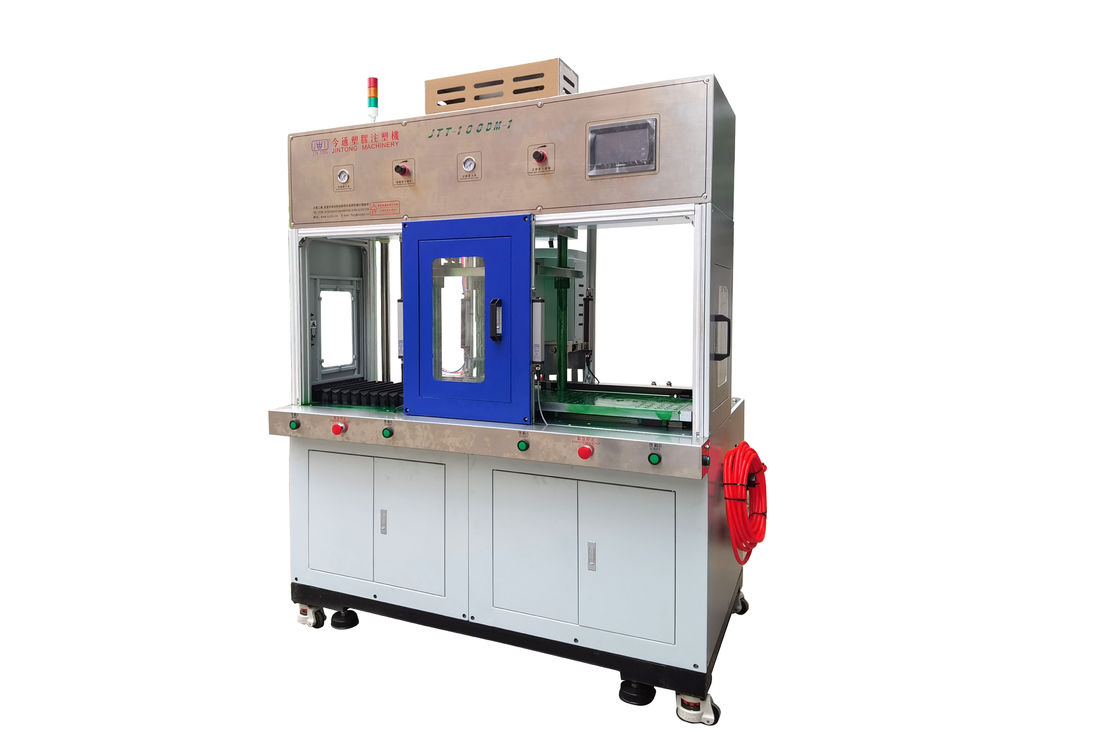

Hotmelt Low Pressure Injection Molding Machine 3.7KW With Double Slide Table JTT-100-DM
Product Details:
| Place of Origin: | DONGGUAN |
| Brand Name: | JINTONG |
| Model Number: | JTT-100DM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD11500--13000/PC |
| Packaging Details: | plywood case |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20PCS/MONTH |
|
Detail Information |
|||
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support, Video Technical Support |
|---|---|---|---|
| Power(Kw): | 3.7 | Automatic: | Yes, Semi-auto |
| Certification: | CE ISO | Plastic Type: | Termoplastic |
| Clamping Force: | 1-10T | Warranty: | 1 Year Free Spare Parts, Life-spen Service |
| Keyword: | PCB Injection | ||
| Highlight: | Hotmelt Low Pressure Injection Molding Machine,Low Pressure Injection Molding Machine 3.7KW |
||
Product Description
Hotmelt Low Pressure Injection Molding Machine With Double Slide Table JTT-100-DM
Clamping Force: 1-10T
horizontal injection system, vertical clamping system.
Nozzle connected to gear pump directly
Nozzle connected to melting tank, injection unit back and forward by air.
Melt tank made from aluminum alloy, precision machining then coated with Teflon, heating evenly and rapidly and clean easily.
Equipped with Eject system driven by air cylinder
Two PID thermal temperature control zones (Melting tank and nozzle)
Two tie bar design for molding small parts, operation easily.
220V single phase voltage, Energy saving, low pollution and no oil leakage risk
| Model | JTT-100-DM | |
| cylinder Diameter/length | mm | Φ8*1600 |
| Injection Pressure | kg/cm2 | 1.5-4 |
| Max shot weight | g | 80 |
| Nozzle Stroke | mm | 50 |
| Gun Model&Tip angle | LPMS-Q-02 ☓ 1(36.4°) | |
| Number of Temperature Control | - | 1+2 |
| Max Melting Temperature | °C | 230 |
| Hopper Capacity | L | 10 |
| Clamping Force | tons | 1(standard) 10(max) |
| Clamping Device | Air over Oil | |
| Opening Force | tons | 0.4 |
| rotary table diameter | mm | |
| Max Mold Size | mm | 300*200*150 |
| Max Injected-part Size | mm | 100*90*18 |
| Min Mold Height | mm | 20 |
| Opening Stroke | mm | 150 |
| Max Open Daylight | mm | 200 |
| Ejector Force | tons | 0.1 |
| Ejector Stroke | mm | 10 |
| Into the main pressure | kgf/cm2 | 5-7 |
| Voltage | V | 220 |
| Motor power | kw | 0.2 |
| Heating Power | kw | 3.5 |
| Working power | KW | 3.7 |
| Working Station Height | m | 1.13 |
| Machine Weight | tons | 0.7 |
| Machine Dimension | m | 1.55*1.23*1.9 |
