200mm Distance Between Tie Bars Low Pressure Plastic Injection Moulding Machine JTT-100
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Certification: | ISO9001 CE |
| Model Number: | JTT-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $5,200.00 - $8,000.00/pieces |
| Packaging Details: | plastic film packing for Chinese low pressure plastic injection molding machine price JTT-100 |
| Supply Ability: | 600 Piece/Pieces per Month Chinese low pressure plastic injection molding machine price |
|
Detail Information |
|||
| Plastic Processed: | Hot Glue | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Ejector Stroke(mm): | 35 Mm |
| Ejector Force(kN): | 8 KN | Theoretical Shot Volume(cm³): | 100 Cm³ |
| Injection Rate (g/s): | 80 G/s | Machine Type: | Electric |
| Injection Weight (g): | 90 G | Screw Diameter (mm): | 8 Mm |
| Distance Between Tie Bars: | 200mm | Weight (KG): | 600 |
| Type: | Cylinder Injection | Open Stroke(mm): | 300 Mm |
| Power (kW): | 3.4 KW | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | None | Machinery Test Report: | Provided |
| Product Name: | Low Pressure Plastic Injection Molding Machine | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Pressure Vessel, Engine |
| Opening Stroke: | 150MM | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support |
| Cylinder Diameter: | 8*1600 | Injection Pressure: | 1.5-4 Kg/cm2 |
| Opening Force: | 0.4T | Platen Size: | 220*330mm |
| Max Open Daylight: | 200mm | Min Old Height: | 20mm |
| Plastic Type: | Hot Glue | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Local Service Location: | United States, Italy, France, Germany, Viet Nam, Brazil, Peru, Indonesia, India, Mexico, Russia, Thailand, Malaysia, Argentina, Colombia, Bangladesh, South Africa, Ukraine | Marketing Type: | Ordinary Product |
| Port: | SHENZHEN | ||
| Highlight: | Low Pressure Plastic Injection Moulding Machine,Plastic Injection Moulding Machine JTT-100 |
||
Product Description

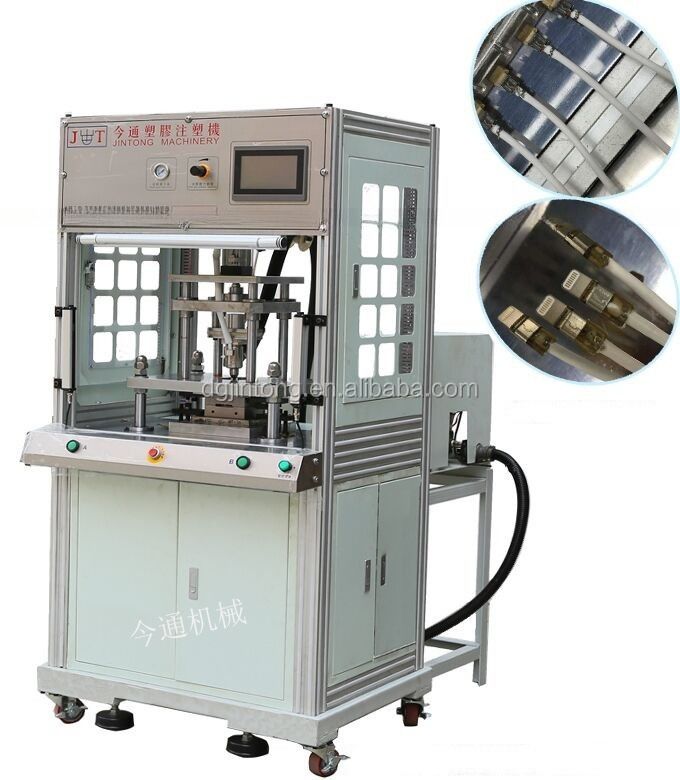

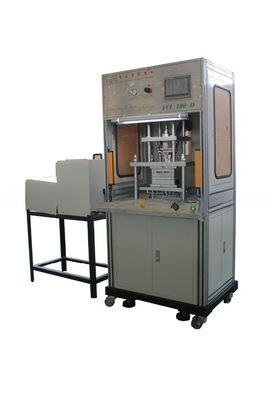

200mm Distance Between Tie Bars Low Pressure Plastic Injection Molding Machine JTT-100
Chinese low pressure plastic injection molding machine price JTT-100
Clamping Force: 1-10T
Vertical injection system, vertical clamping system.
Nozzle connected to gear pump directly
Nozzle connected to melting tank, injection unit back and forward by air.
Melt tank made from aluminum alloy, precision machining then coated with Teflon, heating evenly and rapidly and clean easily.
Equipped with Eject system driven by air cylinder
Two PID thermal temperature control zones (Melting tank and nozzle)
Two tie bar design for molding small parts, operation easily.
220V single phase voltage, Energy saving, low pollution and no oil leakage risk
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
