Electric Vertical Semi Auto Low Pressure Injection Molding Machine PLC
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTH-150DR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $10,000.00/pieces 1-2 pieces |
| Packaging Details: | plywood crate for low pressure horizontal injection molding machine hot melt adhesive JTT-100DL |
| Supply Ability: | 600 Piece/Pieces per Month low pressure horizontal injection molding machine hot melt |
|
Detail Information |
|||
| Plastic Processed: | Hot Melt Adhesive | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 70 |
| Ejector Stroke(mm): | 35 Mm | Ejector Force(kN): | 5 KN |
| Theoretical Shot Volume(cm³): | 85 Cm³ | Injection Rate (g/s): | 25 G/s |
| Machine Type: | Electric | Injection Weight (g): | 72 G |
| Screw Diameter (mm): | 8 Mm | Distance Between Tie Bars: | 200mm |
| Type: | Cylinder Injection | Open Stroke(mm): | 300 Mm |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, PLC, Pressure Vessel |
| Opening Stroke: | 150MM | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Cylinder Diameter: | 8*1500 | Injection Pressure: | 1.5-4 Kg/cm2 |
| Product Name: | Low Pressure Injection Molding Machine Hot Melt Adhesive | Opening Force: | 0.4T |
| Max Open Daylight: | 200mm | Min Old Height: | 20mm |
| Ejector Force: | 0.1T | ||
| Highlight: | Electric low pressure injection molding machine,Plc low pressure injection molding machine,Semi Auto low pressure molding machine |
||
Product Description
Low Pressure Hot Melt Injection Molding Machine JTT-100-DLZ For Manufacturing Plant

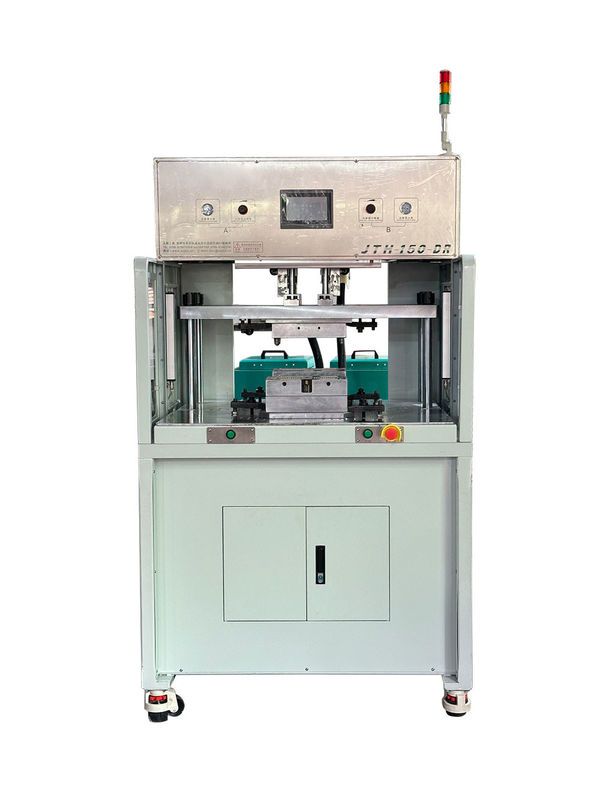

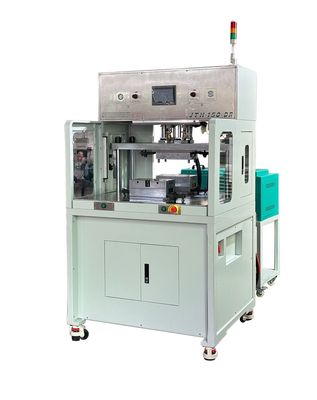

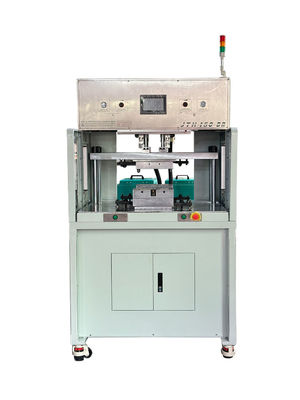

Hot Melt adhesive glue two color Injection Molding Machine JTH-150DR
Clamping Force: 1-5T
Vertical injection system, vertical clamping system.
Integrated melting tank with machine
Hot melt adhensive begins from gear pump, pass valves to nozzle
Nozzle connected to melting tank, injection unit back and forward by air.
Melt tank made from aluminum alloy, precision machining then coated with Teflon, heating evenly and rapidly and clean easily.
Equipped with Eject system driven by air cylinder
Two PID thermal temperature control zones (Melting tank and nozzle)
Two tie bar design for molding small parts, operation easily.
380V , Energy saving, low pollution and no oil leakage risk
| Model | JTH-150DR | ||
| injection system | cylinder Diameter/length | mm | A B |
| Injection Pressure | kg/cm2 | Φ8x1500 Φ8x1500 | |
| Max shot weight | g | 1.5-4 1.5-4 | |
| Nozzle Stroke | mm | 2-50 2-50 | |
| Hopper Capacity | L | 50 50 | |
| clamping system | Clamping Force | tons | 1---5 |
| Opening Force | tons | 0.4 | |
| Platen Size | mm | 600 | |
| Distance Between Tie Bar | mm | 300x150 | |
| Min Mold Height | mm | 150 | |
| Opening Stroke | mm | 250-330(customized) | |
| Max Open Daylight | mm | 100-180(customized) | |
| Ejector Force | tons | 0.2 | |
| Ejector Stroke | mm | 50 | |
| air pressure electric system | Into the main pressure | kgf/cm2 | 5-7 |
| Voltage | V | 380 | |
| Motor power | kw | 0.2 | |
| Heating Power | kw | 3 | |
| Total power | KW | 6.8 | |
| other | Machine Weight | tons | 1.8 |
| Machine Dimension | m | 1.06x1.18x1.7 |
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
