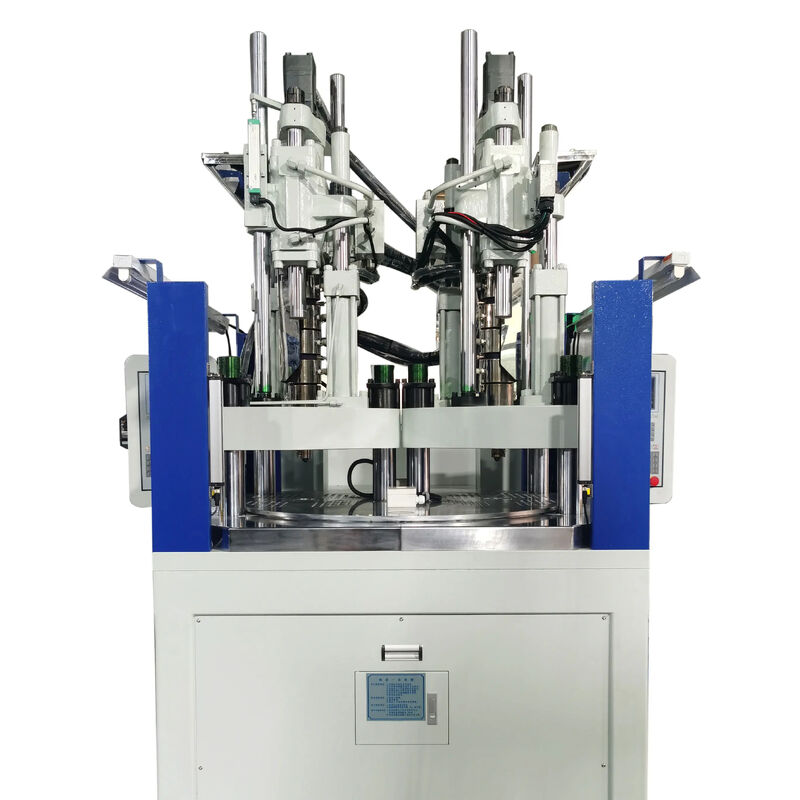

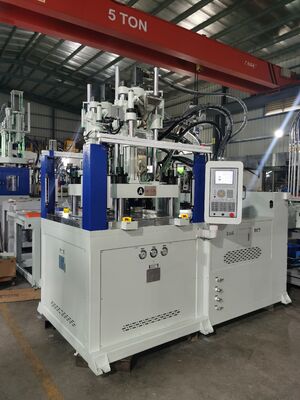

TR Glasses Spectacle Frame Two Color Vertical Injection Molding Machine 170T with PLC Pump Motor & Bearing for PA Processing
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-1700-2V2R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $59,000-61,000 |
|
Detail Information |
|||
| Plastic Processed: | PA, TR | Style: | VERTICAL |
|---|---|---|---|
| Plasticizing Capacity(g/s): | 230 | Mold Height(mm): | 160 - 400 Mm |
| Ejector Number: | Other | Ejector Stroke(mm): | 75 |
| Ejector Force(kn): | 27 | Theoretical Shot Volume(cm³): | 145 |
| Injection Rate (g/s): | 120 | Machine Type: | Hydraulic |
| Injection Weight (g): | 130 | Screw Speed (rpm): | 1 - 300 Rpm |
| Screw Diameter (mm): | 25 | Screw L/D Ratio: | 24 |
| Distance Between Tie Bars: | 570mm | Weight (kg): | 9000 |
| Open Stroke(mm): | 400 | Power (kw): | 45.2 |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Core Components: | Bearing, Motor, Pump, PLC, Pressure Vessel, Screw | Opening Stroke: | 270MM |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Screw Diameter: | 25MM |
| Oil Tank: | 800L | Product Name: | TR Glasses Spectacle Frame Two Color Injection Molding Machine 170T |
| Rotary Table Diameter: | 1080mm | Max Daylight: | 550mm |
| Min Old Height: | 250mm | Ejector Force: | 2.7T |
| Highlight: | 170T vertical injection molding machine,PLC pump motor injection molding machine,PA processing spectacle frame machine |
||
Product Description
Get the Hightlights
- Vertical clamping, vertical injection, easy to change color or material, well mixed, rapid temperature rise
- Clamping force: 170T
- Different injection combination can be chosen to reach best productivity and less power loss according to different shot weight
- One molding for dual-color/material embeded products, multi-sation rotary design, stable rotation, precise position, easy to put and pick out products
- Injection system can be used individually
- two color/material inject at the same time, suitable for all kinds of mold
- samples: tooth brush, trademark, different kinds of accessories,handle of bicycle or electric vehicles
DETAIL SHOT
ABOUT THE SUPPLIER
Dongguan Jintong Plastic Machinery Co., Ltd. specializes in vertical injection molding machines, offering advanced solutions for diverse industries. With 2000T clamping force capabilities and proprietary IP, the company delivers high productivity, precision, and reliability. Certified to European standards, Jintong provides comprehensive service and export solutions across Southeast Asia, Europe, and South America.
COMPANY OVERVIEW
COMPETITIVE ADVANTAGES
FACTORY PROFILE
CUSTOMIZATION CAPABILITIES
PRODUCTION WORKFLOW
TRADE SHOW PARTICIPATION
PACKAGING & SHIPPING SPECIFICATIONS
FAQs
Q: Are you trading company or factory?
A: We are factory to produce vertical injection molding machine more than 20 years.
Q: What is your machine warranty period?
A: 1 year against BL on board time
