30T Plastic Vertical Injection Moulding Machine 6.7kW With 13 KN Ejector Force Low Maintenance
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JT-250 HS |
Payment & Shipping Terms:
| Price: | $9,600.00/pieces 1-2 pieces |
|---|---|
| Packaging Details: | plywood case for 2021 new design vertical injection moulding machine 30T |
| Supply Ability: | 600 Piece/Pieces per Month 2021 new design vertical injection moulding machine 30T |
|
Detail Information |
|||
| Plastic Processed: | PP, ABS, PVC, PE | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 60 |
| Mold Height(mm): | 110 - 230 Mm | Ejector Number: | 1 |
| Ejector Stroke(mm): | 35 Mm | Ejector Force(kN): | 13 KN |
| Theoretical Shot Volume(cm³): | 85 Cm³ | Injection Rate (g/s): | 80 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 72 G |
| Screw Speed (rpm): | 1 - 205 Rpm | Screw Diameter (mm): | 32 Mm |
| Screw L/D Ratio: | 22 | Distance Between Tie Bars: | 340mm |
| Weight (KG): | 1100 Kg | Type: | Other |
| Open Stroke(mm): | 280 Mm | Power (kW): | 6.7kW |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Pump, Pressure Vessel |
| Injection Rate: | 30-80CM3/S | Opening Stroke: | 100MM |
| Screw Diameter: | 20mm 25mm 30mm 32mm | Screw Stroke: | 100mm |
| Opening Force: | 6.5T | Platen Size: | 520*370mm |
| Max Daylight: | 280mm | After-sales Service Provided: | Free Spare Parts |
| After Warranty Service: | Video Technical Support | Marketing Type: | Ordinary Product |
| Port: | SHENZHEN | ||
| Highlight: | 30T Plastic Vertical Injection Moulding Machine,Plastic Vertical Injection Moulding Machine 6.7kW,Vertical Injection Moulding Machine Low Maintenance |
||
Product Description

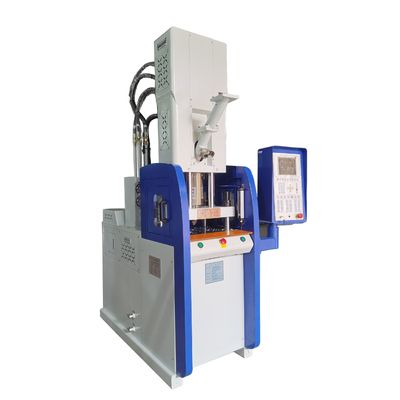

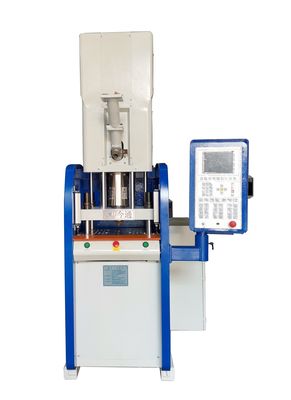

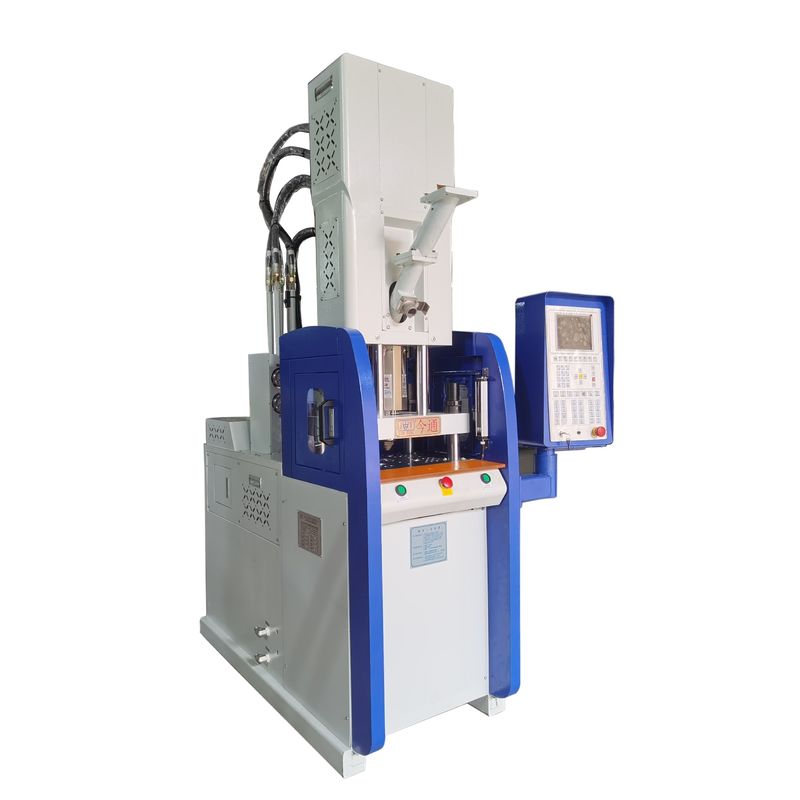

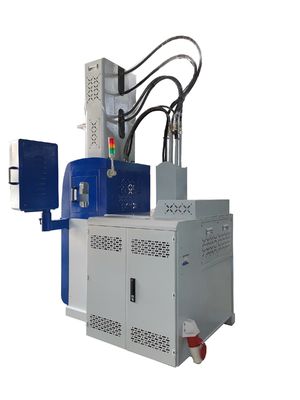

30T Vertical Injection Moulding Machine With 13 KN Ejector Force And Low Maintenance
BMC machine
85T machine
small machine
2021new design injection moulding machine 30T JT-250 HS
Clamping Force: 30T
Injection Weight: 29-72g
Vertical clamping, vertical injection
Small volum, suitablefor small and medium insert parts molding;
High shot pressure, fast shot rate, best choice for insert goods molding. Use famous brand accessories for electrical control and hydraulic system, low noise, precise, durable. Vertical screw injection system, multi-stage temperature control, multi-stage injection pressure and rate, back pressure adjustment, suitable for accurate plastic fittings molding.
Automatically display fault, easy to repair. Optional energy-saving motor; infrared safty device, automatic thermostatic device, leakproof spring nozzle, computer display, double proportion hydraulic controller.
Main Features
1) Vertical clamping, vertical injection, small volume, precise molding, available to small and medium hardware insert molding.
2)Vertical clamping,even pressure,accurate low-voltage protection,smooth injection and molding
3) Scalable computer programs, automatically removing, embedded devices, and other connections allow fully automatic operation of the whole machine.
4) Optional energy-saving motor
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
