Small Size 20T Plastic Vertical Injection Moulding Machine Manufacturers With 0 Mm Open Stroke
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JT-200 |
Payment & Shipping Terms:
| Price: | $4,300.00/pieces 1-2 pieces |
|---|---|
| Packaging Details: | plastic film packing for 2017 small size vertical plastic injection moulding machine 20T |
| Supply Ability: | 600 Piece/Pieces per Month 2017 small size vertical plastic injection moulding machine 20T |
|
Detail Information |
|||
| Plastic Processed: | PP, PVC, PE | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Ejector Stroke(mm): | 35 Mm |
| Ejector Force(kN): | 13 KN | Theoretical Shot Volume(cm³): | 64 Cm³ |
| Injection Rate (g/s): | 38 G/s | Machine Type: | Hydraulic |
| Injection Weight (g): | 56 G | Screw Diameter (mm): | 28 Mm |
| Distance Between Tie Bars: | 260mm | Weight (KG): | 700 Kg |
| Type: | Other | Open Stroke(mm): | 0 Mm |
| Power (kW): | 6 KW | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | None | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Pump, PLC, Pressure Vessel | Opening Stroke: | 180MM |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Screw Diameter: | 20mm 22 Mm 25mm 28mm |
| Screw Stroke: | 100mm | Product Name: | 2017 Small Size Vertical Plastic Injection Moulding Machine JT-200 |
| Opening Force: | 7T | Platen Size: | 460*310mm |
| Max Daylight: | 220/260mm | Min Old Height: | 40/100mm |
| Ejector Force: | 1.3T | Port: | SHENZHEN |
| Highlight: | Small Size Plastic Vertical Injection Moulding Machine,20T Plastic Vertical Injection Moulding Machine,Plastic Vertical Injection Moulding Machine Manufacturers |
||
Product Description

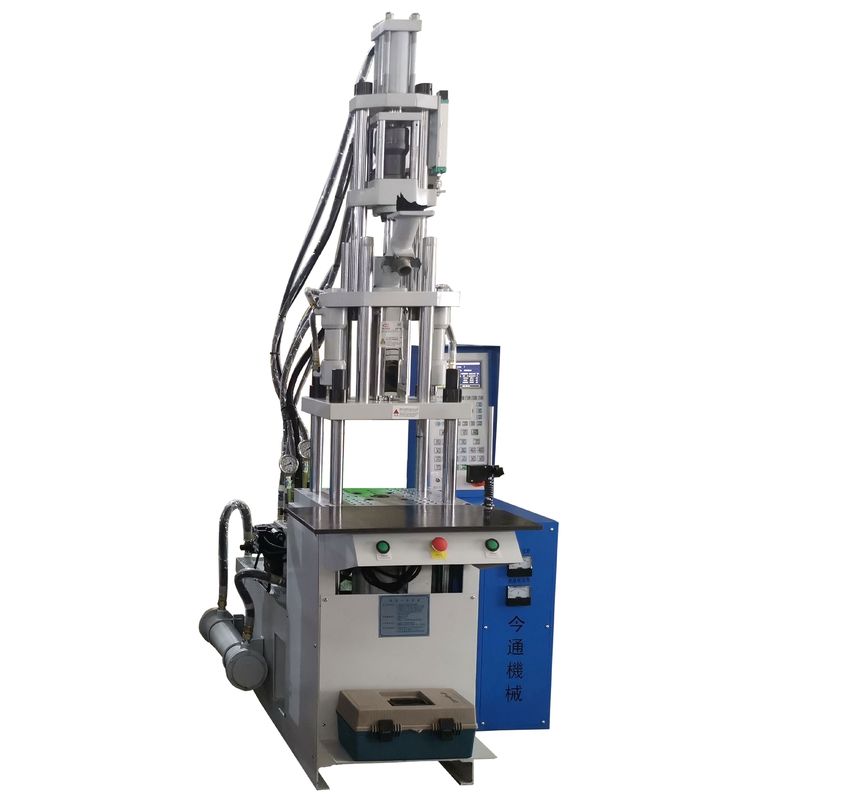

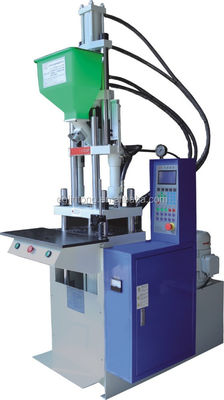

Small Size 20T Vertical Plastic Injection Moulding Machine With 0 Mm Open Stroke
small size vertical plastic injection moulding machine 20T JTT-200
Clamping Force: 20T
Injection Weight: 29-56g
Vertical clamping, vertical injection

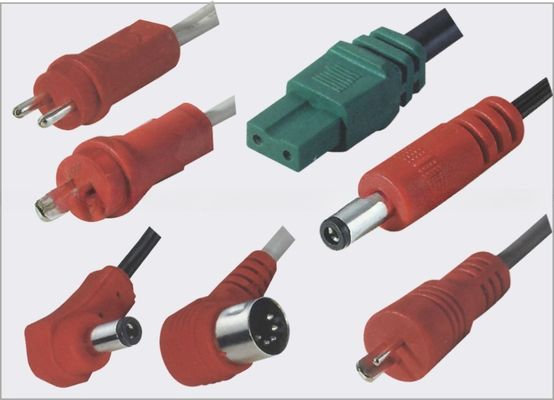

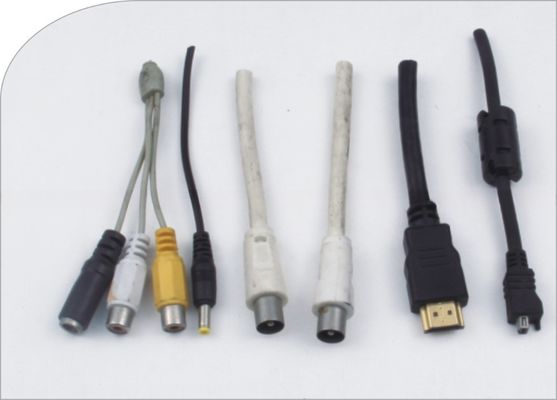

Small volum, suitablefor small and medium insert parts molding;
Double injection cylinder system, high shot pressure, fast shot rate, best choice for insert goods molding. Use famous brand accessories for electrical control and hydraulic system, low noise, precise, durable. Vertical screw injection system, multi-stage temperature control, multi-stage injection pressure and rate, back pressure adjustment, suitable for accurate plastic fittings molding.
Automatically display fault, easy to repair. Optional energy-saving motor; infrared safty device, automatic thermostatic device, leakproof spring nozzle, computer display, double proportion hydraulic controller.
Main Features
1) vertical clamping, vertical injection,
2) clamping force, injection weight and shot speed can be changed according to actual demand.

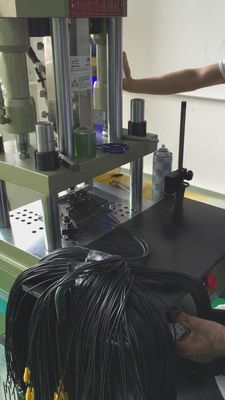

3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity
|
|
Model
|
|
JT-200
|
|
injection system
|
Screw Diameter
|
mm
|
20 22 25 28
|
|
|
Injection Pressure
|
kg/cm2
|
1715 1322 1098 816
|
|
|
Theoretical Shot Volume
|
cm3
|
29 35 45 56
|
|
|
Injection Rate
|
cm3/sec
|
20 24 30 38
|
|
|
Screw Stroke
|
mm
|
100
|
|
|
Screw Speed
|
rpm
|
0-215
|
|
|
Nozzle Contact Force
|
tons
|
1.5
|
|
|
Nozzle Stroke
|
mm
|
140
|
|
|
Number of Temperature Control
|
-
|
1+2
|
|
|
Hopper Capacity
|
L
|
15
|
|
clamping system
|
Clamping Force
|
tons
|
20
|
|
|
Opening Force
|
tons
|
7
|
|
|
Platen Size
|
mm
|
460x310
|
|
|
Distance Between Tie Bar
|
mm
|
303x153
|
|
|
Min Mold Height
|
mm
|
40/100
|
|
|
Opening Stroke
|
mm
|
180
|
|
|
Max Open Daylight
|
mm
|
220/280
|
|
|
Ejector Force
|
tons
|
1.3
|
|
|
Ejector Stroke
|
mm
|
35
|
|
oil pressure system
|
Max Hydraulic Pressure
|
kg/cm2
|
140
|
|
|
Pump Output
|
L/min
|
23
|
|
|
Oil Reservior Capacity
|
L
|
80
|
|
|
Cooling Water Consumption
|
/hr
|
400-600
|
|
|
Pump Moter Power
|
KW
|
4
|
|
|
Barrel Heating Power
|
kw
|
2
|
|
|
Total Power
|
kw
|
6
|
|
other
|
Machine Weight
|
T
|
0.65
|
|
|
Machine Dimension
|
mm
|
1400*900*2200
|
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
