176 Cm3 Theoretical Shot Volume Dental Floss Vertical Plastic Injection Moulding Machine 55T 12kW
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-550 |
Payment & Shipping Terms:
| Price: | $14,000.00/pieces 1-4 pieces |
|---|---|
| Packaging Details: | plywood case for dental floss vertical injection moulding machine price |
| Supply Ability: | 600 Piece/Pieces per Month dental floss vertical injection moulding machine price |
|
Detail Information |
|||
| Plastic Processed: | PP | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 100 |
| Mold Height(mm): | 110 - 380 Mm | Ejector Number: | 1 |
| Ejector Stroke(mm): | 45 Mm | Ejector Force(kN): | 13 KN |
| Theoretical Shot Volume(cm³): | 176 Cm³ | Injection Rate (g/s): | 90 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 160 G |
| Screw Speed (rpm): | 1 - 200 Rpm | Screw Diameter (mm): | 40 Mm |
| Screw L/D Ratio: | 25 | Distance Between Tie Bars: | 375mm |
| Weight (KG): | 2100 Kg | Type: | Other |
| Open Stroke(mm): | 500 Mm | Power (kW): | 12kW |
| Warranty: | 1 Year | Key Selling Points: | Long Service Life |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, PLC, Pressure Vessel |
| After-sales Service Provided: | Video Technical Support | After Warranty Service: | Video Technical Support |
| Product Name: | Dental Floss Injection Molding Machine 55T | Machine Color: | Grey Blue |
| Marketing Type: | New Product 2020 | Port: | SHENZHEN |
| Highlight: | Vertical Plastic Injection Moulding Machine 12kW,Vertical Plastic Injection Moulding Machine 55T |
||
Product Description
176 Cm3 Theoretical Shot Volume Dental Floss Vertical Plastic Injection Moulding Machine
Product Description

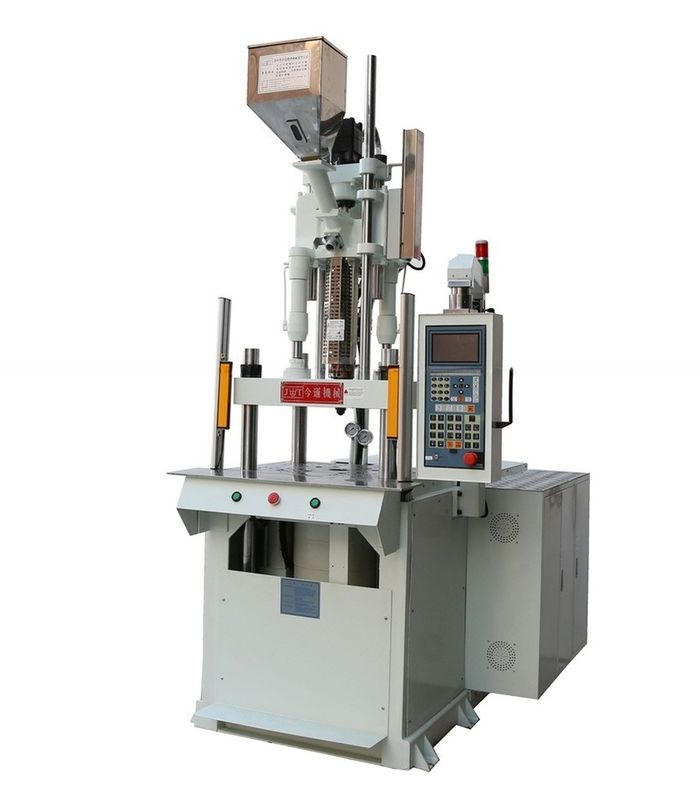

Dental floss vertical injection moulding machine JTT-550
Clamping Force: 55T
Max injection Weight: 177g
Vertical clamping, horizontal injection
3 or 4 section temperature controller
Without column, easy to operation
Fixed low die and movable up die to avoid insert parts shift
Low pressure opening mold unit to protect mold safty
match with dental floss pick up automatic machine
Main Features
1) Vertical clamping, horizontal injection, no tie bar
2) Single sliding table, one top die, one bottom die
3) The lower die can slip outside, and inserted action can be safer, and work efficiency improves. And also the finished goods release outside.
4) Use energy-saving motor to save 71% electricity power
Certifications
Detailed Images
Our Service
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
Packing & Delivery
