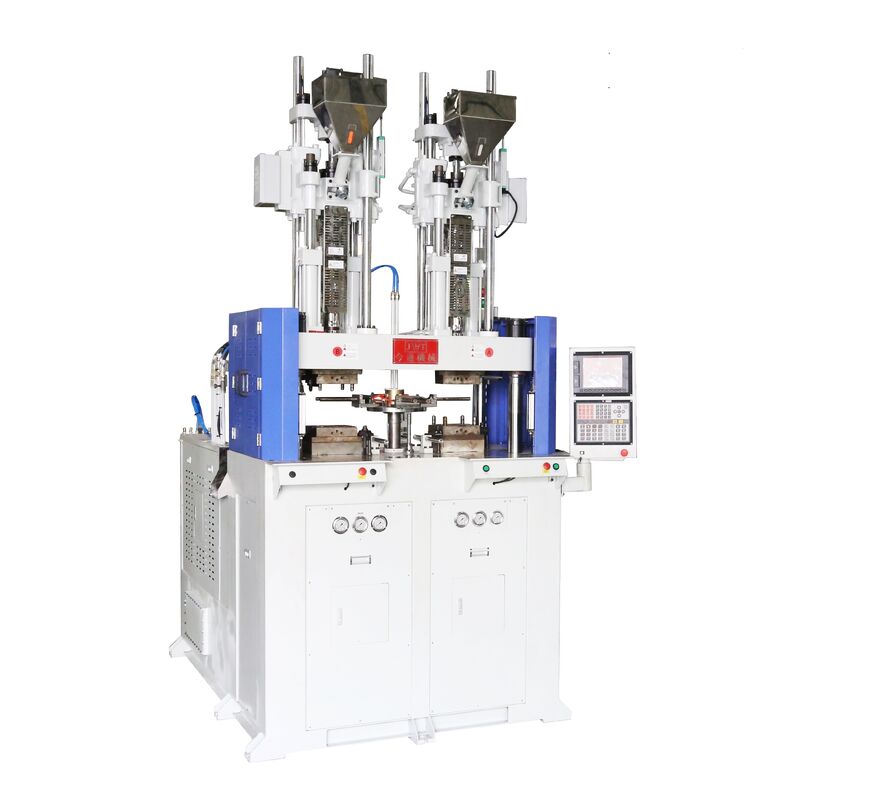

JINTONG Center Turret Two Color Material Hydraulic Vertical Injection Molding Machine PVC/PP Screw Energy Saving JTT2V3R-2400
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT2V3R- 2400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $72,000-76,200 |
|
Detail Information |
|||
| Plastic Processed: | PP, PVC, Tpe | Style: | VERTICAL |
|---|---|---|---|
| Plasticizing Capacity(g/s): | 400 | Mold Height(mm): | 160 - 520 Mm |
| Ejector Number: | 2 | Ejector Stroke(mm): | 110 |
| Ejector Force(kn): | 110 | Theoretical Shot Volume(cm³): | 725 |
| Injection Rate (g/s): | 275 | Machine Type: | Hydraulic |
| Injection Weight (g): | 573 | Screw Speed (rpm): | 1 - 200 Rpm |
| Screw Diameter (mm): | 55 | Screw L/D Ratio: | 25 |
| Distance Between Tie Bars: | 650 | Weight (kg): | 13000 |
| Open Stroke(mm): | 500 | Power (kw): | 45 |
| Warranty: | 1 Year | Key Selling Points: | Energy Saving |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Core Components: | Bearing, Motor, Pump, PLC, Pressure Vessel, Screw | Injection Weight: | 724G |
| Injection Rate: | 151-314CM3/S | Opening Stroke: | 250MM |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Screw Diameter: | 42mm 48mm 55mm |
| Oil Tank: | 900L | Product Name: | Center Turret Two Color Material Injection Molding JTT2V3R-2400 |
| Top Platen Size: | 920*1200mm | Max Daylight: | 650mm |
| Min Old Height: | 300mm | ||
| Highlight: | hydraulic vertical injection molding machine,PVC PP screw injection molding machine,energy saving vertical injection moulding machine |
||
Product Description
Get the Hightlights
- Vertical clamping, vertical injection, easy to change color or material, well mixed, rapid temperature rise
- clamping force: 240T
- Different injection combination can be chosen to reach best productivity and less power loss according to different shot weight
- One molding for dual-color/material embeded products, multi-sation rotary design, stable rotation, precise position, easy to put and pick out products
- Injection system can be used individually
- two color/material inject at the same time, suitable for all kinds of mold

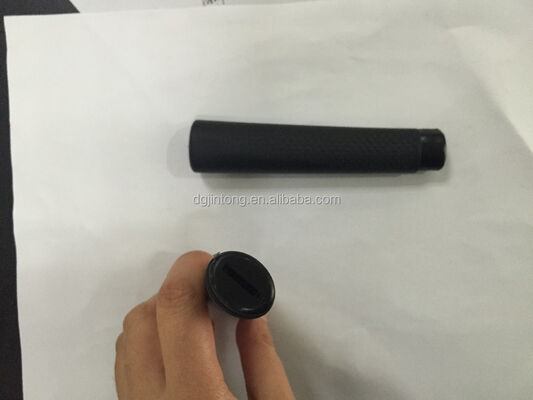

- samples: tooth brush, trademark, different kinds of accessories,handle of bicycle or electric vehicles
DETAIL SHOT
ABOUT THE SUPPLIER
Dongguan Jintong Plastic Machinery Co., Ltd. specializes in vertical injection molding machines, offering advanced solutions for diverse industries. With 2000T clamping force capabilities and proprietary IP, the company delivers high productivity, precision, and reliability. Certified to European standards, Jintong provides comprehensive service and export solutions across Southeast Asia, Europe, and South America.
COMPANY OVERVIEW
COMPETITIVE ADVANTAGES
FACTORY PROFILE
CUSTOMIZATION CAPABILITIES
PRODUCTION WORKFLOW
TRADE SHOW PARTICIPATION
PACKAGING & SHIPPING SPECIFICATIONS
FAQs
Q: Are you trading company or factory?
A: We are factory to produce vertical injection molding machine more than 20 years.
Q: What is your machine warranty period?
A: 1 year against BL on board time
Want to Know more details about this product
