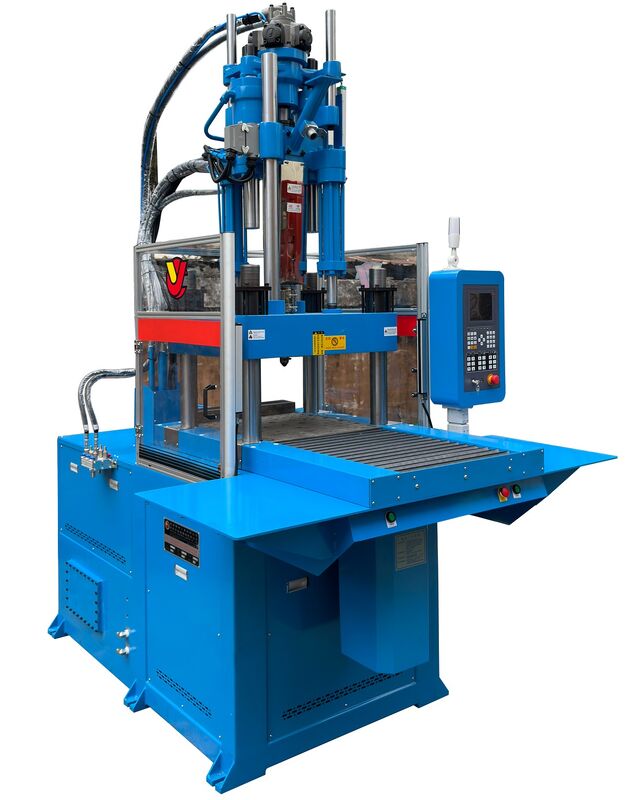

Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-1200D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $24,200-25,000 |
|
Detail Information |
|||
| Plastic Processed: | PC, PA, BMC | Style: | VERTICAL |
|---|---|---|---|
| Plasticizing Capacity(g/s): | 150 | Mold Height(mm): | 260 - 450 Mm(10.24-17.72in) |
| Ejector Number: | 1 | Ejector Stroke(mm): | 45 |
| Ejector Force(kn): | 13 | Theoretical Shot Volume(cm³): | 175 |
| Injection Rate (g/s): | 177 | Machine Type: | Hydraulic |
| Injection Weight (g): | 320 | Screw Speed (rpm): | 1 - 200 Rpm |
| Screw Diameter (mm): | 45 | Screw L/D Ratio: | 22 |
| Distance Between Tie Bars: | 460 | Weight (kg): | 2300 |
| Open Stroke(mm): | 400 | Power (kw): | 22.5 |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Core Components: | Bearing, PLC, Pressure Vessel, Engine | Opening Stroke: | 250mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Screw Diameter: | 35mm 40mm 45mm |
| Screw Stroke: | 140mm | Product Name: | Single Shuttle Slider Hydraulic Vertical Plastic Injection JTT-1200D |
| Platen Size: | 840*500mm | Max Daylight: | 500mm |
| Min Old Height: | 250mm | ||
| Highlight: | 120T hydraulic vertical injection molding machine,PLC controlled plastic injection machine,PA/PC compatible vertical molding machine |
||
Product Description
Get the Hightlights
- Vertical clamping, vertical injection D single slide table(one up die and one low die)
- clamping force: 120T
- Single slide table offer operation convenience
- Optional saving energy motor
- Fixed low die and movable up die to avoid insert part shift;
- oil hydraulic unit under low die to ejector finshed products;
- ejector speed and stroke adjusted by actual demand Combined with conveyor system used on production line
CUSTOMIZATION CAPABILITIES
PRODUCTION WORKFLOW
DETAIL SHOT
ABOUT THE SUPPLIER
Dongguan Jintong Plastic Machinery Co., Ltd. specializes in vertical injection molding machines, offering advanced solutions for diverse industries. With 2000T clamping force capabilities and proprietary IP, the company delivers high productivity, precision, and reliability. Certified to European standards, Jintong provides comprehensive service and export solutions across Southeast Asia, Europe, and South America.
COMPANY OVERVIEW
COMPETITIVE ADVANTAGES

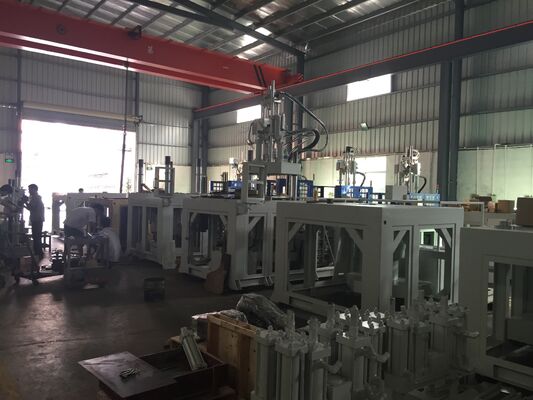

FACTORY PROFILE
TRADE SHOW PARTICIPATION
PACKAGING & SHIPPING SPECIFICATIONS
FAQs
Q: Are you trading company or factory?
A: We are factory to produce vertical injection molding machine more than 20 years.
Q: What is your machine warranty period?
A: 1 year against BL on board time
