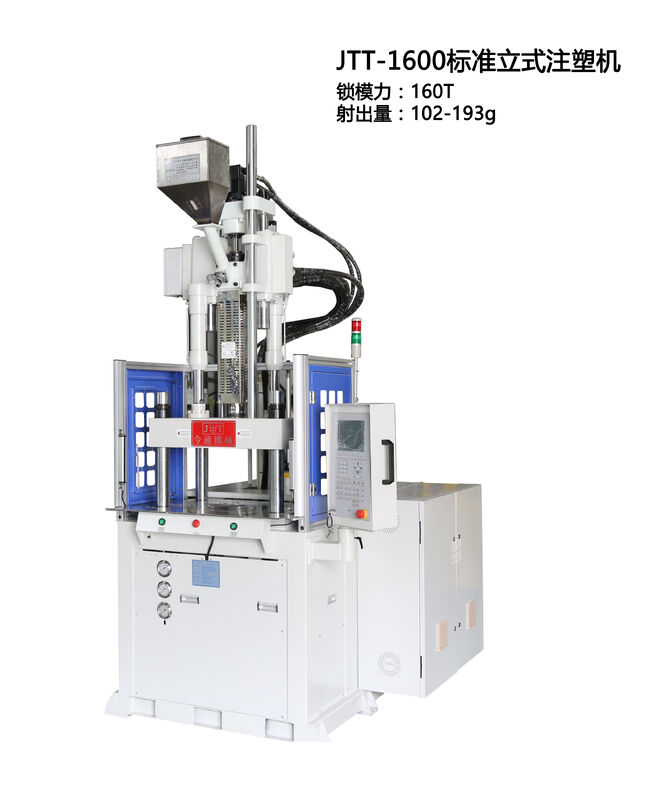

JINTONG JTT-1600 160T Hydraulic Vertical Injection Molding Machine High Safety Level for Car Spare Parts ABS/PP/PC/PA/PLC
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-1600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | $33000-35000/pieces 1-2 pieces |
| Packaging Details: | PLYWOOD CASE |
| Delivery Time: | 35 DAYS |
| Supply Ability: | 600 Piece/Pieces per Month JINTONG vertical injection molding machine JTT-1200 |
|
Detail Information |
|||
| Plastic Processed: | PP, PC, ABS, PVC, PA, PE, LDPE, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 500 |
| Mold Height(mm): | 310 - 550 Mm | Ejector Number: | 1 |
| Ejector Stroke(mm): | 145 Mm | Ejector Force(kN): | 48 KN |
| Theoretical Shot Volume(cm³): | 570 Cm³ | Injection Rate (g/s): | 178 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 513 G |
| Screw Speed (rpm): | 1 - 240 Rpm | Screw Diameter (mm): | 55 Mm |
| Screw L/D Ratio: | 26 | Distance Between Tie Bars: | Other |
| Weight (KG): | 5000kg | Type: | Other |
| Open Stroke(mm): | 250 Mm | Power (kW): | 44.3 KW |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, PLC, Pressure Vessel |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Opening Force: | 160T |
| Platen Size: | 870*610mm | Max Daylight: | 650MM |
| Min Old Height: | 300MM | After Warranty Service: | Video Technical Support |
| Marketing Type: | Ordinary Product | Port: | SHENZHEN |
| Highlight: | 160T hydraulic injection molding machine,vertical injection molding machine for car parts,ABS PP PC PA molding machine |
||
Product Description
Clamping Force: 160T
Max Injection Weight: 500g
Vertical clamping, vertical injection
Small volum, suitablefor small and medium insert parts molding;
High shot pressure, fast shot rate, best choice for insert goods molding.
Use famous brand accessories for electrical control and hydraulic system, low noise, precise, durable.
Vertical screw injection system, multi-stage temperature control, multi-stage injection pressure and rate, back pressure adjustment, suitable for accurate plastic fittings molding.
Automatically display fault, easy to repair.
Optional energy-saving motor; infrared safty device, automatic thermostatic device, leakproof spring nozzle, computer display, double proportion hydraulic controller.
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
