Rotary Table Vertical Injection Moulding Machine with 200T Clamping Force High Productivity and 1 Year Warranty
Product Details:
| Place of Origin: | China |
| Brand Name: | JINTONG |
| Certification: | ISO9001 CE |
| Model Number: | JTT-2000R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $62,000-66,000 / piece |
|
Detail Information |
|||
| Clamping Force: | 200T | Injection Weight: | 456-662g |
|---|---|---|---|
| Ejector Stroke: | 75 Mm | Ejector Force: | 48 KN |
| Shot Volume: | 678 Cm³ | Injection Rate: | 212 G/s |
| Screw Diameter: | 60 Mm | Tie Bar Distance: | 760mm |
| Machine Weight: | 12000 Kg | Open Stroke: | 600 Mm |
| Power: | 44.3 KW | Screw Stroke: | 260mm |
| Opening Force: | 22.4T | Rotary Table Diameter: | 1500mm |
| Machine Dimensions: | 3.0*2.2*3.6m | ||
| Highlight: | 200T Clamping Force Vertical Injection Moulding Machine,High Productivity Rotary Table Injection Moulding Machine,1 Year Warranty Vertical Plastic Injection Moulding Machine |
||
Product Description

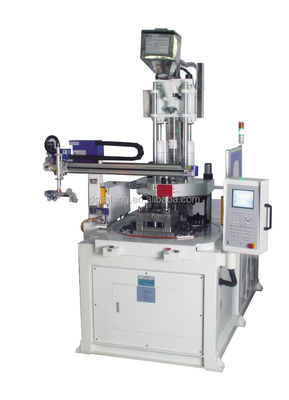

Rotary Table Vertical Plastic Injection Moulding Machine 200T (Model JTT-2000R)
Key Specifications
| Clamping Force | 200T |
|---|---|
| Injection Weight | 456-662g |
Product Description
Vertical clamping and injection system with rotary table functionality for efficient plastic molding operations.
Main Features
- Vertical clamping and injection system
- Adjustable clamping force, injection weight and shot speed
- Multiple station configurations (2, 3 or multi-station)
- Computer-controlled rotary table with forward, reverse, and alternating rotation
- Optional energy-saving motor available
- Easy torque, speed, and deceleration distance adjustment
Product Advantages
Energy Efficiency
Saves 30% energy compared to similar products using SIFU pump system
High Productivity
SIFU motor with max speed 2200/min increases oil pump output, improving productivity by over 15%
Thermal Management
Reduces cooling water requirement by 55% compared to similar machines
Quiet Operation
Optimized motor with imported bearing and oil pump reduces noise by 15-20db
Precision Molding
Closed-cycle control with pressure sensor and motor rotary encoder ensures product consistency
Service Advantage
With 17 years of customer service experience, we've developed systematic and standardized service processes including a 24-hour response mechanism to promptly resolve customer issues.
