Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-850R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $26,000-27,000 / piece |
|
Detail Information |
|||
| Plasticizing Capacity: | 180 G/s | Mold Height: | 110 - 450 Mm |
|---|---|---|---|
| Ejector Number: | 2 | Ejector Stroke: | 75 Mm |
| Ejector Force: | 33 KN | Theoretical Shot Volume: | 276 Cm³ |
| Injection Rate: | 167 G/s | Injection Weight: | 330 G |
| Screw Speed: | 1 - 200 Rpm | Screw Diameter: | 50 Mm |
| Screw L/D Ratio: | 25 | Distance Between Tie Bars: | 560 Mm |
| Weight: | 4000 Kg | Open Stroke: | 500 Mm |
| Power: | 21.6 KW | ||
| Highlight: | 85T Vertical Injection Molding Machine,33 kN Ejector Force Rotary Injection Molding Machine,276 cm³ Theoretical Shot Volume Plastic Injection Molding Machine |
||
Product Description

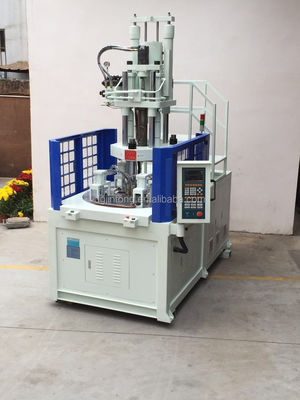

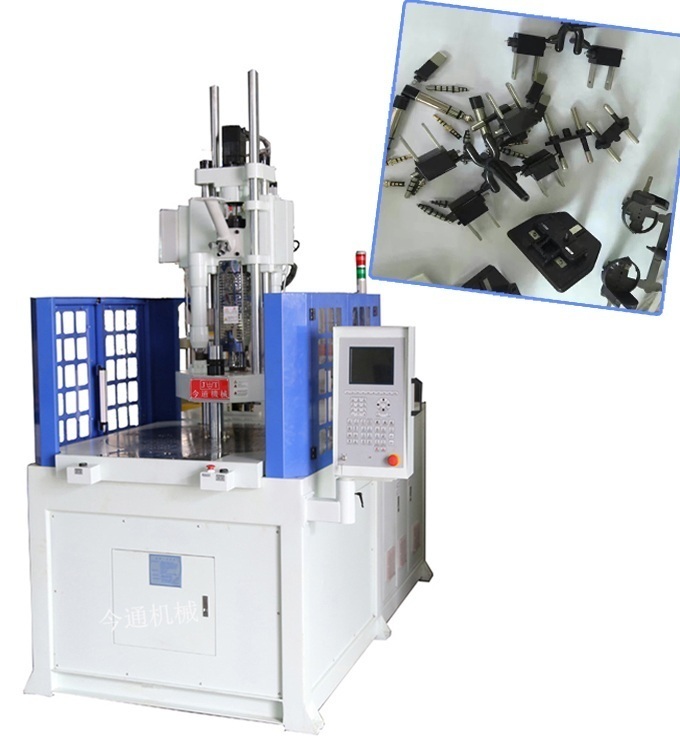

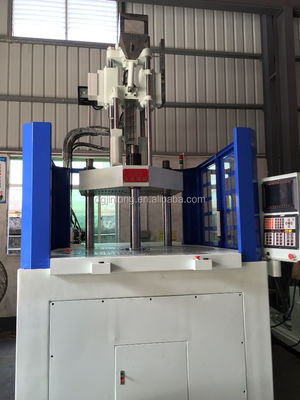

Full-auto Vertical Rotary Injection Molding Machine 85T
Product Description
Model: JTT-850R
Clamping Force: 85T
Injection Weight: 165-272g
- Vertical clamping, vertical injection
- Easy to set torque, speed, deceleration distance and stand number segmentation
- Computer program control rotary table direction (forward-rotating, reverse-rotating, forward and reverse alternative rotating)
- Optional energy-saving motor
Main Features
- Vertical clamping, vertical injection
- Clamping force, injection weight and shot speed can be adjusted according to actual demand
- Available in 2 stations, 3 stations, or multi-station configurations (one up die, two or four down die)
- Easy operation for insert parts, improves productivity
Certifications
Detailed Images
Product Advantages
- Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
- High efficiency: SIFU motor with max speed 2200/min increases oil pump output and improves productivity by over 15%
- Low heating: Saves 55% cooling water quantity compared to similar products
- Low noise: Optimized motor working condition with imported bearing and oil pump reduces noise by 15-20db
- Precision: Complete close-cycle control with pressure sensor and motor rotary encoder improves product consistency
Service Advantage
17 years of customer service experience with a systematic and standardized service process. We maintain a 24-hour response mechanism to promptly solve customer problems and provide excellent service.
