160T Clamping Force Vertical Injection Molding Machine with Rotary Table and 1 Year Warranty
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-1600R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $53,500-56,000 / piece |
|
Detail Information |
|||
| Plasticizing Capacity: | 400 G/s | Mold Height: | 260 - 530 Mm |
|---|---|---|---|
| Ejector Stroke: | 75 Mm | Ejector Force: | 34 KN |
| Shot Volume: | 570 Cm³ | Injection Rate: | 202 G/s |
| Injection Weight: | 513 G | Screw Speed: | 1 - 155 Rpm |
| Screw Diameter: | 55 Mm | Screw L/D: | 28 |
| Tie Bar Distance: | 660 Mm | Machine Weight: | 7000 Kg |
| Open Stroke: | 500 Mm | Power: | 22 KW |
| Machine Dimensions: | 2.8*2.1*3.4 M | ||
| Highlight: | 160T Clamping Force Vertical Injection Molding Machine,1 Year Warranty Vertical Injection Molding Machine,Vertical Clamping Plastic Injection Molding Machine |
||
Product Description

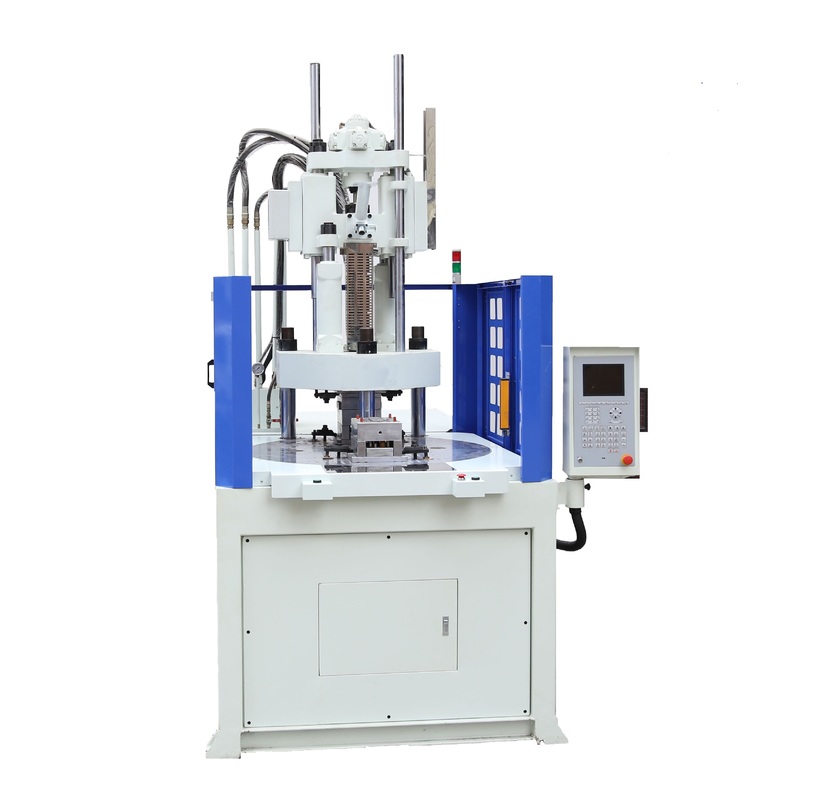

Vertical Rotary Injection Molding Machine JTT-1600R
Key Specifications
| Clamping Force | 160T |
| Injection Weight | 344-513g |
Product Features
- Vertical clamping and vertical injection design
- Easy torque, speed, and deceleration distance adjustment
- Computer-controlled rotary table with multiple rotation modes
- Optional energy-saving motor available
- Adjustable clamping force, injection weight, and shot speed
- Multi-station configuration options (2, 3, or more stations)

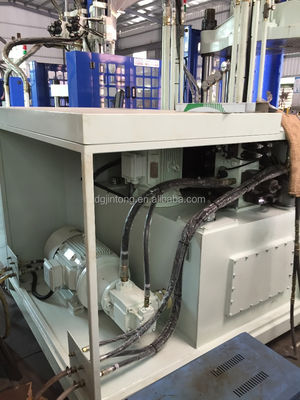

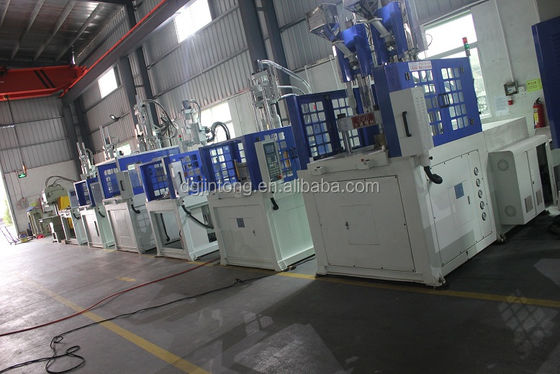

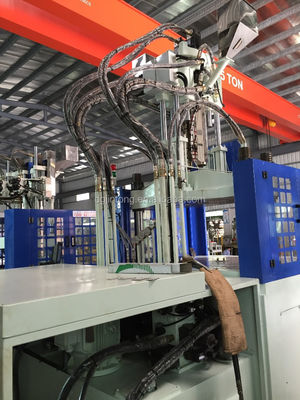

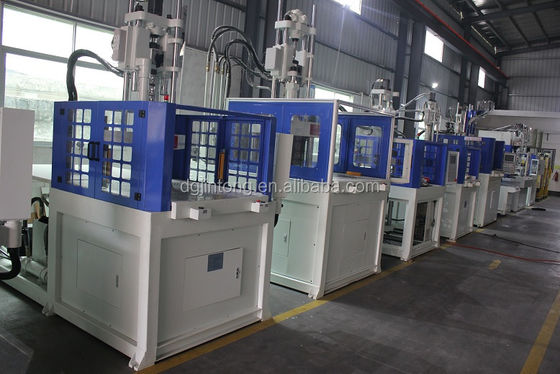

Product Images
Technical Advantages
Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
High efficiency: SIFU motor with max speed 2200/min increases productivity by 15%
Low heating: Reduces cooling water requirement by 55%
Low noise: Optimized motor operation reduces noise by 15-20db
Precision: Closed-cycle control with pressure sensor and motor rotary encoder for consistent output
Service Commitment
With 17 years of experience, we've developed systematic service processes and maintain a 24-hour response mechanism to promptly address customer needs and provide optimal solutions.
