Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-1200R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $32,000-40,000 / piece |
|
Detail Information |
|||
| Plastic Processed: | PP, ABS | Plasticizing Capacity: | 250 G/s |
|---|---|---|---|
| Mold Height: | 150 - 520 Mm | Ejector Number: | 2 |
| Ejector Stroke: | 75 Mm | Ejector Force: | 27 KN |
| Shot Volume: | 410 Cm³ | Injection Rate: | 202 G/s |
| Injection Weight: | 369 G | Screw Speed: | 1 - 220 Rpm |
| Screw Diameter: | 50 Mm | Screw L/D: | 25 |
| Tie Bar Distance: | 620 Mm | Machine Weight: | 5500 Kg |
| Power: | 24.5 KW | ||
| Highlight: | 2 Stations Vertical Injection Molding Machine,3 Stations Rotary Table Injection Molding Machine,250g/s Plasticizing Capacity Injection Molding Machine |
||
Product Description
Rotary Table Vertical Plastic Injection Molding Machine 120T

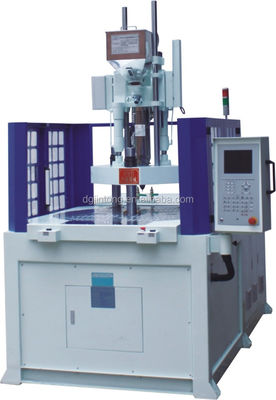

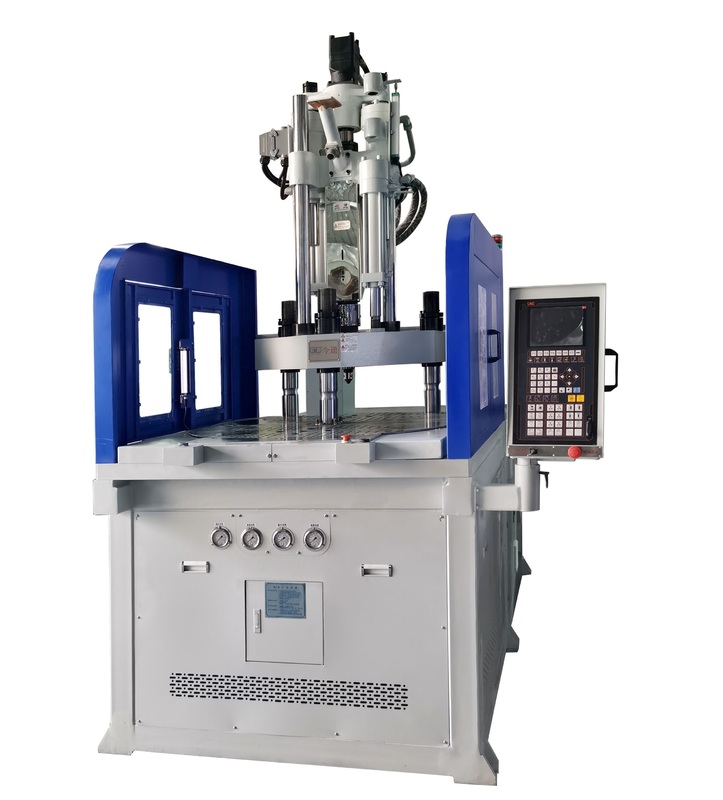

Rotary table vertical injection molding machine JTT-1200R
| Clamping Force | 120T |
| Injection Weight | 237-369g |
Vertical clamping, vertical injection. Easy to set torque, speed, deceleration distance and stand number segmentation. Computer program control for rotary table direction including forward-rotating, reverse-rotating, and forward/reverse alternative rotating. Optional energy-saving motor available.
Main Features
- Vertical clamping and vertical injection design
- Adjustable clamping force, injection weight and shot speed to meet production requirements
- Available in 2-station, 3-station or multi-station configurations (one up die, two or four down die)
- Optimized for operating insert parts and improving productivity
Product Advantages
- Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
- High efficiency: SIFU motor with max speed 2200/min increases oil pump output and improves productivity by over 15%
- Low heating: Reduces cooling water quantity by at least 55% compared to similar models
- Low noise: Optimized motor operation with imported bearing and oil pump reduces working noise by 15-20db
- Precision: Fully closed-cycle control with pressure sensor and motor rotary encoder improves product consistency
Service Advantage
With 17 years of customer service experience, we've developed a systematic and standardized service process. Our 24-hour response mechanism ensures timely resolution of customer issues and delivery of excellent service.
