55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-550R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $19,000-21,000 / piece |
|
Detail Information |
|||
| Plasticizing Capacity: | 150 G/s | Mold Height: | 160 - 300 Mm |
|---|---|---|---|
| Ejector Number: | 2 | Ejector Stroke: | 60 Mm |
| Ejector Force: | 1.8 KN | Theoretical Shot Volume: | 170 Cm³ |
| Injection Rate: | 113 G/s | Injection Weight: | 141 G |
| Screw Speed: | 0 - 215 Rpm | Screw Diameter: | 40 Mm |
| Screw L/D Ratio: | 22 | Distance Between Tie Bars: | 510 Mm |
| Weight: | 2400 Kg | Open Stroke: | 540 Mm |
| Power: | 12.8 KW | ||
| Highlight: | 55T Clamping Force Rotary Table Plastic Injection Molding Machine,High-accuracy Rotary Table Plastic Injection Molding Machine,1 Year Warranty Rotary Table Plastic Injection Molding Machine |
||
Product Description
Best Seller Rotary Table Plastic Injection Molding Machine 55T
Product Description

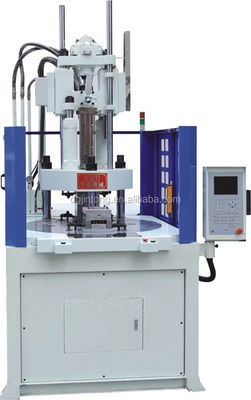

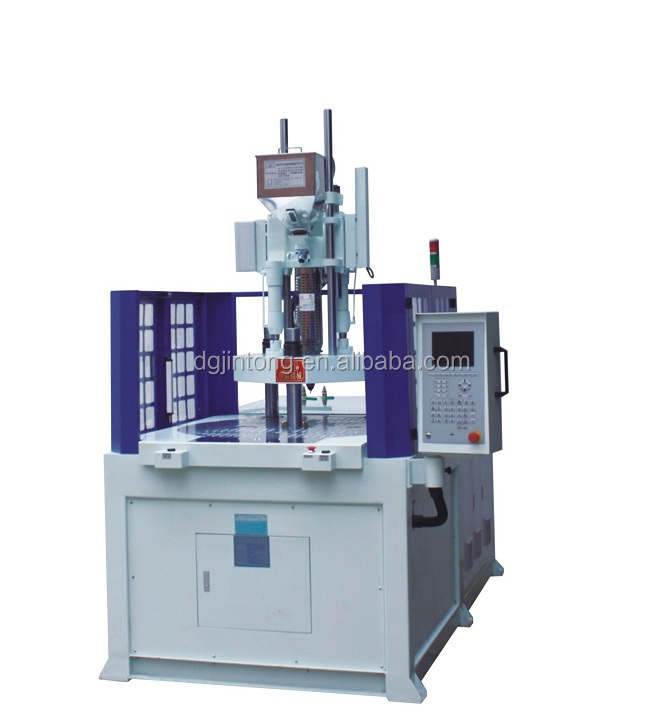

Best seller rotary table plastic injection molding machine JTT-550R
Clamping Force: 55T
Injection Weight: 80-141g
- Vertical clamping, vertical injection
- Easy to set torque, speed, deceleration distance and stand number segmentation
- Computer program control rotary table direction: forward-rotating, reverse-rotating, forward and reverse alternative rotating
- Optional energy-saving motor
Main Features
- Vertical clamping, vertical injection
- Clamping force, injection weight and shot speed can be changed according to actual demand
- 2 stations, 3 stations, multi-station (one up die, two or four down die), easy for operating insert parts, improves productivity
Certifications

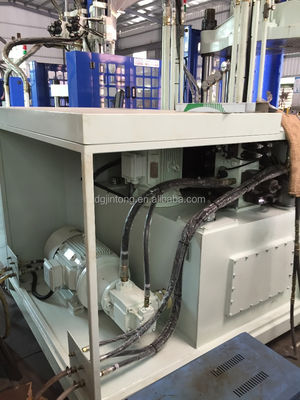

Detailed Images
Product Advantages
Energy-saving:
Save 30% energy compared to similar products by using SIFU pump system
High efficiency:
SIFU motor has max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating:
Save 55% cooling water quantity at least compared to similar products
Low noise:
Optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision:
Use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
Service Advantage
17 years of customer service experience and summarizing customer feedback, Jintong has developed a systematic and standardized service process, and also established a 24-hour response mechanism to ensure timely resolution of customer problems and provide perfect service as soon as possible.
Packing & Delivery
Want to Know more details about this product
