200T Electric Vertical Injection Molding Machine 180g 35mm Screw
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTTD-2000-2R-DS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US$113,000-118,000 |
|
Detail Information |
|||
| Plasticizing Capacity: | 200 G/s | Mold Height: | 300 - 800 Mm |
|---|---|---|---|
| Ejector Number: | 5 | Ejector Stroke: | 100 Mm |
| Ejector Force: | 54 Kn | Theoretical Shot Volume: | 134 Cm³ |
| Injection Rate: | 190 G/s | Injection Weight: | 180 G |
| Screw Speed: | 1 - 300 Rpm | Screw Diameter: | 35 Mm |
| Screw L/D Ratio: | 23 | Distance Between Tie Bars: | 630*630 Mm |
| Weight: | 18500 Kg | Open Stroke: | 500 Mm |
| Power: | 39.7 Kw | ||
| Highlight: | 200T electric injection molding machine,vertical injection molding machine 180g,35mm screw injection molding machine |
||
Product Description
200T Electric Injection Hydraulic Clamping Vertical Injection Molding Machine JTTD-2000-2R-DS
Key Specifications
| Plastic Processed | PA, PC |
| Style | VERTICAL |
| Plasticizing Capacity | 200 g/s |
| Mold Height | 300 - 800 mm |
| Ejector Number | 5 |
| Ejector Stroke | 100 mm |
| Ejector Force | 54 kn |
| Theoretical Shot Volume | 134 cm³ |
| Injection Rate | 190 g/s |
| Machine Type | Electric |
| Injection Weight | 180 g |
| Screw Speed | 1 - 300 rpm |
| Screw Diameter | 35 mm |
| Screw L/D Ratio | 23 |
| Distance Between Tie Bars | 630*630 mm |
| Weight | 18500 kg |
| Open Stroke | 500 mm |
| Power | 39.7 kw |
| Warranty | 1 Year |
Technical Specifications
| Model | JTTD-2000-2R-DS | |
|---|---|---|
| Injection System | Screw Diameter | 35 mm |
| Injection Pressure | 2000 kg/cm² | |
| Theoretical Shot Volume | 134 cm³ | |
| Injection Rate | 200 cm³/sec | |
| Clamping System | Clamping Force | 200 tons |
| Opening Force | 22 tons | |
| Min Mold Height | 300+50+50 mm | |
| Opening Stroke | 500 mm | |
| Max Open Daylight | 800+50+50 mm | |
| Rotary Table Diameter | 1600 mm | |
| Ejector Force | 5.4 tons | |
| Other | Max Hydraulic Pressure | 140 kg/cm² |
| Pump Output | 160 L/min | |
| Cooling Water Consumption | 1800-2300 /hr | |
| Motor Power | 23 kw | |
| Heating Power | 5.5 kw | |
| Machine Dimension | 3.6*3.1*3.4/4.0 m | |
| Machine Weight | 18.5 tons | |
Main Features
- Vertical clamping, vertical injection
- Clamping force, injection weight and shot speed can be adjusted according to actual demand
- 2 stations, 3 stations, multi-station (one up die, two or four down die) configuration options
- Easy operation for insert parts, improving productivity
- Computer program control for rotary table direction (forward-rotating, reverse-rotating, forward and reverse alternative rotating)
- SERVO SYSTEM for precise control
Product Advantages
- Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
- High efficiency: SIFU motor with max speed 2200/min increases oil pump output and improves productivity by over 15%
- Low heating: Saves 55% cooling water quantity compared to similar products
- Low noise: Optimized motor working condition with imported bearing and oil pump reduces working noise by 15-20db
- Precision: Complete close-cycle control with pressure sensor and motor rotary encoder improves product consistency
Service Advantages
With 17 years of customer service experience, we've developed a systematic and standardized service process, including a 24-hour response mechanism to ensure timely problem resolution and excellent customer service.
After-Sales Support
- 1 Year Warranty
- Free spare parts included
- Video technical support available after warranty period
- Machinery test report provided
- Video outgoing-inspection provided

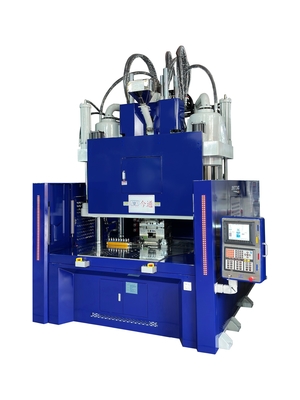

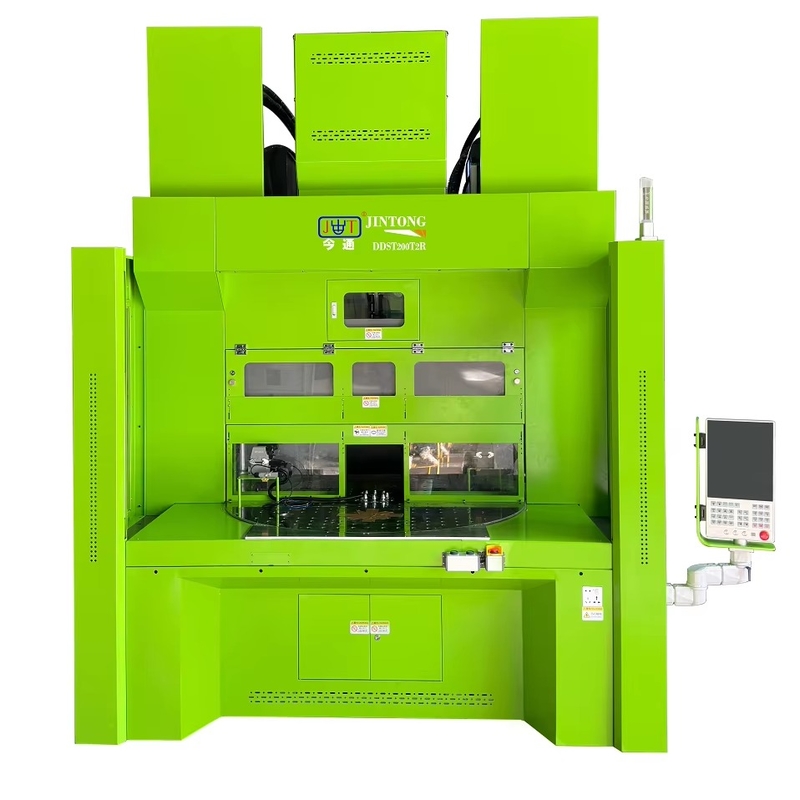

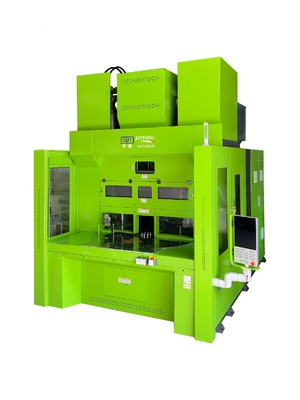

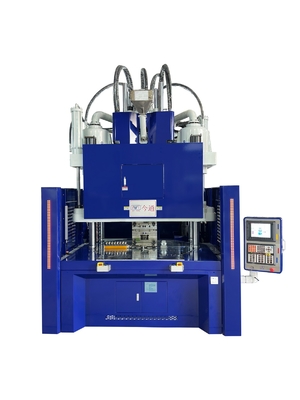

Product Images
