120T Electric Vertical Injection Molding Machine with 175g/s Plasticizing Capacity
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-1200R-DS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US$76,000-80,000 |
|
Detail Information |
|||
| Plasticizing Capacity: | 175 G/s | Mold Height: | 400 - 550 Mm |
|---|---|---|---|
| Ejector Number: | 5 | Ejector Stroke: | 100 Mm |
| Ejector Force: | 40 Kn | Theoretical Shot Volume: | 112 Cm³ |
| Injection Rate: | 240 G/s | Injection Weight: | 120 G |
| Screw Speed: | 1 - 400 Rpm | Screw Diameter: | 32 Mm |
| Screw L/D Ratio: | 23 | Distance Between Tie Bars: | 600*450 Mm |
| Weight: | 7000 Kg | Open Stroke: | 500 Mm |
| Power: | 31.6 Kw | ||
| Highlight: | 120T electric injection molding machine,vertical injection molding machine with 175g/s,plastic vertical injection molding machine |
||
Product Description
120T Electric Injection Hydraulic Clamping Vertical Injection Molding Machine JTT-1200R-DS
Product Specifications
| Attribute | Value |
|---|---|
| Plastic Processed | PA, PC |
| Style | VERTICAL |
| Plasticizing Capacity (g/s) | 175 |
| Mold Height (mm) | 400 - 550 mm |
| Ejector Number | 5 |
| Ejector Stroke (mm) | 100 |
| Ejector Force (kn) | 40 |
| Theoretical Shot Volume (cm³) | 112 |
| Injection Rate (g/s) | 240 |
| Machine Type | Electric |
| Injection Weight (g) | 120 |
| Screw Speed (rpm) | 1 - 400 rpm |
| Screw Diameter (mm) | 32 |
| Screw L/D Ratio | 23 |
| Distance Between Tie Bars | 600*450MM |
| Weight (kg) | 7000 |
| Open Stroke (mm) | 500 |
| Power (kw) | 31.6 |
| Warranty | 1 Year |
Technical Details
| Model: JTT-1200R-DS | |||
|---|---|---|---|
| Injection System | Clamping System | Other | |
| Screw Diameter | 32 mm | Clamping Force | 120 tons |
| Injection Pressure | 2200 kg/cm2 | Opening Force | 20 tons |
| Theoretical Shot Volume | 112 cm3 | Min Mold Height | 400 mm |
| Injection Rate | 200 cm3/sec | Opening Stroke | 275 mm |
| Max Open Daylight | 675 mm | ||
| Rotary Table Diameter | 1350 mm | ||
| Ejector Force | 4 tons | ||
| Ejector Stroke | 100 mm | ||
| Max Hydraulic Pressure | 140 kg/cm2 | ||
| Pump Output | 126 L/min | ||
| Cooling Water Consumption | 1500-2000 /hr | ||
| Motor Power | 18 kw | ||
| Heating Power | 8.5 kw | ||
| Machine Dimension | 3.15*2*3.4/4.0 m | ||
| Machine Weight | 7 tons | ||
Key Features
- Vertical clamping and vertical injection design
- Adjustable clamping force, injection weight and shot speed
- Supports 2 stations, 3 stations, or multi-station configurations
- Computer program control for rotary table direction
- Advanced SERVO SYSTEM for precision operation
Product Advantages
Performance Benefits
- Energy-saving: 30% more efficient than similar products using SIFU pump system
- High efficiency: SIFU motor with max speed 2200/min increases productivity by 15%
- Low heating: Reduces cooling water consumption by 55%
- Low noise: Optimized motor operation reduces noise by 15-20db
- Precision: Closed-cycle control with pressure sensor and motor rotary encoder improves product consistency
Service Advantages
With 17 years of customer service experience, we've developed a systematic and standardized service process with a 24-hour response mechanism to promptly solve customer problems and deliver exceptional service.

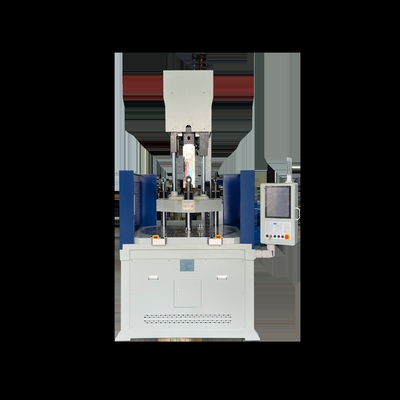

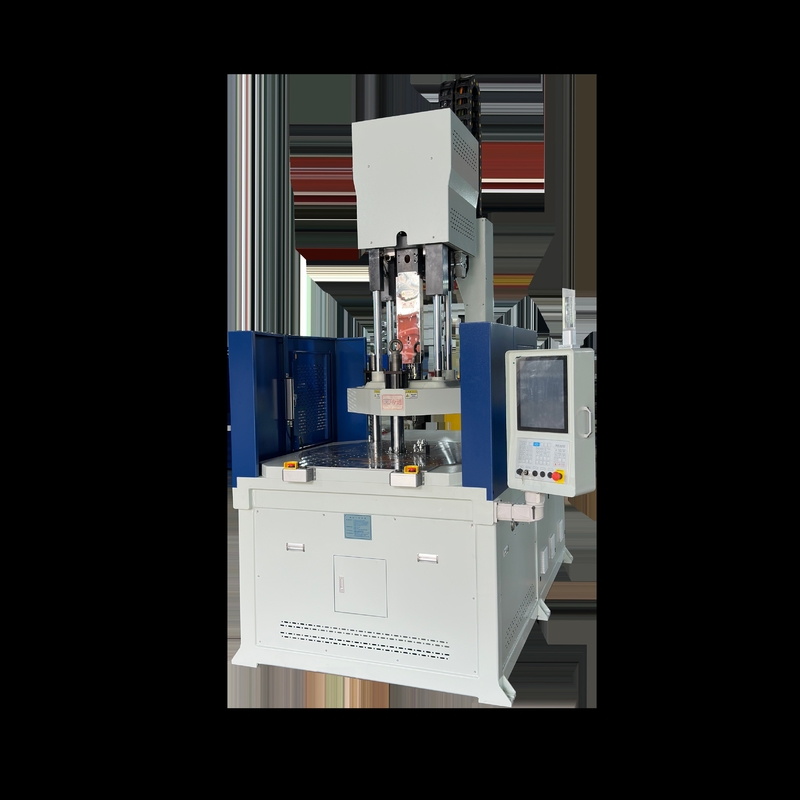

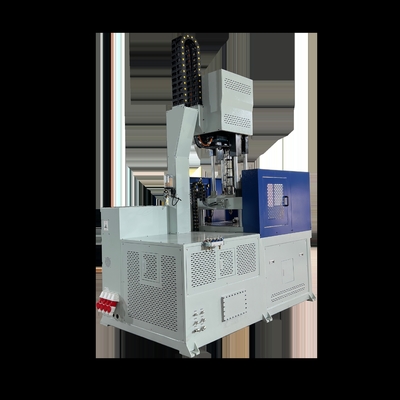

Product Images
