200T Low Work Table Rotary Table Vertical Injection Machine
Product Details:
| Place of Origin: | DONGGUAN |
| Brand Name: | JINTONG |
| Certification: | CE ISO |
| Model Number: | JTTD-2000R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD60000--68000/PC |
| Packaging Details: | plywood case |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 60PCS/MONTH |
|
Detail Information |
|||
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support, Video Technical Support |
|---|---|---|---|
| Power(Kw): | 39.8 | Automatic: | Yes, Semi-auto |
| Certification: | CE ISO | Plastic Type: | Termoplastic |
| Clamping Force: | 200T | Warranty: | 1 Year Free Spare Parts, Life-spen Service |
| Keyword: | Photovoltaic Spare Parts Machine | ||
| Highlight: | Vertical Low Work Table Injection Machine,200T Low Work Table Injection Machine,200T Rotary Table Vertical Injection Machine |
||
Product Description

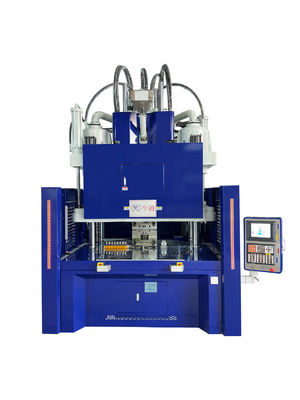

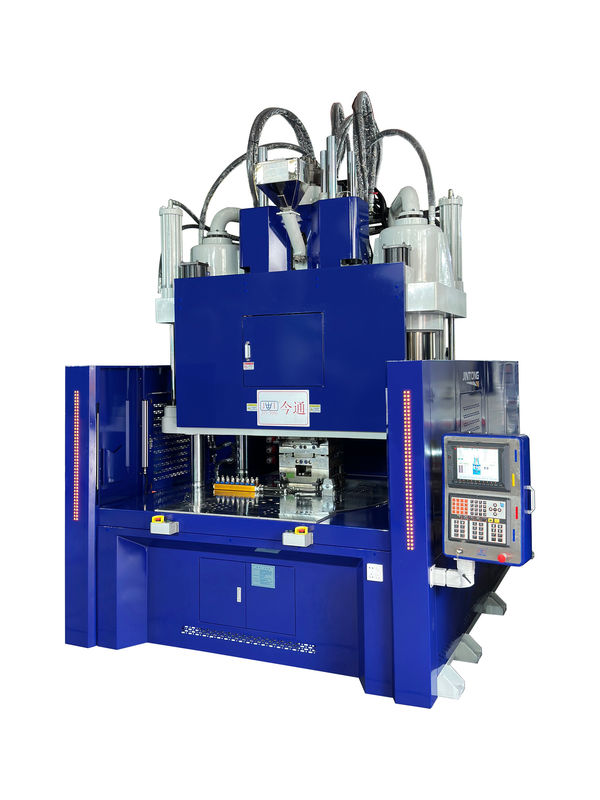

200T low work table vertical injection molding machine with rotary table JTTD-2500R
Clamping Force: 200T
Vertical clamping, vertical injection
Easy to set torque , speed, deceleration distance and stand number segmentation
Computer programme control rotary table direction , forward-rotating, reverse-rotating, forward and reverse alternative rotating.
| Model | JTTD-2000R | |
| Screw Diameter | mm | 35 40 45 |
| Injection Pressure | kg/cm2 | 4379 3353 2648 |
| Theoretical Shot Volume | cm3 | 250 326 413 |
| Injection Rate | cm3/sec | 86 112 142 |
| Screw Stroke | mm | 260 |
| Screw Speed | rpm | 163 |
| Heating Capacity | kw | 11.6 |
| Clamping Force | tons | 203 |
| Opening Force | tons | 22.4 |
| Min Mold Height | mm | 300 |
| Opening Stroke | mm | 300 |
| Max Open Daylight | mm | 600 |
| Mold Dimension | mm | 575*500 |
| Rotary Table Diameter | 1500 | |
| Ejector Force | tons | 3.4 |
| Ejector Stroke | mm | 75 |
| Motor Power | kw | 29.8 |
| WORK TABLE HEIGHT | mm | 950 |
| Machine Dimension | m | 3.0*2.2*3.2 |
| Machine Weight | tons | 13 |
