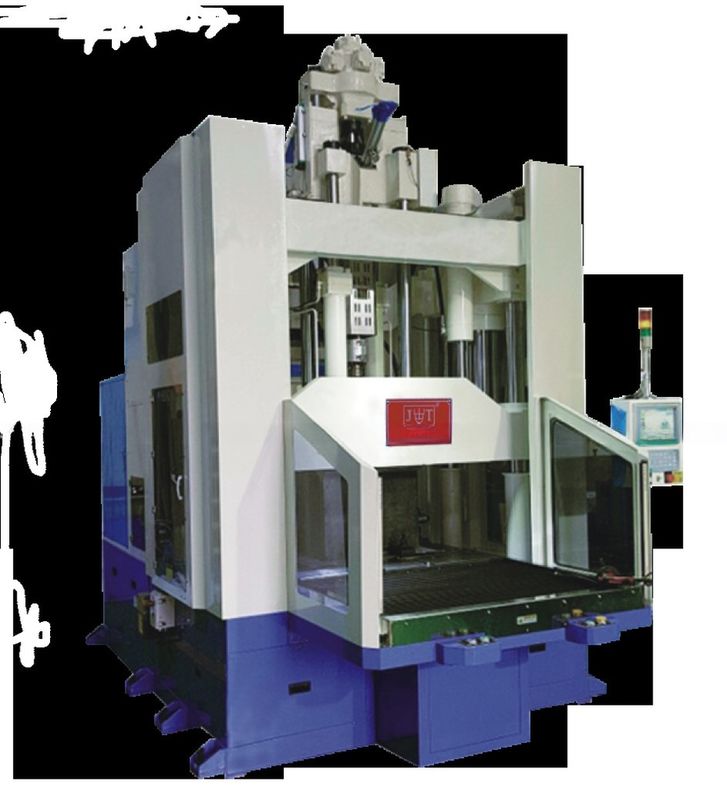

350T Low Work Table Injection Molding Machine Vertical With Single Slide Table JTTD-3500D
Product Details:
| Place of Origin: | DONGGUAN |
| Brand Name: | JINTONG |
| Model Number: | JTTD-3500D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD86000--90000/PC |
| Packaging Details: | plywood case |
| Delivery Time: | 65 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 60PCS/MONTH |
|
Detail Information |
|||
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support, Video Technical Support |
|---|---|---|---|
| Power(Kw): | 52 | Automatic: | Yes, Semi-auto |
| Certification: | CE ISO | Plastic Type: | Termoplastic |
| Clamping Force: | 350T | Warranty: | 1 Year Free Spare Parts, Life-spen Service |
| Keyword: | Phone Cover Machine | ||
| Highlight: | Low Work Table Injection Molding Machine Vertical,350 Ton Injection Molding Machine Vertical,350T Low Work Table Injection Molding Machine |
||
Product Description
350T Low Work Table Vertical Injection Molding Machine With Single Slide Table JTTD-3500D
Clamping Force: 350T
Vertical clamping, vertical injection
Easy to set torque , speed, deceleration distance and stand number segmentation
Computer programme control rotary table direction , forward-rotating, reverse-rotating, forward and reverse alternative rotating.
| . Unit | JTTD-3500D | ||||
| NJECTION SYSTEM 射出系统 | 螺杆直径 Screw Diameter | mm | 55 | 60 | 65 |
| 射出重量 Injection capacity | g | 598 | 712 | 836 | |
| oz | 21 | 25 | 29 | ||
| 射出压力 Injection Pressure | kg/cm² | 2083 | 1750 | 1491 | |
| 射出率 Injection Rate | cm³/s | 280 | 333 | 391 | |
| 射出距离 Injection distance | mm | 240 | |||
| 螺杆转速 Screw rotation speed | rpm | 0-250 | |||
| CLAMPING SYSTEM锁 模 系 统 |
锁模力 Clamping Force | tons | 350 | ||
| 开模力 Opening Force | tons | 29 | |||
| 锁模板尺寸 Table Size | mm | 1600x1400 | |||
| 最小模厚 Min Mold Thickness | mm | 500 | |||
| 开模行程 Opeining Stroke | mm | 550 | |||
| 顶出力 Ejection force | tons | 11 | |||
| 顶出行程 Ejection stroke | mm | 120 | |||
| OTHER其 它 |
作动油量 Oil Tank Capacity | Q | 600 | ||
| 泵浦吐出量 Pump Output | tons | 42 | |||
| 电热功率 Electric Heating Power | hp(kw) | 21 | |||
| 机器外形尺寸 Machine Dimensions(LxWxH) | m | 3.58x2.51x5.12 | |||
| 理论重量 Machine Weight | tons | 32 | |||
