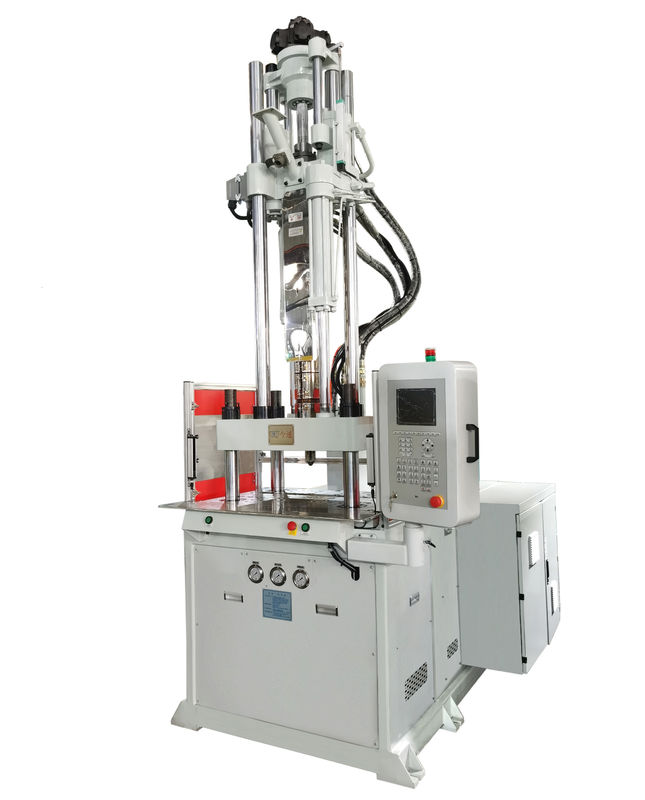

85T Vertical Plastic Injection Machine For TPU Phone Cover Case
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Certification: | CE ISO |
| Model Number: | JTT-850 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $12,500.00/pieces 1-2 pieces |
| Packaging Details: | plastic film packing for Semi auto vertical plastic injection molding machine factory 85T |
| Supply Ability: | 60 Piece/Pieces per Month Semi auto vertical plastic injection molding manufacturers 85T |
|
Detail Information |
|||
| Plastic Processed: | PC, ABS, PVC, PA | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 150 |
| Mold Height(mm): | 250 - 500 Mm | Ejector Number: | 1 |
| Ejector Stroke(mm): | 75 Mm | Ejector Force(kN): | 33 KN |
| Theoretical Shot Volume(cm³): | 275 Cm³ | Injection Rate (g/s): | 167 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 250 G |
| Screw Speed (rpm): | 0 - 205 Rpm | Screw Diameter (mm): | 50 Mm |
| Screw L/D Ratio: | 22 | Distance Between Tie Bars: | 500mm |
| Weight (KG): | 4500 Kg | Type: | Other |
| Open Stroke(mm): | 500 Mm | Power (kW): | 21.6 KW |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, PLC, Pressure Vessel |
| Injection Weight: | 0-250G | Injection Rate: | 82-167CM3/S |
| Opening Stroke: | 250MM | Screw Diameter: | 35mm 40mm 45mm 50mm |
| Screw Stroke: | 140mm | Product Name: | 85T Plastic Injection Molding Machine JTT-850 For TPU Phone Cover Case |
| Opening Force: | 10.5T | Platen Size: | 740*500mm |
| After-sales Service Provided: | Video Technical Support | Port: | SHENZHEN |
| Highlight: | 85T Plastic Injection Machine,85T Vertical Plastic Injection Machine,TPU low pressure injection molding machines |
||
Product Description
85T Plastic Injection Molding Machine JTT-850 for TPU phone cover case
Semi auto vertical plastic injection molding machine manufacturers 85T JTT-850
Clamping Force: 85T
Max Injection Weight: 250g
Vertical clamping, vertical injection
Small volum, suitablefor small and medium insert parts molding;
High shot pressure, fast shot rate, best choice for insert goods molding. Use famous brand accessories for electrical control and hydraulic system, low noise, precise, durable. Vertical screw injection system, multi-stage temperature control, multi-stage injection pressure and rate, back pressure adjustment, suitable for accurate plastic fittings molding.
Automatically display fault, easy to repair. Optional energy-saving motor; infrared safty device, automatic thermostatic device, leakproof spring nozzle, computer display, double proportion hydraulic controller.
|
|
Model
|
|
JTT-850
|
|
Injection system
|
Screw Diameter
|
mm
|
50
|
|
|
Injection Pressure
|
kg/cm2
|
1064
|
|
|
Theoretical Shot Volume
|
cm3
|
373
|
|
|
Max Shot Weight
|
g
|
339
|
|
|
Injection Rate
|
cm3/sec
|
167
|
|
|
Screw Stroke
|
mm
|
190
|
|
|
Screw Speed
|
rpm
|
0-200
|
|
|
Nozzle Contact Force
|
tons
|
2.9
|
|
|
Nozzle Stroke
|
mm
|
220
|
|
|
Number of Temperature Control
|
-
|
4
|
|
|
Hopper Capacity
|
L
|
30
|
|
Clamping system
|
Clamping Force
|
tons
|
85
|
|
|
Opening Force
|
tons
|
10.5
|
|
|
Platen Size
|
mm
|
740x500
|
|
|
Distance Between Tie Bar
|
mm
|
555*305
|
|
|
Min Mold Height
|
mm
|
250/200
|
|
|
Opening Stroke
|
mm
|
250
|
|
|
Max Open Daylight
|
mm
|
500/450
|
|
|
Ejector Force
|
tons
|
3.3
|
|
|
Ejector Stroke
|
mm
|
75
|
|
Oil pressure system
|
Max Hydraulic Pressure
|
kg/cm2
|
140
|
|
|
Pump Output
|
L/min
|
76
|
|
|
Oil Reservior Capacity
|
L
|
280
|
|
|
Cooling Water Consumption
|
/hr
|
1200-1500
|
|
|
Pump Moter Power
|
KW
|
15
|
|
|
Barrel Heating Power
|
kw
|
5.6
|
|
|
Total Power
|
kw
|
20..6
|
|
Other
|
Machine Weight
|
tons
|
3.5
|
|
|
Machine Dimension
|
M
|
1.8*1.30*3.01
|
|
|
Shipping Weight
|
tons
|
3.58(0.98/ 2.6)
|
|
|
Shipping Measurement
|
M
|
1*0.85*1.85 / 2.1*1.4*2.15
|
Main Features
1) Vertical clamping, vertical injection, small volume, precise molding, available to small and medium hardware insert molding.
2)Vertical clamping,even pressure,accurate low-voltage protection,smooth injection and molding
3) Scalable computer programs, automatically removing, embedded devices, and other connections allow fully automatic operation of the whole machine.
4) Optional energy-saving motor
MORE VIDEOS : https://www.youtube.com/channel/UCRNaDV0sigtynL-Q51NxWAw?view_as=subscriber
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
