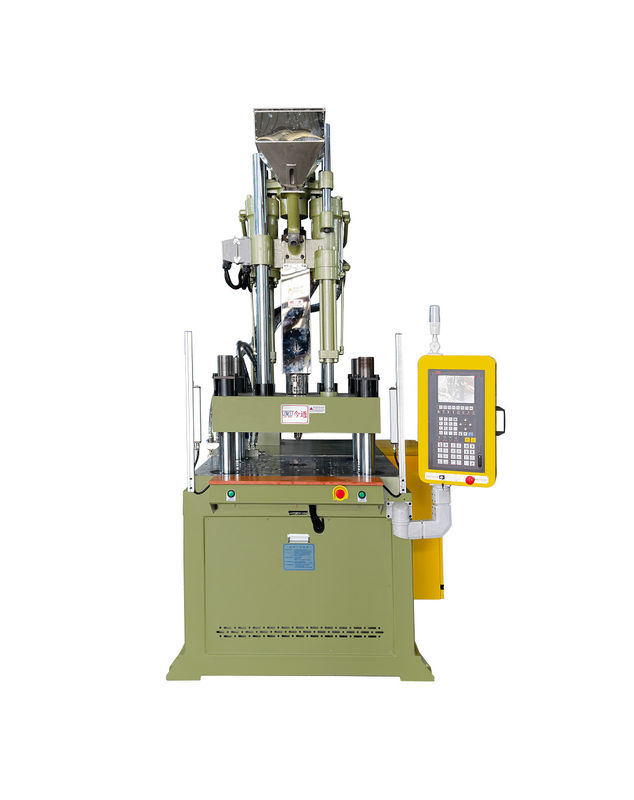

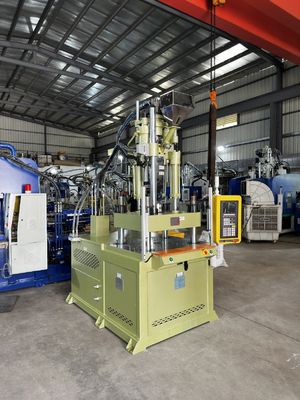

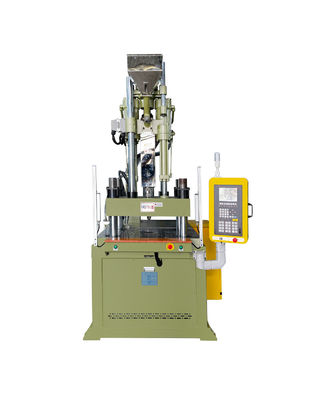

120T Plastic Vertical Injection Moulding Machine For Umbrella Bones
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Certification: | CE ISO |
| Model Number: | JTT-1200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | PLYWOOD CASE |
| Delivery Time: | 35 days |
| Supply Ability: | 600 Piece/Pieces per Month JINTONG vertical injection molding machine JTT-1200 |
|
Detail Information |
|||
| Plastic Processed: | PP, PC, ABS, PVC, PA, PE, LDPE, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Machine Type: | Hydraulic |
| Type: | Other | Warranty: | 1 Year |
| Key Selling Points: | High Safety Level | Applicable Industries: | Manufacturing Plant |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Core Components: | Motor, Pump, PLC, Pressure Vessel | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Product Name: | Vertical Injection Molding Machine 120T For Umbrella Bones | Opening Force: | 120T |
| After Warranty Service: | Video Technical Support | ||
| Highlight: | semiauto Plastic Vertical Injection Moulding Machine,120T Plastic Vertical Injection Moulding Machine,Umbrella Bones semi auto molding machine |
||
Product Description
vertical injection molding machine 120T for umbrella bones
vertical injection molding machine JTT-1200
Clamping Force: 120T
Injection Weight: 50-321G
Vertical clamping, vertical injection
Optional saving energy motor
Combined with conveyor system used on production line
| Model | JTT-1200 SF | ||
| injection system | Screw Diameter | mm | 45 50 |
| Injection Pressure | kg/cm2 | 1314 1065 | |
| Theoretical Shot Volume | cm3 | 334 412 | |
| Injection Rate | cm3/sec | 223 275 | |
| Screw Stroke | mm | 210 | |
| Screw Speed | rpm | 0-200 | |
| Injection speed | mm/s | 140 | |
| Nozzle Contact Force | tons | 3.3 | |
| Nozzle Stroke | mm | 300 | |
| Number of Temperature Control | - | 5 | |
| Hopper Capacity | L | 30 | |
| clamping system | Clamping Force | tons | 120 |
| Opening Force | tons | 15 | |
| Platen Size | mm | 835*665 | |
| Distance Between Tie Bar | mm | 630*460 | |
| Min Mold Height | mm | 200 | |
| Opening Stroke | mm | 200 | |
| Max Open Daylight | mm | 400 | |
| Ejector Force | tons | 2.7 | |
| Ejector Stroke | mm | 50 | |
| oil pressure system | Max Hydraulic Pressure | kg/cm2 | 140 |
| Pump Output | L/min | 126 | |
| Cooling Water Consumption | /hr | 1500-1800 | |
| Pump Moter Power | KW | 20 | |
| Barrel Heating Power | kw | 11 | |
| Total Power | kw | 31 | |
| other | Machine Weight | tons | 5 |
| Machine Dimension | m | 2.2*1.5*3.5 | |
Main Features
With lower mold can slid out towards operation direction, inserts, placed parts and finished products are all finished outside the clamping unit. It works safely and suits for those inserts that are hard to place.
Suitable for all kinds of insert molding.
Nitrided steel screw and barrel, directly driven by high torque motor, with multi stages injection pressure, better plasticization.
Vertical compression clamping system, closing mold with high speed lower pressure as well as multi pressure control and prolong mold using life.
Electric protection device can not happen wrong action and maintain the operators safety.
Auto life injection base, it is easy for replacement of material and mold.
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
