Hydraulic Desktop Plastic Injection Molding Machine With 260mm Distance Between Tie Bars
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Certification: | ISO9001 CE |
| Model Number: | JT-150 |
Payment & Shipping Terms:
| Price: | $3,200.00 - $5,000.00/pieces |
|---|---|
| Packaging Details: | plastic film packing for Desktop tie bar Plastic vertical injection molding machine |
| Supply Ability: | 600 Piece/Pieces per Month Desktop tie bar Plastic vertical injection molding machine |
|
Detail Information |
|||
| Plastic Processed: | PP, PVC | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Ejector Stroke(mm): | 35 Mm |
| Ejector Force(kN): | 13 KN | Theoretical Shot Volume(cm³): | 49 Cm³ |
| Injection Rate (g/s): | 30 G/s | Machine Type: | Hydraulic |
| Injection Weight (g): | 45 G | Screw Diameter (mm): | 25 Mm |
| Distance Between Tie Bars: | 260mm | Weight (KG): | 650 |
| Type: | Other | Open Stroke(mm): | 300 Mm |
| Power (kW): | 6.7 KW | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | None | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Motor, Pump, Pressure Vessel, Engine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support |
| Screw Diameter: | 20mm 25mm | Screw Stroke: | 100mm |
| Product Name: | Desktop Tie Bar Plastic Vertical Injection Molding Machine JT-150 | Opening Force: | 7T |
| Platen Size: | 450*280mm | Max Daylight: | 260/200mm |
| Min Old Height: | 100/40mm | Ejector Force: | 1.3T |
| Machine Dimension(L*W*H): | 1.38*0.85*2.1m | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Local Service Location: | United States, France, Germany, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Thailand, Malaysia, Colombia, Bangladesh, South Africa, Ukraine | Marketing Type: | Ordinary Product |
| Port: | SHENZHEN | ||
| Highlight: | Hydraulic Desktop Plastic Injection Molding Machine,ISO9001 Desktop Plastic Injection Molding Machine |
||
Product Description
Other Desktop Plastic Injection Molding Machine With 260mm Distance Between Tie Bars

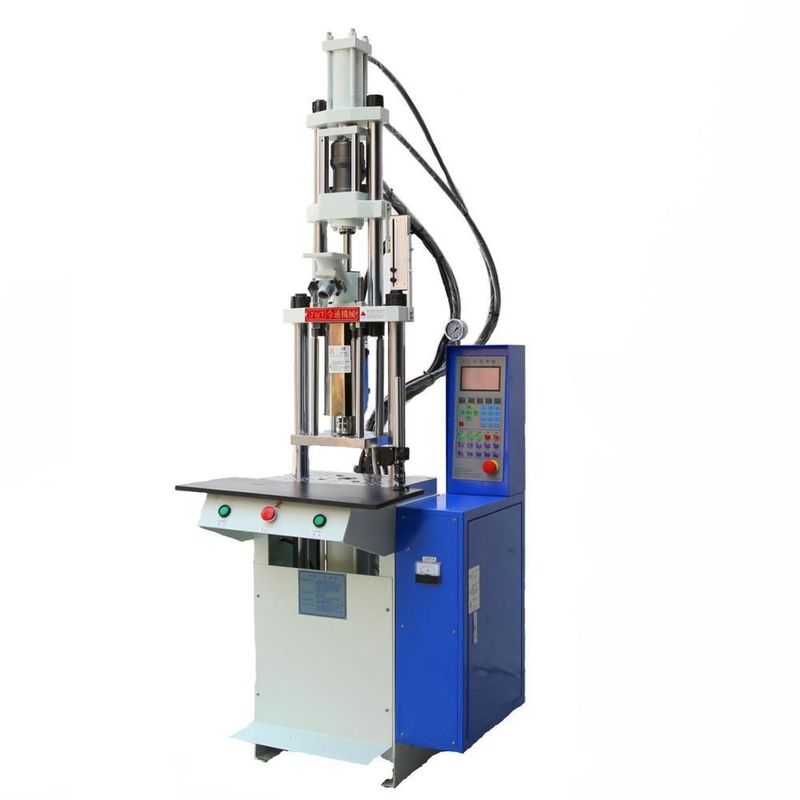

Desktop tie bar Plastic vertical injection molding machine JT-150
Clamping Force: 15T
Injection Weight: 29-45g
Vertical clamping, vertical injection
Small volum, suitablefor small and medium insert parts molding;
High shot pressure, fast shot rate, best choice for insert goods molding. Use famous brand accessories for electrical control and hydraulic system, low noise, precise, durable. Vertical screw injection system, multi-stage temperature control, multi-stage injection pressure and rate, back pressure adjustment, suitable for accurate plastic fittings molding.
Automatically display fault, easy to repair. Optional energy-saving motor; infrared safty device, automatic thermostatic device, leakproof spring nozzle, computer display, double proportion hydraulic controller.
Main Features
1) Vertical clamping, vertical injection, small volume, precise molding, available to small and medium hardware insert molding.
2)Vertical clamping,even pressure,accurate low-voltage protection,smooth injection and molding
3) Scalable computer programs, automatically removing, embedded devices, and other connections allow fully automatic operation of the whole machine.
4) Optional energy-saving motor
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
