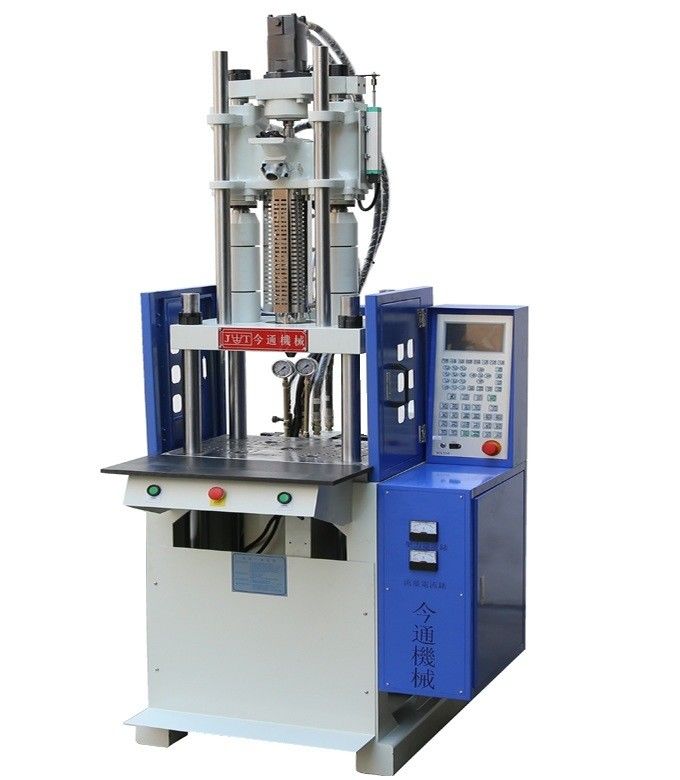

45T Plastic Vertical Injection Moulding Machine 110 Cm3 Theoretical Shot Volume For PVC Protector
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-450 |
Payment & Shipping Terms:
| Price: | $10,500.00/pieces 1-4 pieces |
|---|---|
| Packaging Details: | plastic film packing forPVC protector vertical injection molding machine 45T |
| Supply Ability: | 600 Piece/Pieces per Month PVC protector vertical injection molding machine 45T |
|
Detail Information |
|||
| Plastic Processed: | PVC | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 80 |
| Mold Height(mm): | 100 - 320 Mm | Ejector Stroke(mm): | 35 Mm |
| Ejector Force(kN): | 13 KN | Theoretical Shot Volume(cm³): | 110 Cm³ |
| Injection Rate (g/s): | 71 G/s | Machine Type: | Hydraulic |
| Injection Weight (g): | 100 G | Screw Speed (rpm): | 1 - 220 Rpm |
| Screw Diameter (mm): | 35 Mm | Screw L/D Ratio: | 24 |
| Distance Between Tie Bars: | 410mm | Weight (KG): | 1500 Kg |
| Type: | Other | Open Stroke(mm): | 400 Mm |
| Power (kW): | 9 KW | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | None | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Pump, PLC, Pressure Vessel | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Screw Diameter: | 20mm 30mm 35mm | Screw Stroke: | 120mm |
| Product Name: | PVC Protector Vertical Injection Molding Machine 45T JTT-450 | Platen Size: | 580*430mm |
| Ejector Force: | 1.3T | Machine Dimension(L*W*H): | 1.66*1.17*2.34m |
| Marketing Type: | Ordinary Product | Port: | SHENZHEN |
| Highlight: | 45T Plastic Vertical Injection Moulding Machine,PVC Plastic Vertical Injection Moulding Machine |
||
Product Description
110 Cm3 Theoretical Shot Volume Vertical Injection Molding Machine 45T For PVC Protector
PVC protector vertical injection molding machine 45T JTT-450
Clamping Force: 45T
Injection Weight: 54-105g
Vertical clamping, vertical injection
Small volum, suitablefor small and medium insert parts molding;
High shot pressure, fast shot rate, best choice for insert goods molding. Use famous brand accessories for electrical control and hydraulic system, low noise, precise, durable. Vertical screw injection system, multi-stage temperature control, multi-stage injection pressure and rate, back pressure adjustment, suitable for accurate plastic fittings molding.
Automatically display fault, easy to repair. Optional energy-saving motor; infrared safty device, automatic thermostatic device, leakproof spring nozzle, computer display, double proportion hydraulic controller.
Main Features
1) Vertical clamping, vertical injection, small volume, precise molding, available to small and medium hardware insert molding.
2)Vertical clamping,even pressure,accurate low-voltage protection,smooth injection and molding
3) Scalable computer programs, automatically removing, embedded devices, and other connections allow fully automatic operation of the whole machine.
4) Optional energy-saving motor
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
