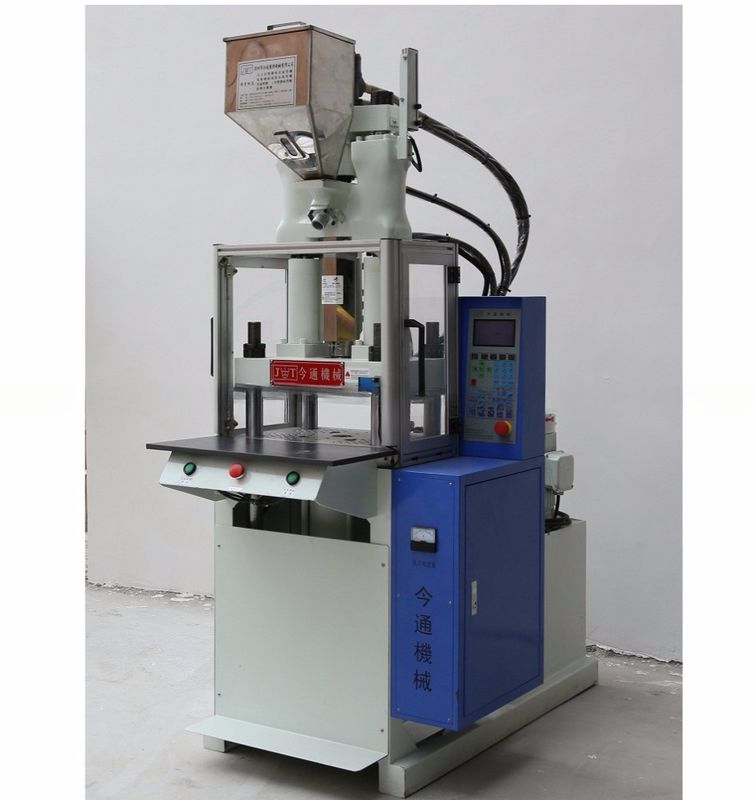

35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-350 |
Payment & Shipping Terms:
| Price: | $8,200.00/pieces 1-4 pieces |
|---|---|
| Packaging Details: | plywood for manual vertical injection molding machine for chip 35T |
| Supply Ability: | 600 Piece/Pieces per Month manual vertical injection molding machine for USB 35T |
|
Detail Information |
|||
| Plastic Processed: | PP, PVC, PA, ABS/PP | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 50 |
| Mold Height(mm): | 110 - 240 Mm | Ejector Number: | 1 |
| Ejector Stroke(mm): | 45 Mm | Ejector Force(kN): | 13 KN |
| Theoretical Shot Volume(cm³): | 88 Cm³ | Injection Rate (g/s): | 50 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 80 G |
| Screw Speed (rpm): | 1 - 205 Rpm | Screw Diameter (mm): | 32 Mm |
| Screw L/D Ratio: | 24 | Distance Between Tie Bars: | 340mm |
| Weight (KG): | 1400 Kg | Type: | Other |
| Open Stroke(mm): | 350 Mm | Power (kW): | 6.7 KW |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Pump, PLC, Pressure Vessel |
| Opening Stroke: | 180MM | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Screw Diameter: | 20cm 25cm 30cm | Screw Stroke: | 100mm |
| Product Name: | Manual Vertical Injection Molding Machine For Chip JTT-350 | Opening Force: | 6.5T |
| Platen Size: | 545*390mm | Max Daylight: | 340/280mm |
| Min Old Height: | 160/100mm | Ejector Force: | 1.3T |
| Port: | SHENZHEN | ||
| Highlight: | 35T Plastic Vertical Injection Moulding Machine,Automatic Plastic Vertical Injection Moulding Machine,Automatic Vertical Plastic Molding Machine |
||
Product Description
Max Daylight 340/280mm 35T Vertical Injection Molding Machine For Chip Automatic
Product Description
manual vertical injection molding machine for chip 35T JTT-350
Clamping Force: 35T
Injection Weight: 45-72g
Vertical clamping, vertical injection
Small volum, suitablefor small and medium insert parts molding;
Double injection cylinder system, high shot pressure, fast shot rate, best choice for insert goods molding. Use famous brand accessories for electrical control and hydraulic system, low noise, precise, durable. Vertical screw injection system, multi-stage temperature control, multi-stage injection pressure and rate, back pressure adjustment, suitable for accurate plastic fittings molding.
Automatically display fault, easy to repair. Optional energy-saving motor; infrared safty device, automatic thermostatic device, leakproof spring nozzle, computer display, double proportion hydraulic controller.
Main Features
1) vertical clamping, vertical injection,
2) clamping force, injection weight and shot speed can be changed according to actual demand.
3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity
Certifications

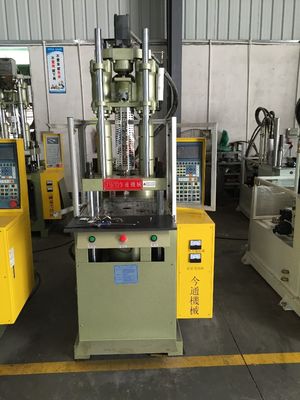

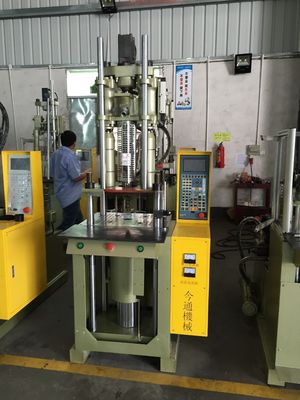

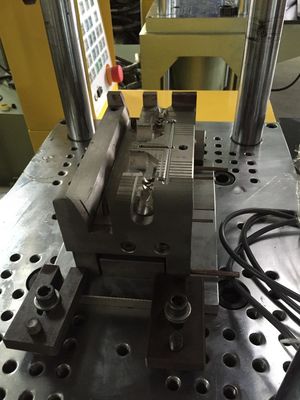

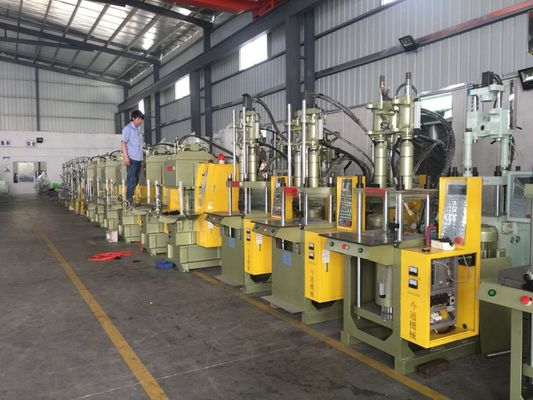

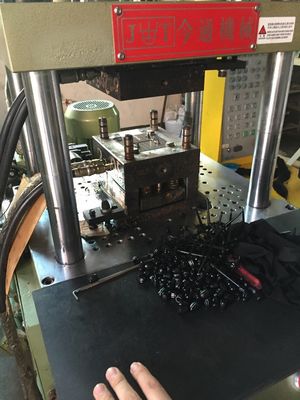

Detailed Images
Our Service
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
