200MM Opening Stroke 55T Hydraulic Vertical Injection Molding Machine With 2 Working Table
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-550 |
Payment & Shipping Terms:
| Price: | $14,000.00/pieces 1-4 pieces |
|---|---|
| Packaging Details: | plastic film packing for 55T vertical injection molding machine with 2 working table |
| Supply Ability: | 600 Piece/Pieces per Month 55T vertical injection molding machine with 2 working table |
|
Detail Information |
|||
| Plastic Processed: | PP, PVC | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 120 |
| Mold Height(mm): | 110 - 360 Mm | Ejector Number: | 1 |
| Ejector Stroke(mm): | 45 Mm | Ejector Force(kN): | 13 KN |
| Theoretical Shot Volume(cm³): | 175 Cm³ | Injection Rate (g/s): | 90 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 160 G |
| Screw Speed (rpm): | 1 - 205 Rpm | Screw Diameter (mm): | 40 Mm |
| Screw L/D Ratio: | 22 | Distance Between Tie Bars: | 375mm |
| Weight (KG): | 2100 Kg | Type: | Other |
| Open Stroke(mm): | 500 Mm | Power (kW): | 12 KW |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, PLC, Pressure Vessel |
| Opening Stroke: | 200MM | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Screw Diameter: | 32mm 38mm 42mm | Screw Stroke: | 140mm |
| Product Name: | 55T Vertical Injection Molding Machine With 2 Working Table JTT-550 | Opening Force: | 8.3T |
| Platen Size: | 420*270mm | Max Daylight: | 375mm |
| Min Old Height: | 175mm | Ejector Force: | 1.3T |
| Port: | SHENZHEN | ||
| Highlight: | 55T Vertical Injection Molding Machine,Hydraulic Vertical Injection Molding Machine |
||
Product Description

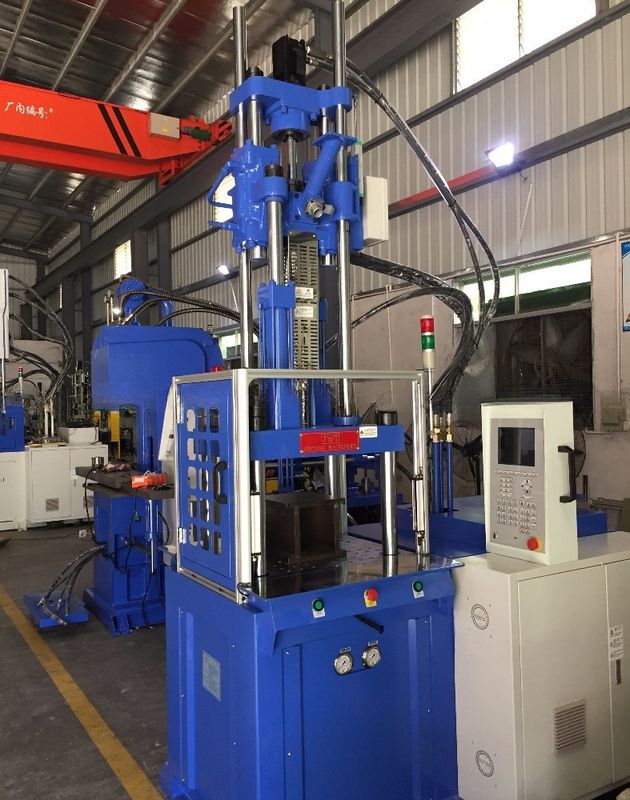

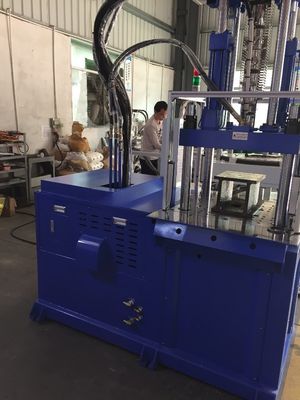

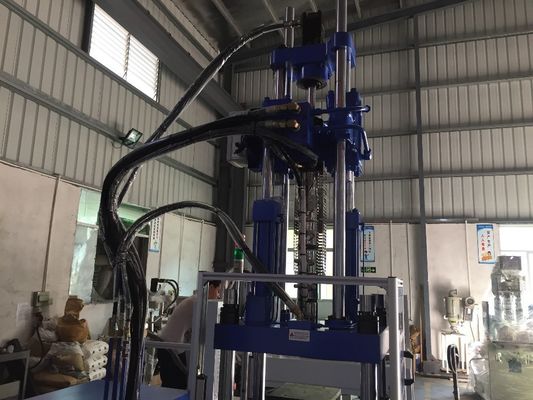

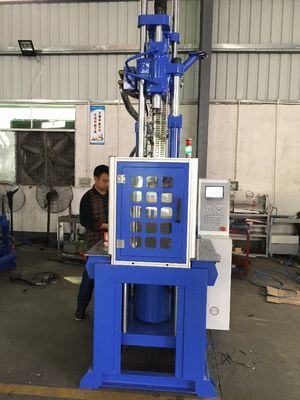

200MM Opening Stroke 55T Vertical Injection Molding Machine With 2 Working Table
55T vertical injection molding machine with 2 working table
Clamping Force: 55T
Max injection Weight: 177g
Vertical clamping, horizontal injection
3 or 4 section temperature controller
Without column, easy to operation
Fixed low die and movable up die to avoid insert parts shift
Low pressure opening mold unit to protect mold safty
Alternative silde table or rotary table
Main Features
1) Vertical clamping, horizontal injection, no tie bar
2) Single sliding table, one top die, one bottom die
3) The lower die can slip outside, and inserted action can be safer, and work efficiency improves. And also the finished goods release outside.
4) Use energy-saving motor to save 71% electricity power
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
