35T Small Vertical Injection Molding Machine 1300Kg Weight 6.7KW Power
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-350 |
Payment & Shipping Terms:
| Price: | $8,200.00/pieces 1-4 pieces |
|---|---|
| Packaging Details: | plastic film packing for small plastic vertical injection molding machine price 35T |
| Supply Ability: | 600 Piece/Pieces per Month small plastic vertical injection molding machine price 35T |
|
Detail Information |
|||
| Plastic Processed: | PP, ABS, PVC | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 70 |
| Mold Height(mm): | 80 - 300 Mm | Ejector Number: | 1 |
| Ejector Stroke(mm): | 45 Mm | Ejector Force(kN): | 13 KN |
| Theoretical Shot Volume(cm³): | 90 Cm³ | Injection Rate (g/s): | 88 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 80 G |
| Screw Speed (rpm): | 1 - 215 Rpm | Screw Diameter (mm): | 32 Mm |
| Screw L/D Ratio: | 22 | Distance Between Tie Bars: | 340mm |
| Weight (KG): | 1300 Kg | Type: | Other |
| Open Stroke(mm): | 400 Mm | Power (kW): | 6.7 KW |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, PLC, Pressure Vessel, Screw |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Screw Diameter: | 20cm 25cm 30cm |
| Screw Stroke: | 100mm | Product Name: | Small Plastic Vertical Injection Molding Machine Price 35T JTT-350 |
| Opening Force: | 6.5T | Platen Size: | 545*390mm |
| Max Daylight: | 340/280mm | Min Old Height: | 160/100mm |
| Ejector Force: | 1.3T | Machine Dimension(L*W*H): | 1.59*1.29*2.2m |
| Port: | SHENZHEN | ||
| Highlight: | 35T Small Vertical Injection Molding Machine,Small Vertical Injection Molding Machine 1300Kg,Small Vertical Injection Molding Machine 6.7KW |
||
Product Description

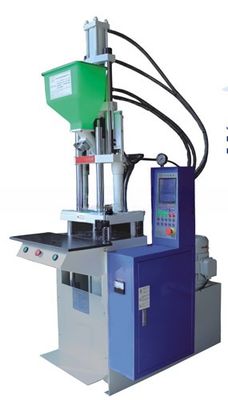

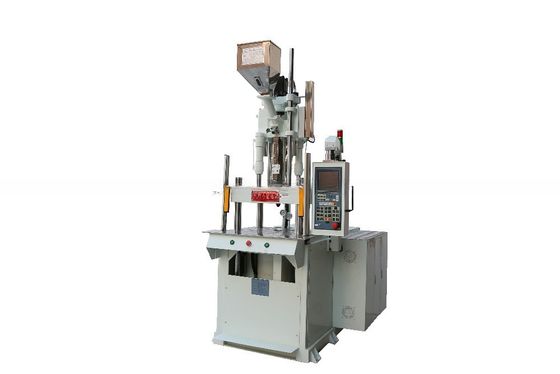

35T Small Vertical Injection Molding Machine With 1300 Kg Weight And 6.7 KW Power

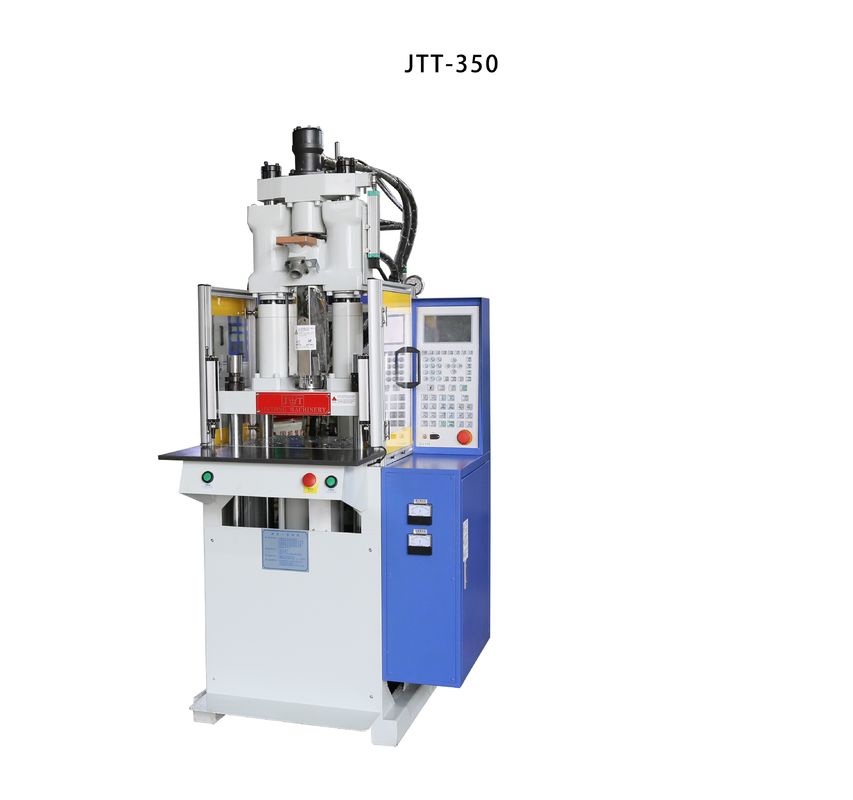

Small plastic vertical injection molding machine price 35T JTT-350
Clamping Force: 35T
Injection Weight: 45-72g
Vertical clamping, vertical injection
Small volum, suitablefor small and medium insert parts molding;
Double injection cylinder system, high shot pressure, fast shot rate, best choice for insert goods molding. Use famous brand accessories for electrical control and hydraulic system, low noise, precise, durable. Vertical screw injection system, multi-stage temperature control, multi-stage injection pressure and rate, back pressure adjustment, suitable for accurate plastic fittings molding.
Automatically display fault, easy to repair. Optional energy-saving motor; infrared safty device, automatic thermostatic device, leakproof spring nozzle, computer display, double proportion hydraulic controller.
Main Features
1) vertical clamping, vertical injection,
2) clamping force, injection weight and shot speed can be changed according to actual demand.
3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
