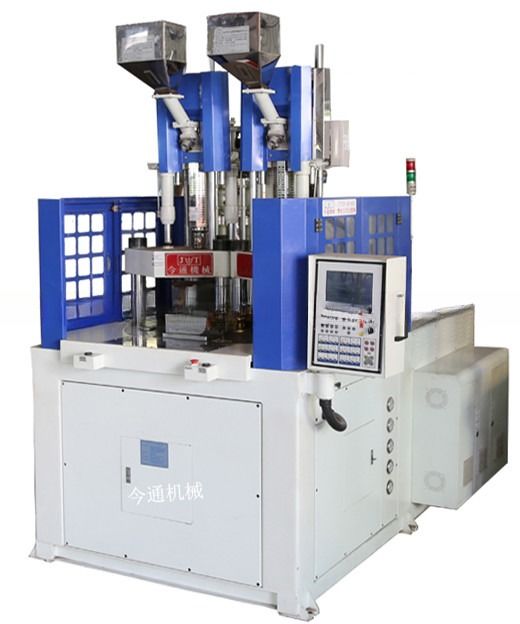

Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-550 2V3R |
Payment & Shipping Terms:
| Price: | $37,000.00/pieces 1-2 pieces |
|---|---|
| Packaging Details: | plastic film packing for two color injection molding machine price JTT-550 2V3R |
| Supply Ability: | 600 Piece/Pieces per Month two color injection molding machine price JTT-550 2V3R |
|
Detail Information |
|||
| Plastic Processed: | PP, TPE | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 200 |
| Mold Height(mm): | 120 - 350 Mm | Ejector Number: | Other |
| Ejector Stroke(mm): | 45 Mm | Ejector Force(kN): | 13 KN |
| Theoretical Shot Volume(cm³): | 118 Cm³ | Injection Rate (g/s): | 72 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 108 G |
| Screw Speed (rpm): | 1 - 190 Rpm | Screw Diameter (mm): | 32 Mm |
| Screw L/D Ratio: | 24 | Distance Between Tie Bars: | 380mm |
| Weight (KG): | 2500 Kg | Type: | Other |
| Open Stroke(mm): | 300 Mm | Power (kW): | 14.5kW |
| Warranty: | 1 Year | Key Selling Points: | Flexible Manufacturing |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Pressure Vessel |
| Injection Weight: | 68-90G | Injection Rate: | 69-88CM3/S |
| Opening Stroke: | 180MM | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Screw Diameter: | 18mm 22mm 25mm | Oil Tank: | 300L |
| Product Name: | Two Color Injection Molding Machine Price JTT-550 2V3R | Rotary Table Diameter: | 940mm |
| Top Platen Size: | 460*380mm | Max Daylight: | 280/380mm |
| Port: | SHENZHEN | ||
| Highlight: | Hydraulic Two Color Vertical Injection Molding Machine,Two Color Vertical Injection Molding Machine 14.5kW,2 Color Injection Molding Machine Vertical |
||
Product Description
460*380mm Top Platen Size Hydraulic Two Color Injection Molding Machine JTT-550 2V3R
Two color injection molding machine price JTT-550 2V3R
Clamping Force: 55T
Injection Weight: 68-90g
1. Vertical clamping, vertical injection, easy to change color or material, well mixed, rapid temperature rise
2. Different injection combination can be chosen to reach best productivity and less power loss according to different shot weight
3. One molding for dual-color/material embeded products, multi-sation rotary design, stable rotation, precise position, easy to put and pick out products
4. Injection system can be used individually
5. two color/material inject at the same time, suitable for all kinds of mold

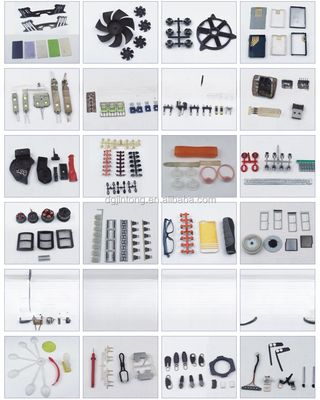

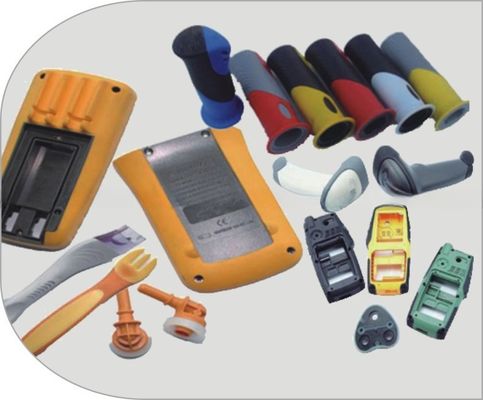

6. samples: tooth brush, trademark, different kinds of accessories,handle of bicycle or electric vehicles
Main Features
Don’t ejector mold after finishing first injection system, and direct transfer to second injection system, and molding after second injection, without shrink or excessive glue
Optional automatic device for taking in or out to make unmanned automation equipment
Use special central shunt valve design, single direction rotary to avoid problems with water cooling lines.
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
