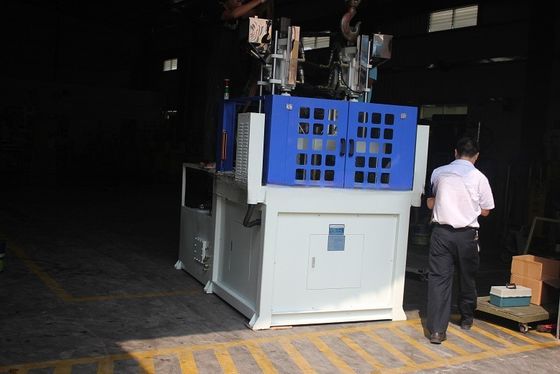

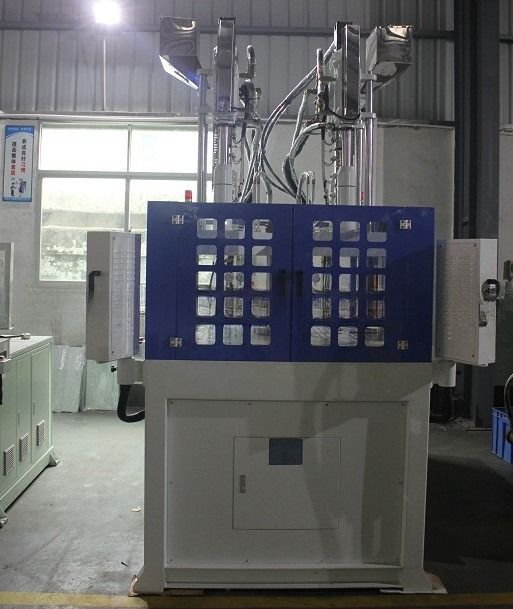

30mm Screw Diameter Multi Color Vertical Plastic Injection Molding Machine JTT-550 2V-3R
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-550 2V3R |
Payment & Shipping Terms:
| Price: | $45,000.00/pieces 1-4 pieces |
|---|---|
| Packaging Details: | plywood for multi color/material injection molding machine |
| Supply Ability: | 60 Piece/Pieces per Month multi color/material injection molding machine |
|
Detail Information |
|||
| Plastic Processed: | PP, PPR, ABS/PP, TPR | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 200 |
| Mold Height(mm): | 100 - 400 Mm | Ejector Number: | 2 |
| Ejector Stroke(mm): | 45 Mm | Ejector Force(kN): | 13 KN |
| Theoretical Shot Volume(cm³): | 176 Cm³ | Injection Rate (g/s): | 80 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 160 G |
| Screw Speed (rpm): | 1 - 205 Rpm | Screw Diameter (mm): | 30 Mm |
| Screw L/D Ratio: | 22 | Distance Between Tie Bars: | 380mm |
| Weight (KG): | 3200 Kg | Type: | Other |
| Open Stroke(mm): | 350 Mm | Power (kW): | 14.5 KW |
| Warranty: | 1 Year | Key Selling Points: | EFFIENCY |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, PLC, Pressure Vessel, Engine |
| Opening Stroke: | 180MM | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Screw Diameter: | 18mm 22mm 25mm | Oil Tank: | 300L |
| Product Name: | Multi Color/material Injection Molding Machine JTT-550 2V3R | Rotary Table Diameter: | 940mm |
| Top Platen Size: | 460*380mm | Max Daylight: | 280/380mm |
| Min Old Height: | 100/200mm | Ejector Force: | 1.3T |
| Port: | SHENZHEN | ||
| Highlight: | Multi Color Vertical Plastic Injection Molding Machine,JINTONG Vertical Plastic Injection Molding Machine |
||
Product Description
30mm Screw Diameter Multi-Color Vertical Plastic Injection Molding Machine JTT-550 2V-3R
Multi color/material injection molding machine JTT-550 2V3R
Clamping Force: 55T
Injection Weight: 68-90g
1. Vertical clamping, vertical injection, easy to change color or material, well mixed, rapid temperature rise
2. Different injection combination can be chosen to reach best productivity and less power loss according to different shot weight
3. One molding for dual-color/material embeded products, multi-sation rotary design, stable rotation, precise position, easy to put and pick out products
4. Injection system can be used individually
5. two color/material inject at the same time, suitable for all kinds of mold
6. samples: tooth brush, trademark, different kinds of accessories,handle of bicycle or electric vehicles
Main Features
Don’t ejector mold after finishing first injection system, and direct transfer to second injection system, and molding after second injection, without shrink or excessive glue
Optional automatic device for taking in or out to make unmanned automation equipment
Use special central shunt valve design, single direction rotary to avoid problems with water cooling lines.
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
