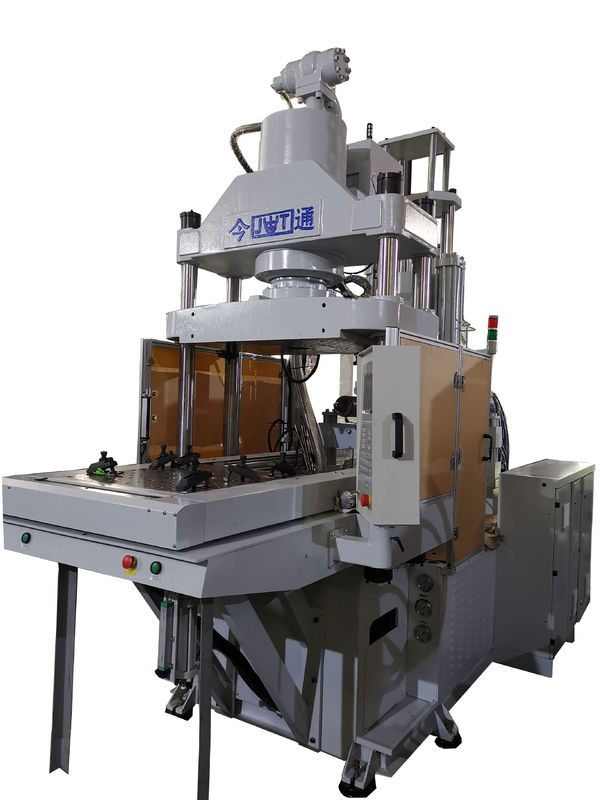

160T Single Sliding Table BMC Injection Molding Machine JTKR-1600D
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Certification: | ISO9001 CE |
| Model Number: | JTKR-1600D BMC |
Payment & Shipping Terms:
| Price: | $30,500.00 - $38,000.00/pieces |
|---|---|
| Packaging Details: | plastic film packing for Automatic bakelite BMC/DMC single slide table injection molding machine 160T |
| Supply Ability: | 600 Piece/Pieces per Month Automatic bakelite BMC rotary injection molding machine 85T |
|
Detail Information |
|||
| Plastic Processed: | BMC | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Ejector Stroke(mm): | 75 Mm |
| Ejector Force(kN): | 33 KN | Theoretical Shot Volume(cm³): | 303 Cm³ |
| Injection Rate (g/s): | 127 G/s | Machine Type: | Hydraulic |
| Injection Weight (g): | 400 G | Screw Diameter (mm): | 50 Mm |
| Distance Between Tie Bars: | 760mm | Weight (KG): | 6500 |
| Type: | Other | Open Stroke(mm): | 420 Mm |
| Power (kW): | 32.6 KW | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | None | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Motor, Pump, PLC, Pressure Vessel, Engine | Opening Stroke: | 350MM |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support | Screw Diameter: | 52mm 62mm |
| Screw Stroke: | 240mm | Product Name: | Automatic Bakelite BMC Injection Molding Machine JTKR-1600D BMC |
| Opening Force: | 29T | Max Daylight: | 600mm |
| Min Old Height: | 250mm | Ejector Force: | 2.9T |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Local Service Location: | United States, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Thailand, Malaysia, Australia, Colombia, Bangladesh, South Africa, Ukraine |
| Marketing Type: | Ordinary Product | Port: | SHENZHEN |
| Highlight: | Sliding Table BMC Injection Molding Machine,160T Sliding Table Injection Molding Machine |
||
Product Description
160T Accuracy BMC Single Slide Table Injection Molding Machine JTKR-1600D
160T accuracy BMC Single Slide Table Injection Molding Machine JTKR-1600D
Clamping Force: 160T
Injection Weight: 400g
Vertical clamping, horizontal injection
Easy to set torque , speed, deceleration distance and stand number segmentation
Single slide is convenient for worker to put insert and take out products
Optional energy-saving motor
Main Features
1) vertical clamping, horizontal injection,
2) clamping force, injection weight and shot speed can be changed according to actual demand.
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
