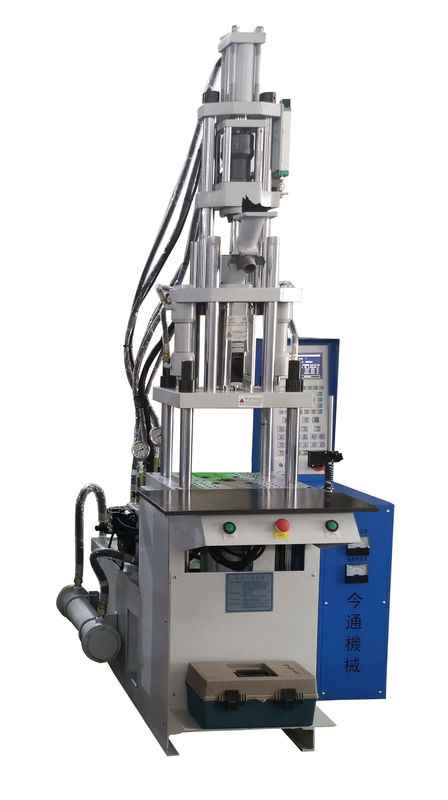

6kW Small Vertical Injection Molding Machine 20T Easy Operate For Manufacturing Plant
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Certification: | ISO9001 CE |
| Model Number: | JT-200 |
Payment & Shipping Terms:
| Price: | $4,200.00 - $5,200.00/pieces |
|---|---|
| Packaging Details: | plywood for Hydraulic ABS vertical injection molding machine 20T |
| Supply Ability: | 600 Piece/Pieces per Month Hydraulic ABS vertical injection molding machine 20T |
|
Detail Information |
|||
| Plastic Processed: | PP, PVC, PE | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Ejector Stroke(mm): | 35 Mm |
| Ejector Force(kN): | 13 KN | Theoretical Shot Volume(cm³): | 62 Cm³ |
| Injection Rate (g/s): | 38 G/s | Machine Type: | Hydraulic |
| Injection Weight (g): | 56 G | Screw Diameter (mm): | 28 Mm |
| Distance Between Tie Bars: | 260mm | Weight (KG): | 700 |
| Type: | Other | Open Stroke(mm): | 350 Mm |
| Power (kW): | 6kW | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | None | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Pump, PLC, Pressure Vessel, Engine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support |
| Screw Diameter: | 20mm 22 Mm 25mm 28mm | Screw Stroke: | 100mm |
| Product Name: | Hydraulic ABS Vertical Injection Molding Machine 20T JT-200 | Opening Force: | 7T |
| Platen Size: | 460*310mm | Max Daylight: | 220/260mm |
| Min Old Height: | 40/100mm | Ejector Force: | 1.3T |
| Machine Dimension(L*W*H): | 1.4*0.9*2.2m | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Local Service Location: | United States, France, Germany, Viet Nam, Brazil, Indonesia, Mexico, Russia, Thailand, Malaysia, Australia, Argentina, Colombia, Bangladesh, South Africa, Ukraine | Marketing Type: | Ordinary Product |
| Port: | SHENZHEN | ||
| Highlight: | 6kW Small Vertical Injection Molding Machine,Small Vertical Injection Molding Machine 20T |
||
Product Description
Small USB/MICRO CONNECTOR Vertical Injection Molding Machine 20T
Hydraulic ABS vertical injection molding machine 20T JTT-200
Clamping Force: 20T
Injection Weight: 29-56g
Vertical clamping, vertical injection
Small volum, suitablefor small and medium insert parts molding;
Double injection cylinder system, high shot pressure, fast shot rate, best choice for insert goods molding. Use famous brand accessories for electrical control and hydraulic system, low noise, precise, durable. Vertical screw injection system, multi-stage temperature control, multi-stage injection pressure and rate, back pressure adjustment, suitable for accurate plastic fittings molding.
Automatically display fault, easy to repair. Optional energy-saving motor; infrared safty device, automatic thermostatic device, leakproof spring nozzle, computer display, double proportion hydraulic controller.
Main Features
1) vertical clamping, vertical injection,
2) clamping force, injection weight and shot speed can be changed according to actual demand.
3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
