Hydraulic Double Slide Injection Molding Machine 85T 267 Cm3 Theoretical Shot Volume
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JC-850DM |
Payment & Shipping Terms:
| Price: | $29,000.00/pieces 1-2 pieces |
|---|
|
Detail Information |
|||
| Plastic Processed: | PVC | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 200 |
| Mold Height(mm): | 110 - 450 Mm | Ejector Number: | 2 |
| Ejector Stroke(mm): | 80 Mm | Ejector Force(kN): | 25 KN |
| Theoretical Shot Volume(cm³): | 267 Cm³ | Injection Rate (g/s): | 122 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 243 G |
| Screw Speed (rpm): | 1 - 168 Rpm | Screw Diameter (mm): | 45 Mm |
| Screw L/D Ratio: | 22 | Distance Between Tie Bars: | 480mm |
| Weight (KG): | 5000 Kg | Type: | Other |
| Open Stroke(mm): | 500 Mm | Power (kW): | 18.5 KW |
| Warranty: | 1 Year | Key Selling Points: | Energy Saving |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Pump, PLC, Pressure Vessel |
| After-sales Service Provided: | Free Spare Parts | Product Name: | 85T Plug Injection Molding Machine |
| Application: | Power Plug | Keyword: | Double Slide Table |
| Marketing Type: | Ordinary Product | ||
| Highlight: | Hydraulic Double Slide Injection Molding Machine,Double Slide Injection Molding Machine 85T |
||
Product Description
Hydraulic Double Slide Injection Molding Machine 85T 267 Cm3 Theoretical Shot Volume
Product Description
2017 SERVO plug double slide injection molding machine JC-850DM
Clamping Force: 85T
Injection Weight: 173-243g
Vertical clamping, horizontal injection
3 or 4 section temperature controller
Without column, easy to operation
Fixed low die and movable up die to avoid insert parts shift
Low pressure opening mold unit to protect mold safty
Alternative silde table or rotary table
|
|
Model
|
UNIT
|
JC-850DM
|
|
INJECTION SYSTEM
|
Screw Diameter
|
mm
|
42 45 50
|
|
|
Injection Pressure
|
kg/cm2
|
1429 1244 1008
|
|
|
Theoretical Shot Volume
|
cm3
|
233 267 330
|
|
|
PVC shot weight
|
g
|
255 293 360
|
|
|
Injection Rate
|
cm3/sec
|
106 122 151
|
|
|
Screw Stroke
|
mm
|
168
|
|
|
Screw Speed
|
rpm
|
0-160
|
|
|
Nozzle Contact Force
|
tons
|
3.9
|
|
|
Nozzle Stroke
|
mm
|
150
|
|
|
Number of Temperature Control
|
-
|
4
|
|
|
Hopper Capacity
|
L
|
50
|
|
CLAMPING SYSTEM
|
Clamping Force
|
tons
|
85
|
|
|
Opening Force
|
tons
|
13
|
|
|
Platen Size
|
mm
|
840*330
|
|
|
Distance Between Tie Bar
|
mm
|
-
|
|
|
Min Mold Height
|
mm
|
210
|
|
|
Opening Stroke
|
mm
|
270
|
|
|
Max Open Daylight
|
mm
|
480
|
|
|
Ejector Force
|
tons
|
2.5
|
|
|
Ejector Stroke
|
mm
|
80
|
|
|
Slide Stroke
|
mm
|
500
|
|
|
Rotary Station
|
kg
|
--
|
|
|
Max Mold Weight
|
kg
|
150
|
|
|
Station Clearance
|
mm
|
±0.02
|
|
OIL PRESSURE SYSTEM
|
Max Hydraulic Pressure
|
kg/cm2
|
140
|
|
|
Pump Output
|
L/min
|
65
|
|
|
Oil Reservior Capacity
|
L
|
300
|
|
|
Cooling Water Consumption
|
/hr
|
1000-1200
|
|
|
Pump Moter Power
|
KW
|
11
|
|
|
Barrel Heating Power
|
kw
|
7.5
|
|
|
Total Power
|
kw
|
18.5
|
|
OTHER
|
Machine Weight
|
tons
|
5.8
|
|
|
Machine Dimension
|
m
|
3.2*2.1*2.1
|
|
|
|
|
|
Main Features
1) Vertical clamping, horizontal injection, no tie bar
2) Single sliding table, one top die, one bottom die
3) The lower die can slip outside, and inserted action can be safer, and work efficiency improves. And also the finished goods release outside.
4) Use energy-saving motor to save 71% electricity power
Certifications

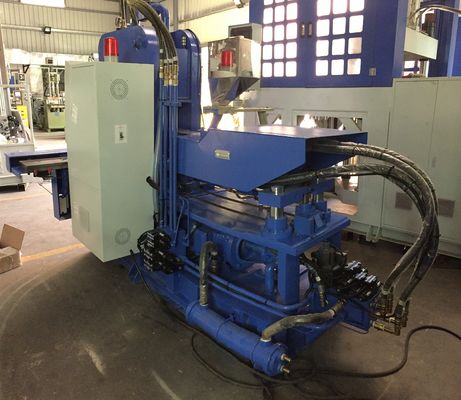

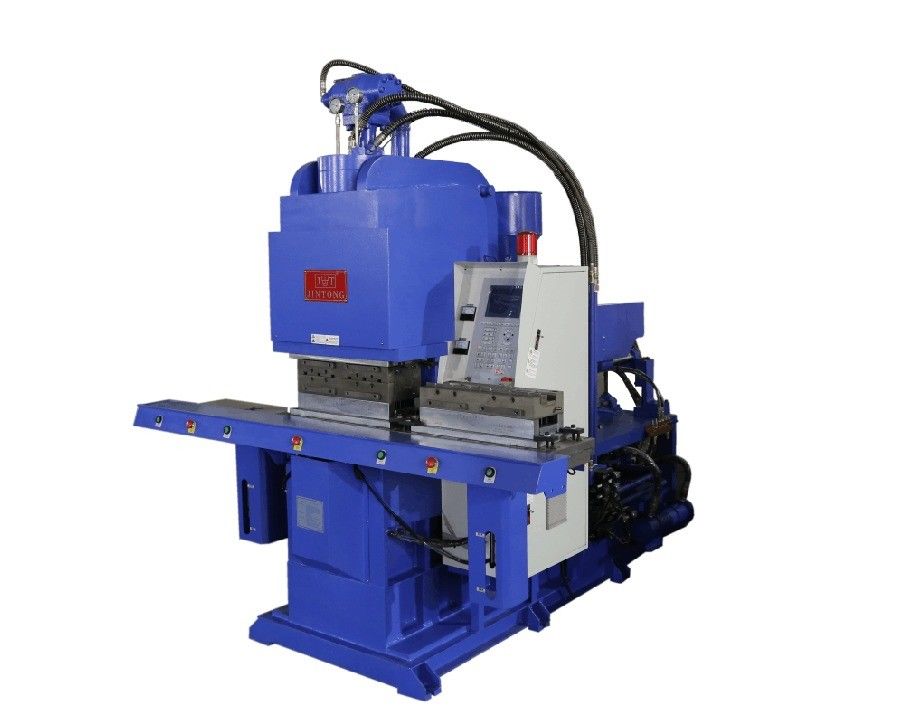

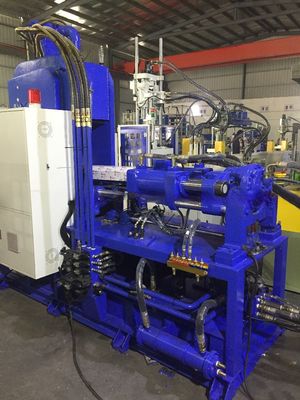

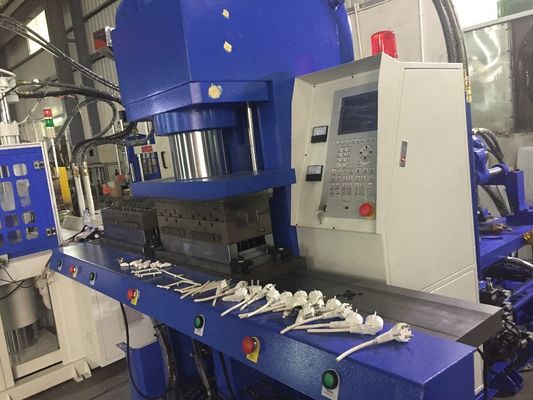

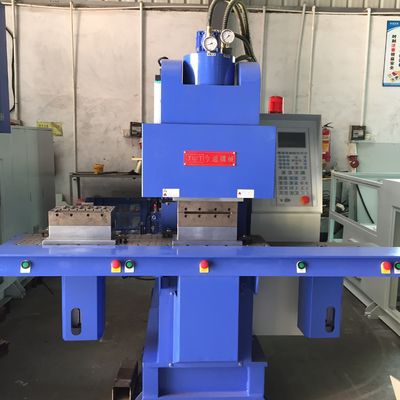

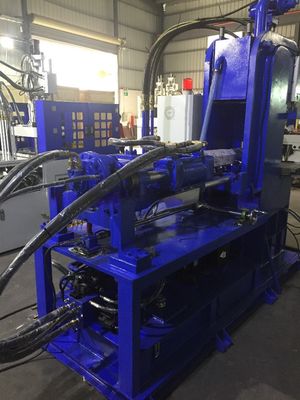

Detailed Images
Our Service
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
