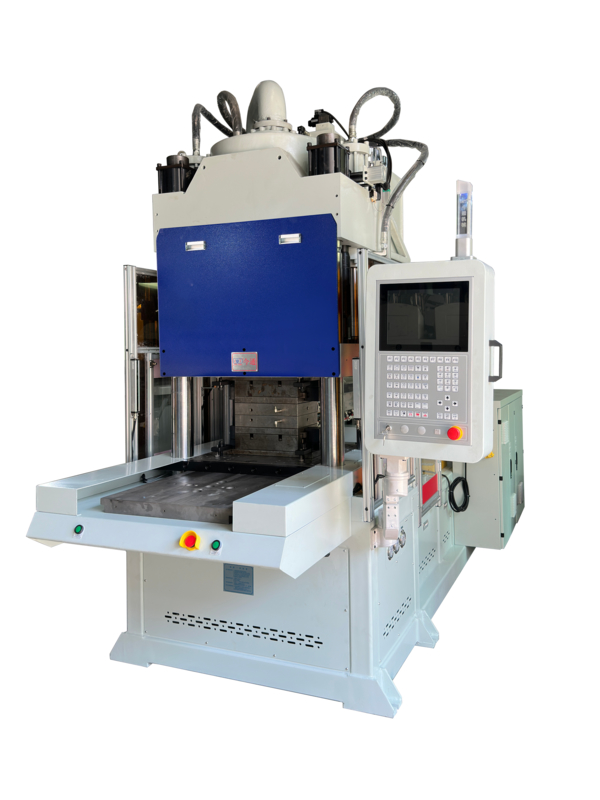

Golf Ball Vertical Injection Molding machine JTKR-2100D
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Certification: | ISO9001 CE |
| Model Number: | JTKR-2100D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | $65000.00 - $70000.00/pieces |
| Packaging Details: | plastic film |
| Delivery Time: | 55 days |
| Supply Ability: | 60 Piece/Pieces per Month |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Machine Type: | Hydraulic | Power (kW): | 36.3 KW |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, PLC, Pressure Vessel, Engine |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support | Clamping Force: | 220T |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Local Service Location: | United States, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Thailand, Malaysia, Australia, Colombia, Bangladesh, South Africa, Ukraine |
| Port: | SHENZHEN | ||
Product Description

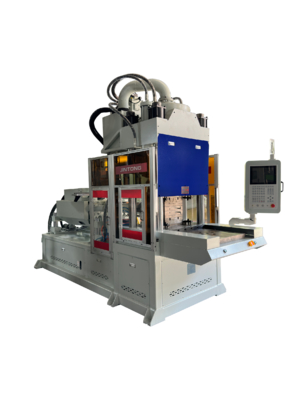

210T Golf Vertical Clamping Horizontal Injection Molding Machine JTKR-2100D
Clamping Force: 210T
Vertical clamping, horizontal injection
Easy to set torque , speed, deceleration distance and stand number segmentation
Energy-saving system
Single slide table
Main Features
1) vertical clamping, horizontal injection,
2) clamping force, injection weight and shot speed can be changed according to actual demand.
| UNIT | JTKR-2200 | ||
| INJECTION SYSTEM | screw diameter | mm | 65 |
| injection pressure | kg/cm2 | 1416 | |
| theoretical shot volume | cm3 | 1061 | |
| injection rate | cm3/sec | 71 | |
| screw stroke | mm | 180 | |
| screw speed | rpm | 0-160 | |
| nozzle contact force | tons | 6 | |
| temprature control number | - | 6 | |
| CLAMPING SYSTEM | clamping force | tons | 220 |
| opening force | tons | 18 | |
| distance between tie bar | mm | 1500*1300 | |
| min mould height | mm | 1200*1000 | |
| opening stroke | mm | 550 | |
| max open daylight | mm | 550 | |
| ejector force | tons | 1100 | |
| ejector stroke | mm | 7 | |
| OIL PRESSURE SYSTEM | max hydraulic pressure | kg/cm2 | 150 |
| pump output | L/min | 140 | |
| oil reservoir capacity | L | 800 | |
| cooling water consumption | /hr | 1500-2000 | |
| SERVO motor power | KW | 40 | |
| heating power | kw | 25 | |
| total power | kw | 65 | |
| OTHER | machine weight | tons | 17 |
| machine dimension | m | 4.4*1.75*3.5 | |
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
