Vertical Clamping Horizontal Injection Molding Machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Certification: | ISO9001 CE |
| Model Number: | JTKR-2500R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | $71000.00 - $75000.00/pieces |
| Packaging Details: | plastic film |
| Delivery Time: | 55 days |
| Supply Ability: | 60 Piece/Pieces per Month |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Machine Type: | Hydraulic | Power (kW): | 44.5kW |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, PLC, Pressure Vessel, Engine |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support | Clamping Force: | 250T |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Local Service Location: | United States, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Thailand, Malaysia, Australia, Colombia, Bangladesh, South Africa, Ukraine |
| Marketing Type: | Ordinary Product | Port: | SHENZHEN |
| Highlight: | Vertical Clamping Horizontal Injection Molding Machine,250T Horizontal Injection Molding Machine 44.5kW,Horizontal Injection Molding Machine 44.5kW |
||
Product Description

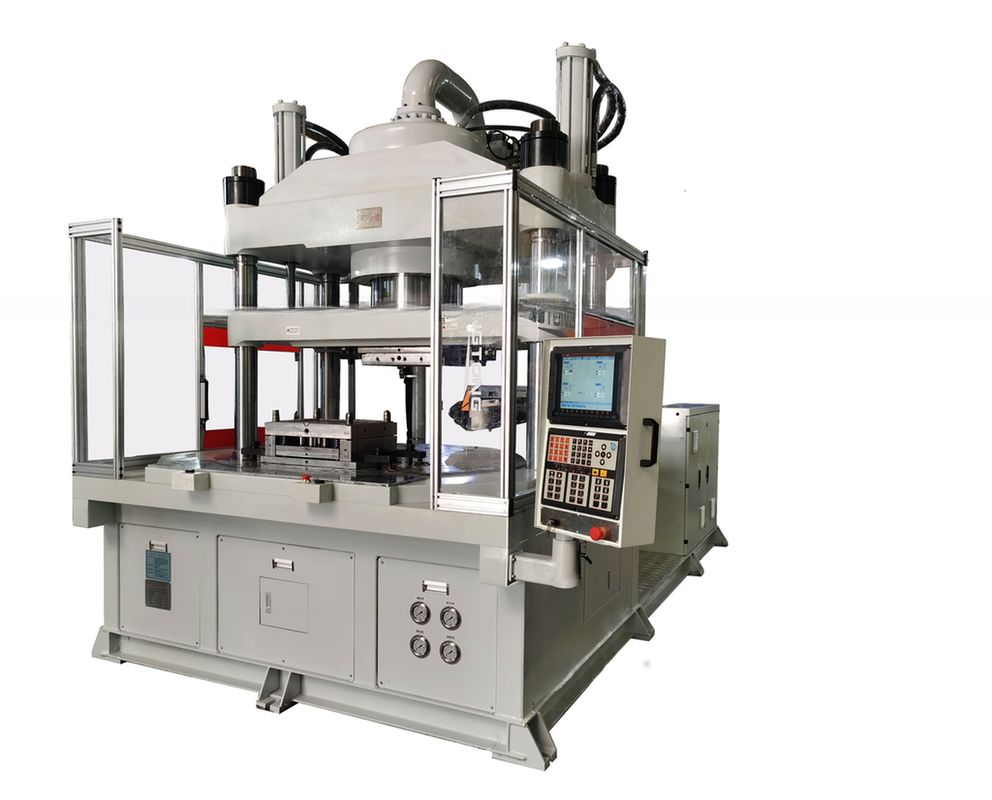

250T Vertical Clamping Horizontal Injection Molding Machine
250T vertical clamping horizontal Injection Molding Machine
Clamping Force: 250T
Injection Weight: 1200g
Vertical clamping, horizontal injection
Easy to set torque , speed, deceleration distance and stand number segmentation
Energy-saving system
Main Features
1) vertical clamping, horizontal injection,
2) clamping force, injection weight and shot speed can be changed according to actual demand.
| UNIT | JTKR-2500R | ||
| INJECTION SYSTEM | screw diameter | mm | 55 60 65 70 |
| injection pressure | kg/cm2 | 1979 1663 1416 1221 | |
| theoretical shot volume | cm3 | 698 820 962 1116 | |
| injection rate | cm3/sec | 238 283 312 385 | |
| screw stroke | mm | 290 | |
| screw speed | rpm | 0-250 | |
| temprature control number | - | 6 | |
| CLAMPING SYSTEM | clamping force | tons | 250 |
| opening force | tons | 22.2 | |
| min mould height | mm | 300 | |
| opening stroke | mm | 400 | |
| max open daylight | mm | 700 | |
| rotary table size | mm | 1500 | |
| distance between tie bar | mm | 630*630 | |
| nozzle center height | mm | 150±50 | |
| min distance between nozzle and mold shot gate | mm | 160 | |
| ejector force | tons | 5.1 | |
| ejector stroke | mm | 80 | |
| OIL PRESSURE SYSTEM | max hydraulic pressure | kg/cm2 | 140 |
| pump output | L/min | 200 | |
| oil reservoir capacity | L | 500 | |
| cooling water consumption | /hr | 1200-1600 | |
| pump motor power | KW | 30 | |
| heating power | kw | 14.5 | |
| total power | kw | 44.5 | |
| OTHER | machine weight | tons | 17.2 |
| machine dimension | m | 5.5*2.5*3.2 | |
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
