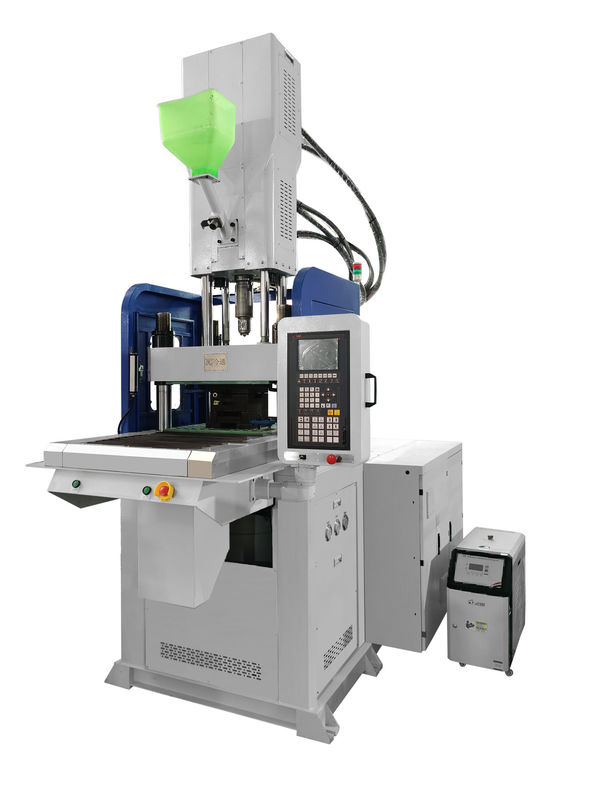

120T Single Slide Table Semi Automatic Injection Molding Machine For TPU / TPE
Product Details:
| Place of Origin: | DONGGUAN |
| Brand Name: | JINTONG |
| Certification: | CE ISO |
| Model Number: | JTT-1200D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD22000-25000 |
| Packaging Details: | plywood case |
| Delivery Time: | 35-45 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 60PCS/MONTH |
|
Detail Information |
|||
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support, Video Technical Support |
|---|---|---|---|
| Power(w): | 16.6kw | Automatic: | Yes, Semi-auto |
| Style: | Vertical | Plastic Type: | Termoplastic |
| Injection Weight: | 373 | Clamping Force: | 120T |
| Warranty: | 1 Year Free Spare Parts, Life-spen Service | Voltage: | 380V |
| Color: | CUSTOMIZED | Keyword: | TPU/TPE Injection Molding Machine, Single Table |
| Highlight: | 120T semi auto injection moulding machine,Single Slide Table vertical injection machine,TPU / TPE vertical plastic injection machine |
||
Product Description
120T single slide table TPU/TPE vertical injection molding machine JTT-1200D
clamping force:120T
injection weight: 373
Vertical clamping, vertical injection
D—single slide table(one up die and one low die)
Single slide table offer operation convenience
Optional saving energy motor
Fixed low die and movable up die to avoid insert part shift; oil hydraulic unit under low die to ejector finshed products; ejector speed and stroke adjusted by actual demand
Combined with conveyor system used on production line
| Model | JTT-1200D | ||
| injection system | Screw Diameter | mm | 35 40 45 50 |
| Injection Pressure | kg/cm2 | 2577 1973 1559 1263 | |
| Theoretical Shot Volume | cm3 | 173 226 286 353 | |
| Injection Rate | cm3/sec | 87 114 144 177 | |
| Screw Stroke | mm | 180 | |
| Screw Speed | rpm | 0-180 | |
| Nozzle Contact Force | tons | 3.3 | |
| Nozzle Stroke | mm | 300 | |
| Number of Temperature Control | - | 5 | |
| Hopper Capacity | L | 30 | |
| clamping system | Clamping Force | tons | 120 |
| Opening Force | tons | 15 | |
| Platen Size | mm | 840*500 | |
| Distance Between Tie Bar | mm | 620*280 | |
| Min Mold Height | mm | 250/200 | |
| Opening Stroke | mm | 250 | |
| Max Open Daylight | mm | 500/450 | |
| Ejector Force | tons | 3.3 | |
| Ejector Stroke | mm | 75 | |
| sliding system | Slide Stroke | mm | 540 |
| Max Mold Weight | kg | 300 | |
| Station Clearance | mm | ±0.02 | |
| oil pressure system | Max Hydraulic Pressure | kg/cm2 | 140 |
| Pump Output | L/min | 96 | |
| Oil Reservior Capacity | L | 200 | |
| Cooling Water Consumption | /hr | 1500-1800 | |
| Pump Moter Power | KW | 14.7 | |
| Barrel Heating Power | kw | 7.5 | |
| Total Power | kw | 22.2 | |
| other | Machine Weight | tons | 5.2 |
| Machine Dimension | m | 2.42*1.38*2.98 | |
