Customizable 45T Plastic Fan Injection Molding Machine Vertical
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG injection machine |
| Model Number: | JTT-450D |
Payment & Shipping Terms:
| Price: | $12,000.00 - $14,000.00/pieces |
|---|---|
| Packaging Details: | plywood for plastic fan injection molding machine 45T |
| Supply Ability: | 60 Piece/Pieces per Month plastic fan injection molding machine 45 |
|
Detail Information |
|||
| Plastic Processed: | ABS | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 80 |
| Mold Height(mm): | 85 - 310 Mm | Ejector Number: | 1 |
| Ejector Stroke(mm): | 45 Mm | Ejector Force(kN): | 13 KN |
| Theoretical Shot Volume(cm³): | 115 Cm³ | Injection Rate (g/s): | 71 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 105 G |
| Screw Speed (rpm): | 1 - 205 Rpm | Screw Diameter (mm): | 35 Mm |
| Screw L/D Ratio: | 25 | Distance Between Tie Bars: | 410mm |
| Weight (KG): | 2000 Kg | Type: | Other |
| Open Stroke(mm): | 350 Mm | Power (kW): | 9 KW |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, PLC, Pressure Vessel |
| Product Name: | Plastic Injection Molding Machine 45T | Screw Diameter: | 30 35 |
| Machine Color: | Grey Blue Yellow Green | After-sales Service Provided: | Online Support |
| After Warranty Service: | Video Technical Support | Marketing Type: | Ordinary Product |
| Port: | Shenzhen | ||
| Highlight: | Plastic Fan Injection Molding Machine Vertical,45T Plastic Fan Injection Molding Machine |
||
Product Description
Customizable 45T Plastic Fan Injection Molding Machine For Your Production Needs
Product Description

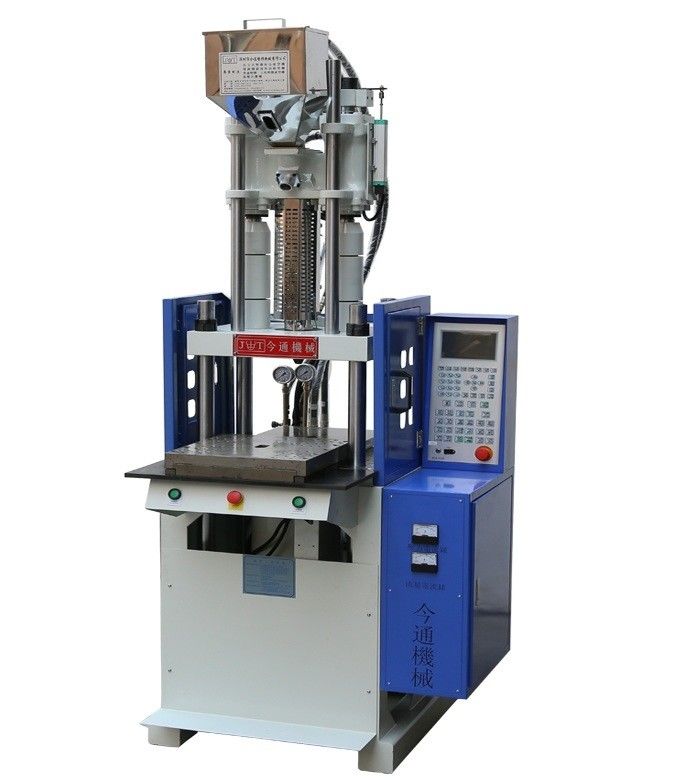

plastic fan injection molding machine 45T JTT-450D
Clamping Force: 45T
Injection Weight: 54-105g
Vertical clamping, vertical injection
D-single slide table(one up die and one low die)
Single slide table offer operation convenience
Optional saving energy motor
Fixed low die and movable up die to avoid insert part shift; oil hydraulic unit under low die to ejector finshed products; ejector speed and stroke adjusted by actual demand
Combined with conveyor system used on production line
Main Features
With lower mold can slid out towards operation direction, inserts, placed parts and finished products are all finished outside the clamping unit. It works safely and suits for those inserts that are hard to place.
Suitable for all kinds of insert molding.
Nitrided steel screw and barrel, directly driven by high torque motor, with multi stages injection pressure, better plasticization.
Vertical compression clamping system, closing mold with high speed lower pressure as well as multi pressure control and prolong mold using life.
Electric protection device can not happen wrong action and maintain the operators safety.
Auto life injection base, it is easy for replacement of material and mold.
Certifications
Detailed Images
Our Service
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
