55T TPU Injection Molding Machine Vertical For TPU Electronic Component Manufacturing
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Certification: | ISO9001 CE |
| Model Number: | JTT-550D HS |
Payment & Shipping Terms:
| Price: | $16,000.00 - $20,000.00/pieces |
|---|---|
| Packaging Details: | plastic film packing for electronic component TPU vertical injection molding machine 55T |
| Supply Ability: | 600 Piece/Pieces per Month electronic component TPU vertical injection molding machine 55T |
|
Detail Information |
|||
| Plastic Processed: | TPU | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Ejector Stroke(mm): | 45 Mm |
| Ejector Force(kN): | 1.3 KN | Theoretical Shot Volume(cm³): | 176 Cm³ |
| Injection Rate (g/s): | 200 G/s | Machine Type: | Hydraulic |
| Injection Weight (g): | 160 G | Screw Diameter (mm): | 40 Mm |
| Distance Between Tie Bars: | 460mm | Weight (KG): | 2100 |
| Type: | Other | Open Stroke(mm): | 500 Mm |
| Power (kW): | 13 KW | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | None | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Pump, PLC, Pressure Vessel | Injection Weight: | 90-160G |
| Injection Rate: | 51-90CM3/S | Opening Stroke: | 200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support | Screw Diameter: | 30cm 35cm 40cm |
| Screw Stroke: | 140mm | Product Name: | Electronic Component TPU Vertical Injection Molding MachineJTT-550 HS |
| Opening Force: | 13.5T | Platen Size: | 650*490mm |
| Max Daylight: | 460/400mm | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Local Service Location: | Turkey, United States, France, Viet Nam, Philippines, Brazil, Peru, South Africa, Ukraine | Marketing Type: | Ordinary Product |
| Port: | SHENZHEN | ||
| Highlight: | 55T TPU Injection Molding Machine,TPU Injection Molding Machine Vertical |
||
Product Description

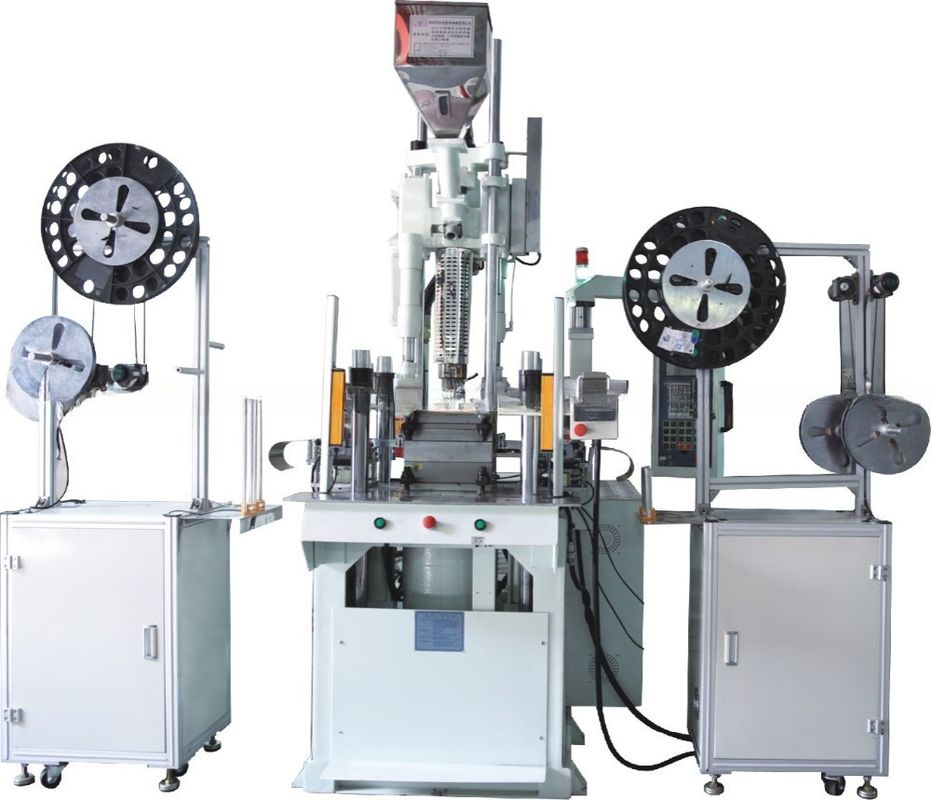

55T VERTICAL TPU Injection Molding Machine For TPU Electronic Component Manufacturing
Electronic component TPU verticao injection molding machine 55T JTT-550D HS
Clamping Force: 55T
Max Injection Weight: 160g
Vertical clamping with four-column, vertical injection
High speed: use ACC nitrogen storage device, and max injection rate is 800mm/s
Complete closed-loop: use Rexroth high frequency servo valve and DPQ injection digital control card during process of injection, pressure, back-pressure, to achieve complete closed-loop during operation
High precision: tolerance for injection location is only ±0.1mm
Selectable standard type, sliding type or rotary type
Optional energy-saving motor
Main Features
With lower mold can slid out towards operation direction, inserts, placed parts and finished products are all finished outside the clamping unit. It works safely and suits for those inserts that are hard to place.

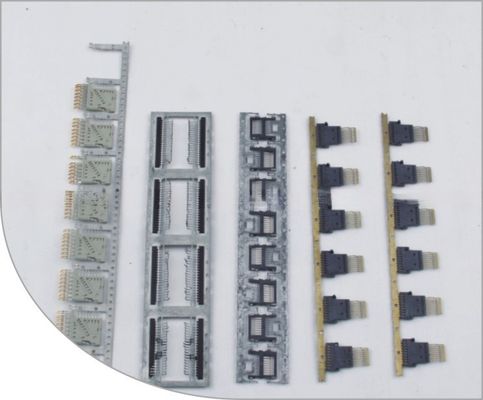

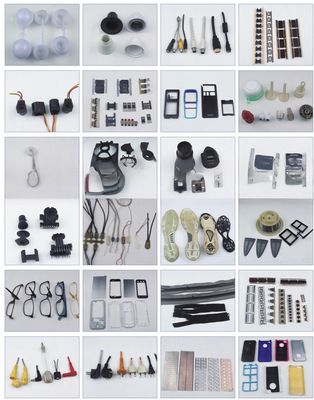

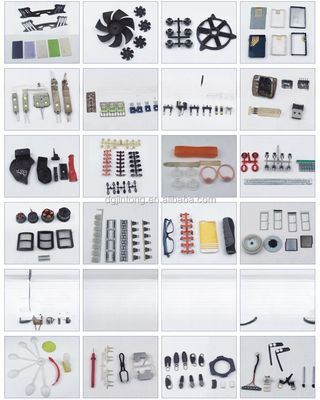

Suitable for all kinds of insert molding.
Nitrided steel screw and barrel, directly driven by high torque motor, with multi stages injection pressure, better plasticization.
Vertical compression clamping system, closing mold with high speed lower pressure as well as multi pressure control and prolong mold using life.
Electric protection device can not happen wrong action and maintain the operators safety.
Auto life injection base, it is easy for replacement of material and mold.
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
