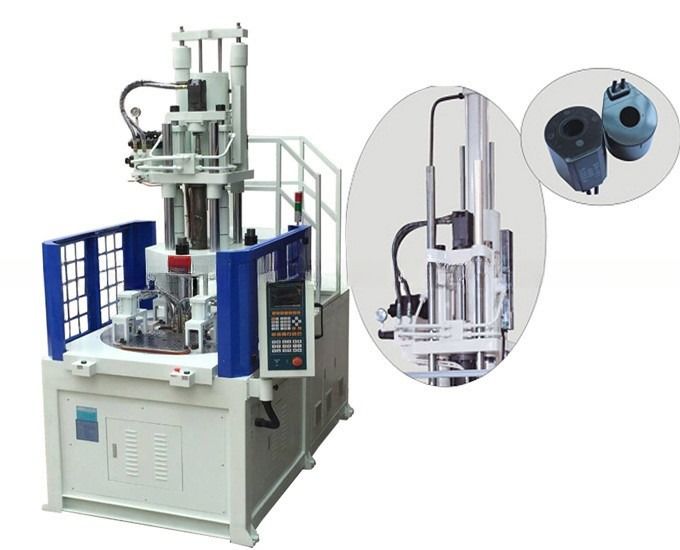

1 Ejector Hydraulic BMC Injection Molding Machine Vertical JTT-550 For Precise Production
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-550 BMC |
Payment & Shipping Terms:
| Price: | $40,000.00 - $50,000.00/pieces |
|---|---|
| Packaging Details: | plastic film packing for BMC bakelite Injection Molding Machine JTT-550 BMC |
| Supply Ability: | 600 Piece/Pieces per Month BMC bakelite Injection Molding Machine JTT-550 BMC |
|
Detail Information |
|||
| Plastic Processed: | BMC | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 200 |
| Mold Height(mm): | 210 - 400 Mm | Ejector Number: | 1 |
| Ejector Stroke(mm): | 45 Mm | Ejector Force(kN): | 13 KN |
| Theoretical Shot Volume(cm³): | 176 Cm³ | Injection Rate (g/s): | 90 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 160 G |
| Screw Speed (rpm): | 0 - 215 Rpm | Screw Diameter (mm): | 40 Mm |
| Screw L/D Ratio: | 25 | Distance Between Tie Bars: | 510MM |
| Weight (KG): | 2300 Kg | Type: | Other |
| Open Stroke(mm): | 400 Mm | Power (kW): | 12 KW |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, PLC, Pressure Vessel |
| Injection Weight: | 80-141G | Injection Rate: | 64-113CM3/S |
| Opening Stroke: | 250MM | Screw Diameter: | 30mm 35mm 40mm |
| Screw Stroke: | 135mm | Product Name: | BMC Bakelite Injection Molding Machine JTT-550 BMC |
| Rotary Table Diameter: | 1080mm | Mold Size: | 450*325mm |
| Max Daylight: | 450/510mm | After Warranty Service: | Video Technical Support |
| Port: | SHENZHEN | ||
| Highlight: | 1 Ejector Hydraulic BMC Injection Molding Machine,Hydraulic Injection Molding Machine Vertical |
||
Product Description
1 Ejector Hydraulic BMC Injection Molding Machine JTT-550 For Precise Production
BMC bakelite Injection Molding Machine JTT-550 BMC
Clamping Force: 55T
Injection Weight: 80-141g
Vertical clamping, vertical injection, easy to put insert parts
Sandwich like platen design, including adiabatic cold water plate and insulating glass fiber board to betterment life span, improve stablity and reduce waste
Selectable mold heating electric temperature control
Selectable single slide table, double slide table, rotary table to improve productivity
Selectable servo energy-saving motor
Main Features
Vertical clamping, vertical injection
Easy to set torque , speed, deceleration distance and stand number segmentation
Computer programme control rotary table direction , forward-rotating, reverse-rotating, forward and reverse alternative rotating.
Optional energy-saving motor
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
