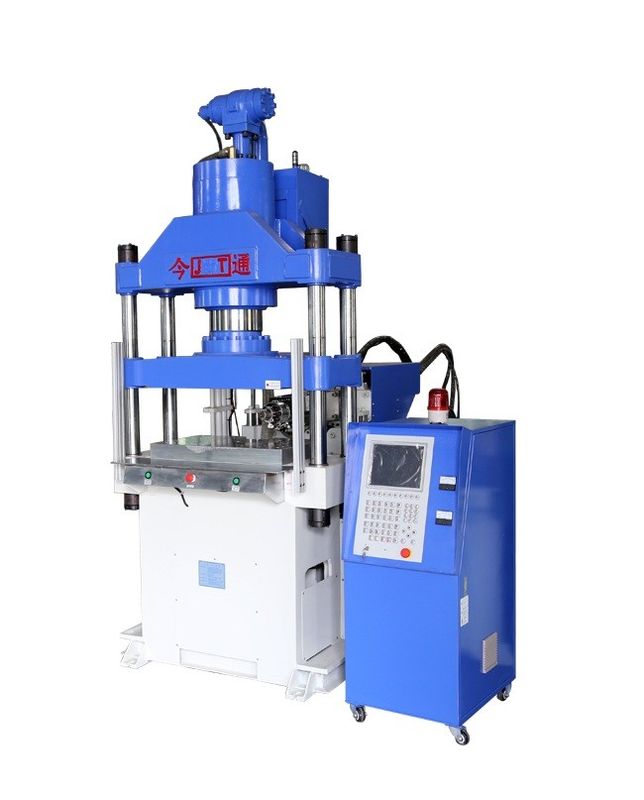

225T Vertical Clamping Horizontal Injection Molding Machine ISO9001 Approved
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Certification: | ISO9001 CE |
| Model Number: | JTKR-2250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | $69000.00 - $73000.00/pieces |
| Packaging Details: | plastic film |
| Delivery Time: | 55 days |
| Supply Ability: | 60 Piece/Pieces per Month |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Machine Type: | Hydraulic | Power (kW): | 36.3 KW |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, PLC, Pressure Vessel, Engine |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support | Clamping Force: | 225T |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Local Service Location: | United States, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Thailand, Malaysia, Australia, Colombia, Bangladesh, South Africa, Ukraine |
| Marketing Type: | Ordinary Product | Port: | SHENZHEN |
| Highlight: | 225T Vertical Clamping Horizontal Injection Molding Machine,Vertical Clamping Horizontal Injection Molding Machine ISO9001 |
||
Product Description
225T Vertical Clamping Horizontal Injection Molding Machine
225T vertical clamping horizontal Injection Molding Machine
Clamping Force: 225T
Vertical clamping, horizontal injection
Easy to set torque , speed, deceleration distance and stand number segmentation
Energy-saving system
Main Features
1) vertical clamping, horizontal injection,
2) clamping force, injection weight and shot speed can be changed according to actual demand.
| UNIT | JTKR-2250 | |||
| INJECTION SYSTEM | screw diameter | mm | 62 | 70 |
| injection pressure | kg/cm2 | 1748 | 1371 | |
| theoretical shot volume | cm3 | 724 | 923 | |
| shot weight | g | 658 | 840 | |
| injection rate | cm3/sec | 220 | 280 | |
| screw stroke | mm | 240 | ||
| screw speed | rpm | 0-142 | ||
| nozzle contact force | tons | 6.7 | ||
| nozzle stroke | mm | 300 | ||
| temprature control number | - | 5 | ||
| hopper capacity | L | 90 | ||
| CLAMPING SYSTEM | clamping force | tons | 225 | |
| opening force | tons | 34 | ||
| platen size | mm | 900x1130 | ||
| distance between tie bar | mm | 730x500 | ||
| min mould height | mm | 310 | ||
| opening stroke | mm | 350 | ||
| max open daylight | mm | 660 | ||
| ejector force | tons | 6 | ||
| ejector stroke | mm | 45 | ||
| OIL PRESSURE SYSTEM | max hydraulic pressure | kg/cm2 | 175 | |
| pump output | L/min | 132 | ||
| oil reservoir capacity | L | 650 | ||
| cooling water consumption | /hr | 1800~2000 | ||
| pump motor power | KW | 22 | ||
| heating power | kw | 14.3 | ||
| total power | kw | 36.3 | ||
| OTHER | machine weight | tons | 12 | |
| machine dimension | m | 4.7x3.0x3.6 | ||
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
